Steering Outer Socket and Inner Socket

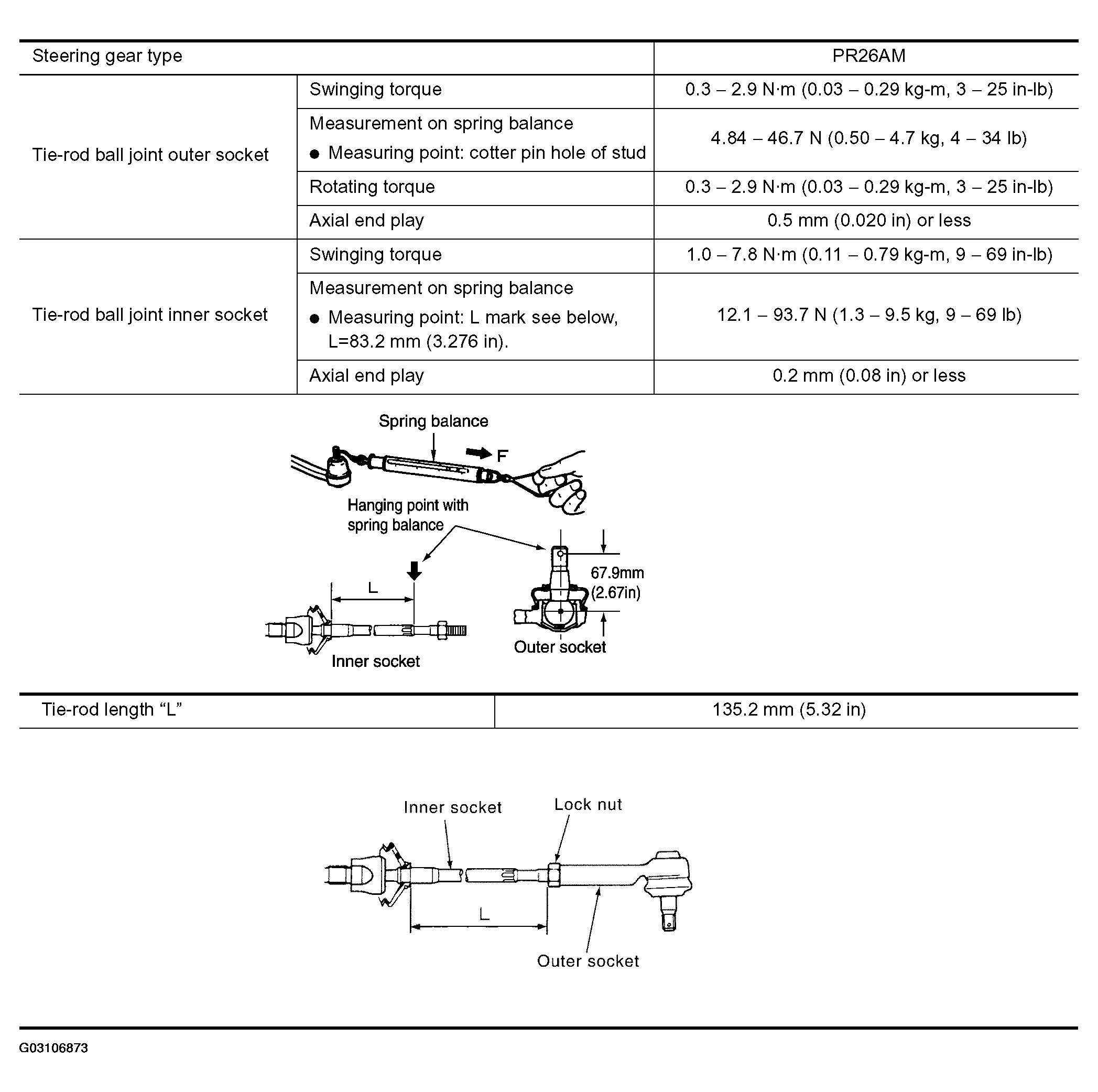

Fig 1: Steering Outer Socket and Inner Socket Specification

G03106873

Courtesy of NISSAN MOTOR CO., U.S.A.
