Work Steps

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

When removing instrument panel and pad, combination meter, console assembly, or steering member take steps in the order shown in Fig 1.

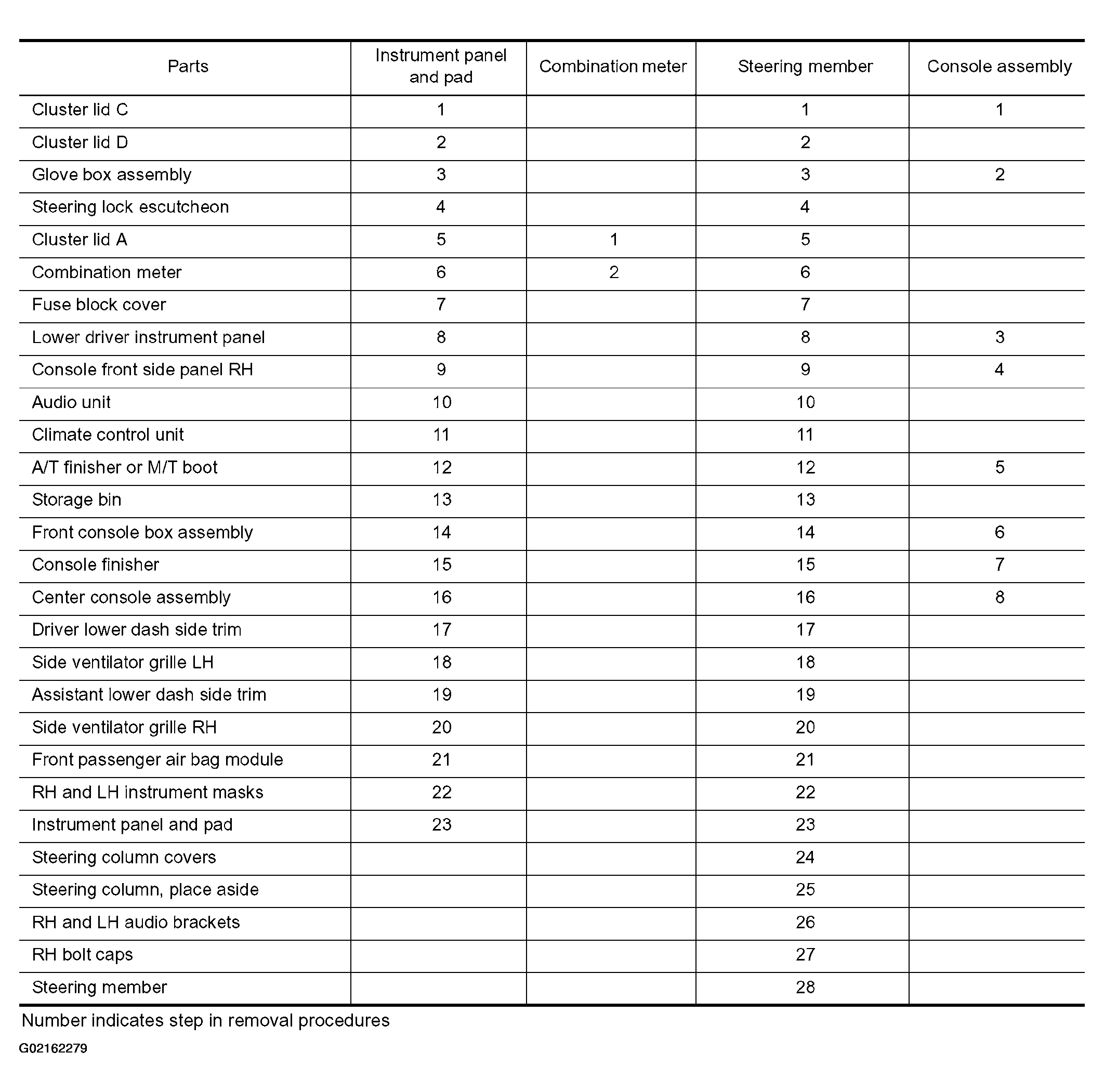

Fig 1: Assembly Removal And Installation Work Steps Table
G02162279Courtesy of NISSAN MOTOR CO., U.S.A.
