Disassembly And Assembly: Inspection

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Clean up the disassembled parts. Then, inspect if the parts are wear or damaged. If so, follow the measures below.

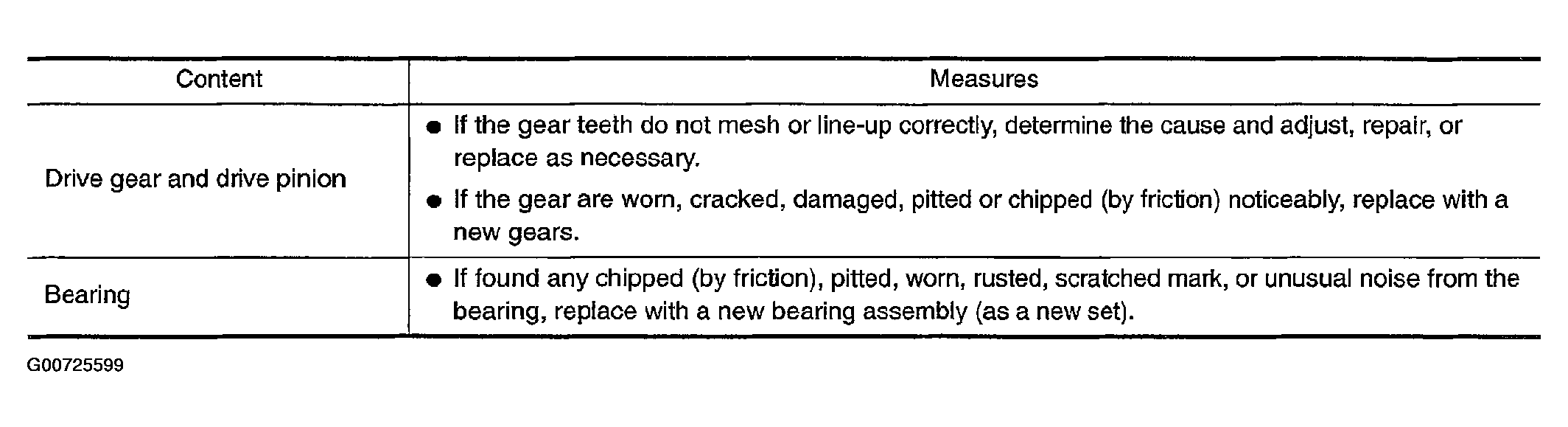

Fig 1: Displaying Measures For Wear Or Damaged Parts (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

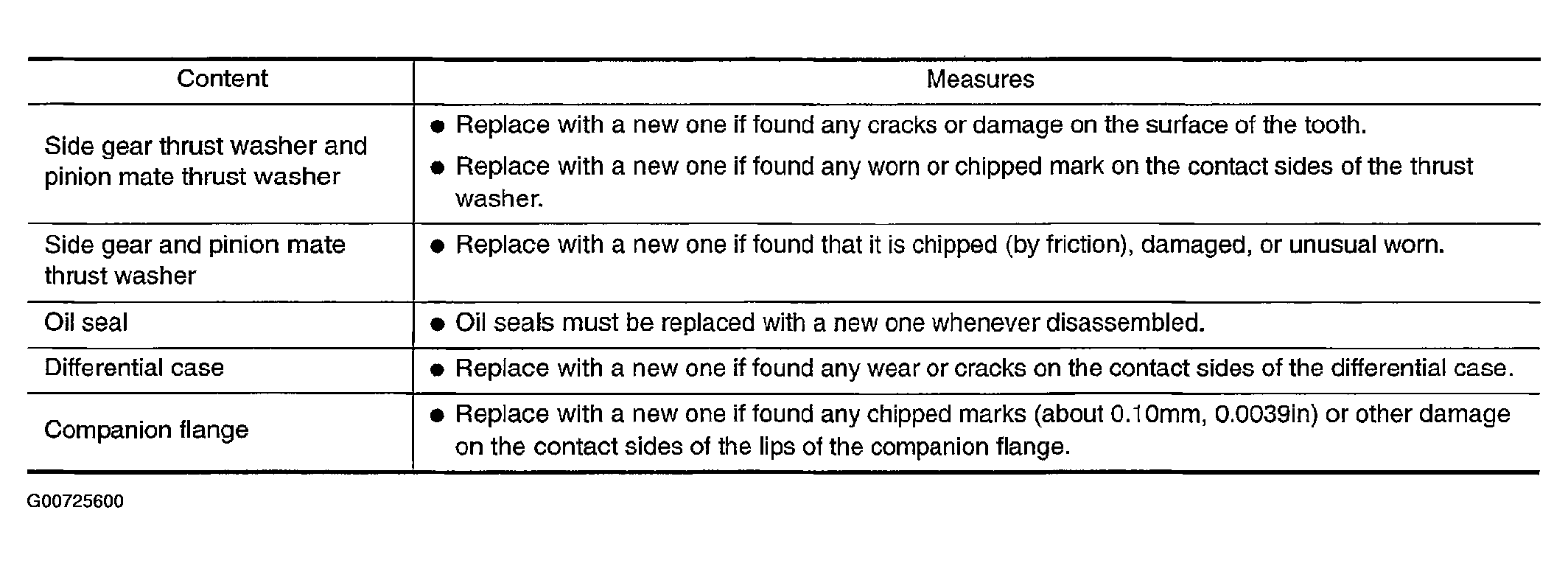

Fig 2: Displaying Measures For Wear Or Damaged Parts (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
