Assembly Of Differential Case Assembly

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Install pinion mate shaft lock pin with a punch.
Make sure lock pin is flush with case.

NOTE: Do not reuse the lock pin. Always replace the lock pin with a new one.

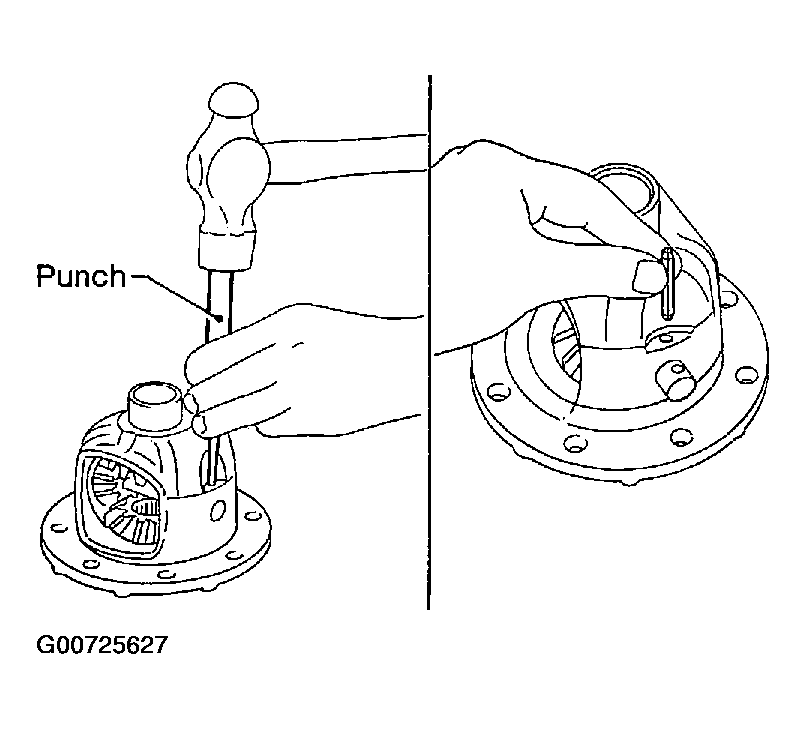

Fig 1: Installing Pinion Mate Shaft Lock Pin
Courtesy of NISSAN MOTOR CO., U.S.A.
Place differential case on drive gear.
Apply genuine medium strength locking sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS to drive gear bolts, and install them.
NOTE:
Do not reuse the bolts. Always replace the bolts with a new one.
- Tighten bolts in a crisscross fashion.
- After tightening the bolt to the specified torque, turn the bolt 31 to 36 more degrees.

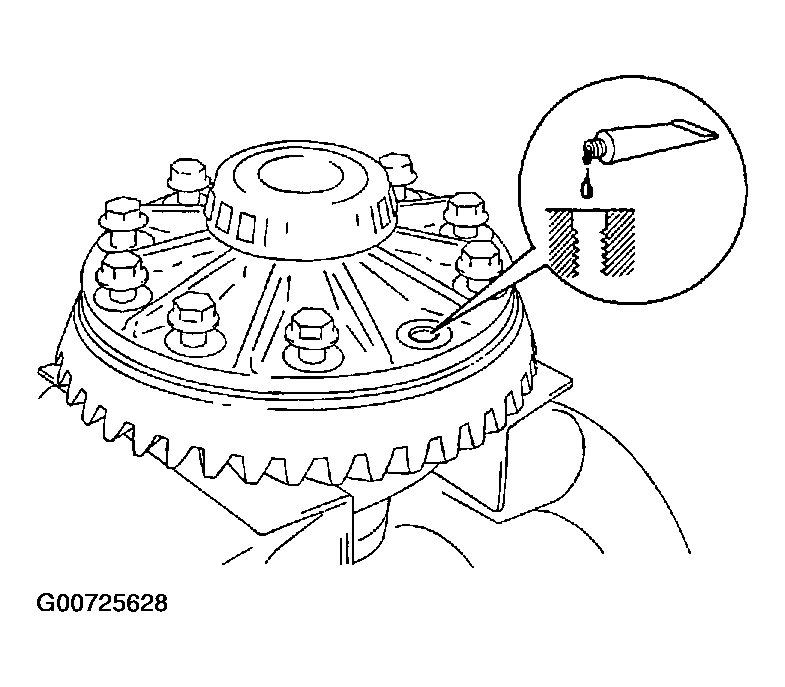

  Fig 2: Applying Locking Sealant
  Courtesy of NISSAN MOTOR CO., U.S.A.

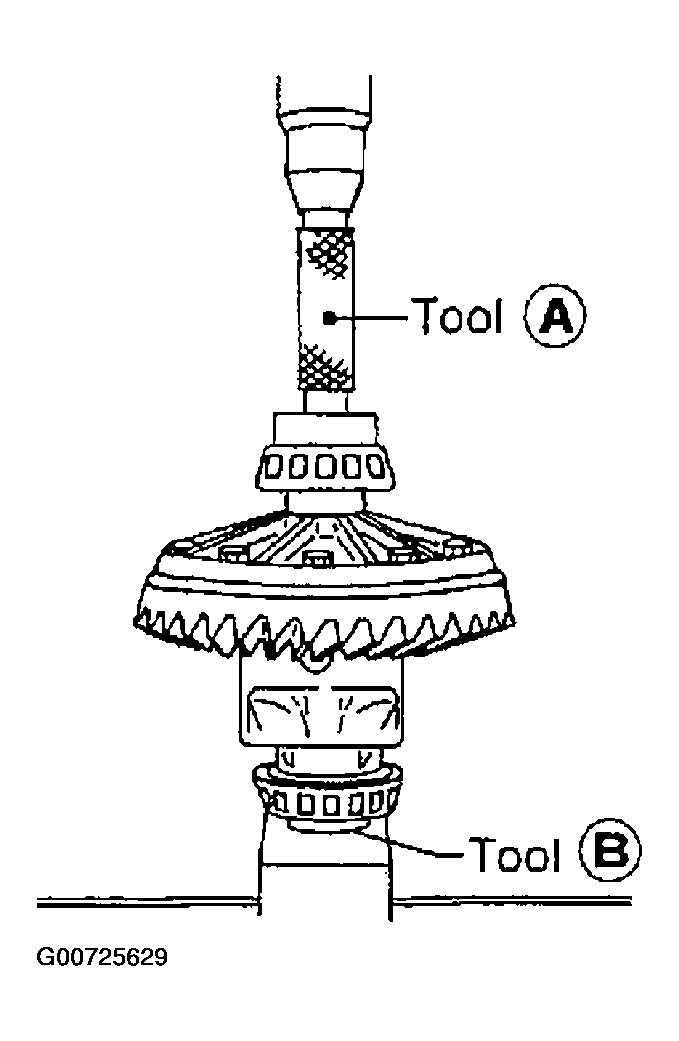

Press-fit side bearing inner race on differential case with tool.
1. Tool number
  1. A : KV38100300 (J-25523)
  2. B : ST33061000 (J-8107-2)
