On-Board Diagnosis Logic

For DTC P2135 on-board diagnosis logic, see Fig 1.

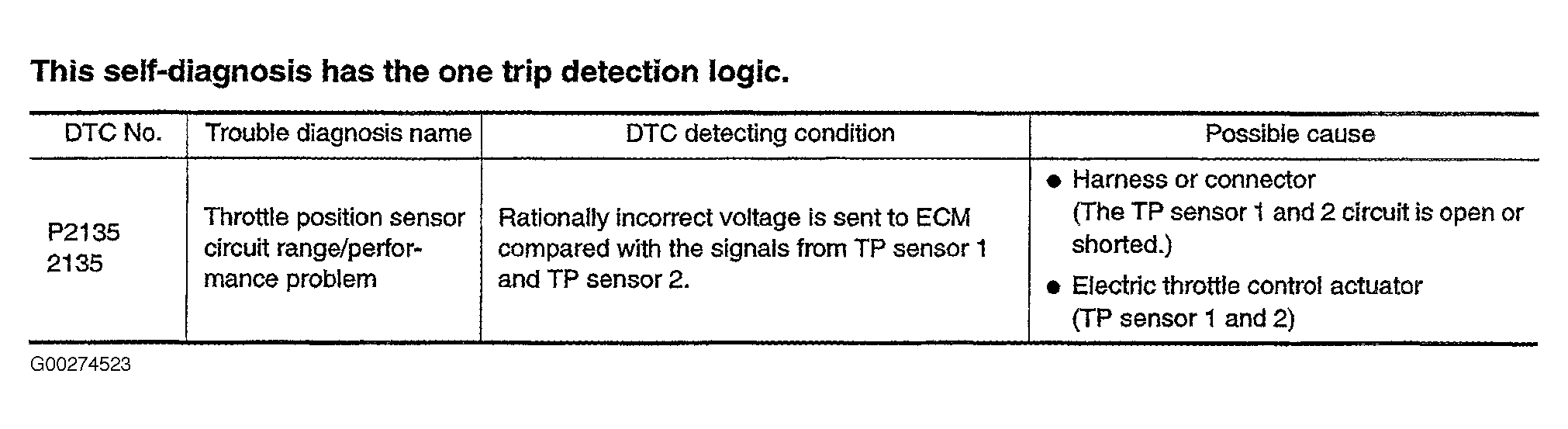

Fig 1: Identifying DTC P2135 On-Board Diagnosis Logic

G00274523

Courtesy of NISSAN MOTOR CO., U.S.A.
