Data Monitor Mode Reference Values

For EVAP canister vent control valve circuit specification data, see Fig 1.

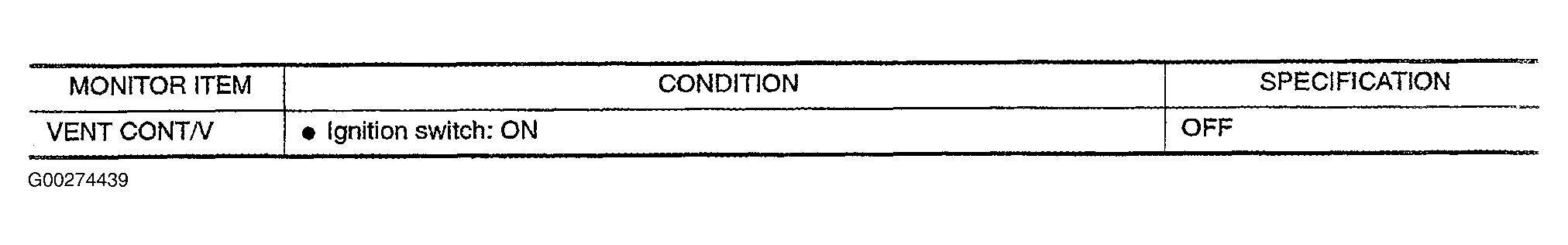

Fig 1: Identifying EVAP Canister Vent Control Valve Circuit Specification Data
G00274439Courtesy of NISSAN MOTOR CO., U.S.A.
