On-Board Diagnosis Logic

For DTC P1124 and P1126 on-board diagnosis logic, see Fig 1.

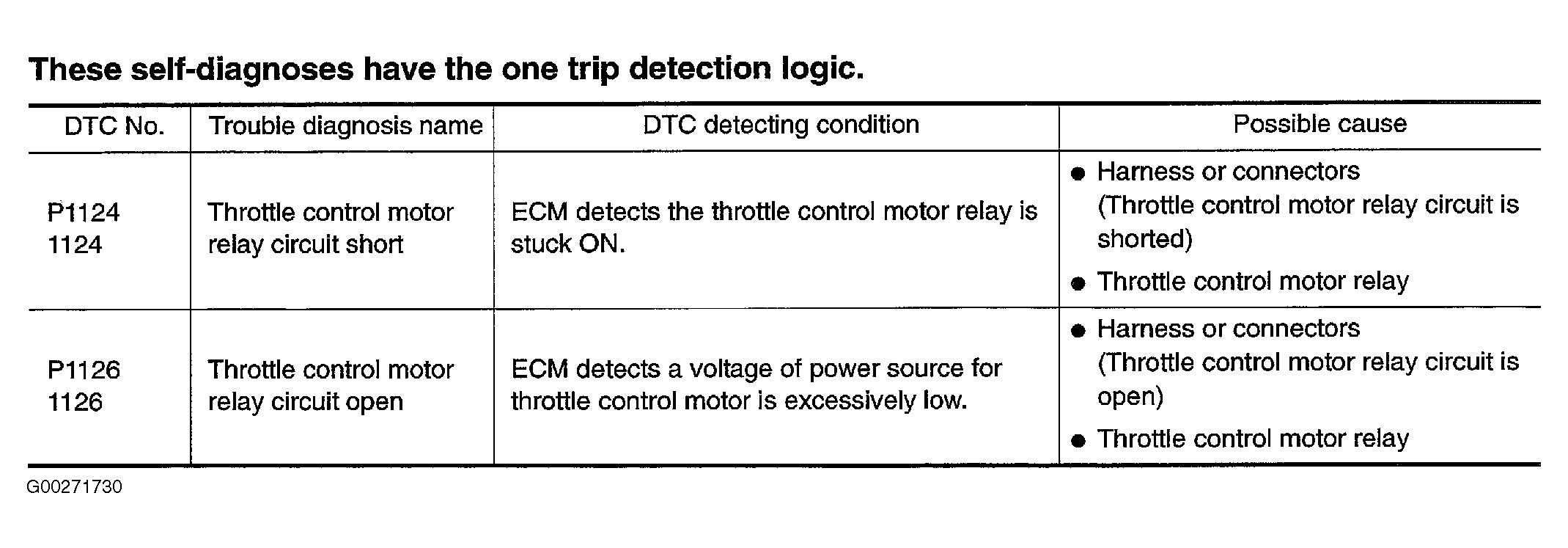

Fig 1: DTCs P1124 & P1126 On-Board Diagnosis Logic

G00271730

Courtesy of NISSAN MOTOR CO., U.S.A.
