Component Inspection

For power steering pressure sensor testing, see Fig 1.

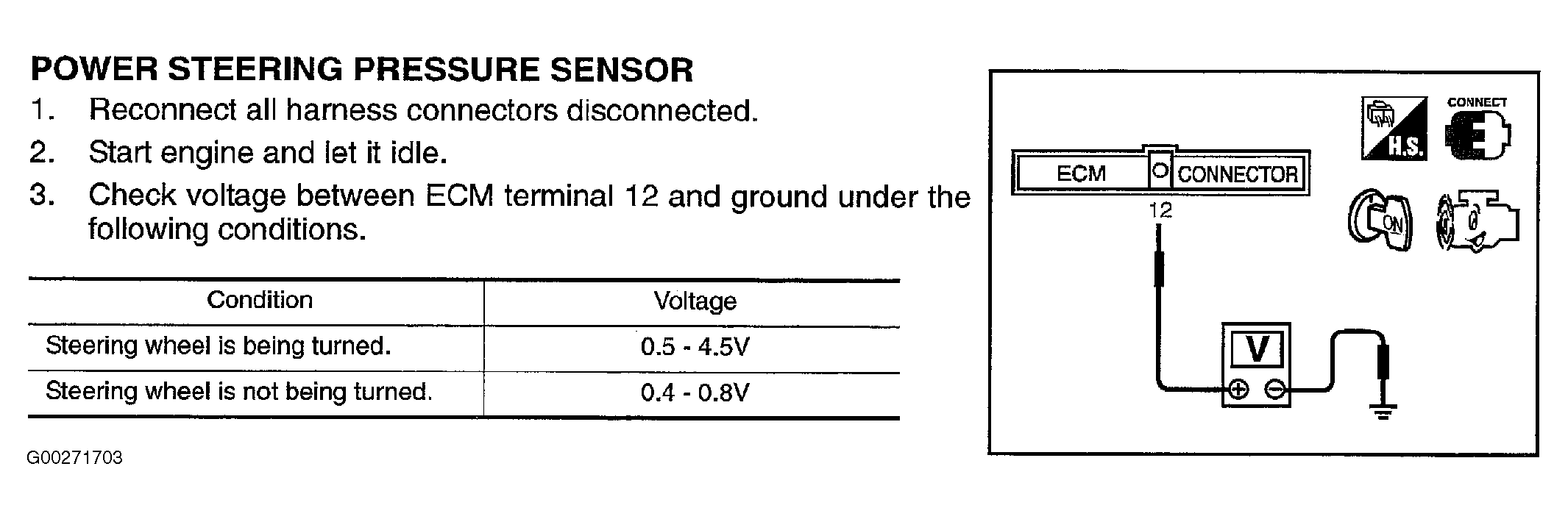

Fig 1: Testing Power Steering Pressure Switch

G00271703

Courtesy of NISSAN MOTOR CO., U.S.A.
