On-Board Diagnosis Logic

Under normal conditions (non-closed throttle), sensor output voltage indicates if pressure drop and purge flow are adequate. If not, a malfunction is determined. For DTC P0441 on-board diagnosis logic, see Fig 1.

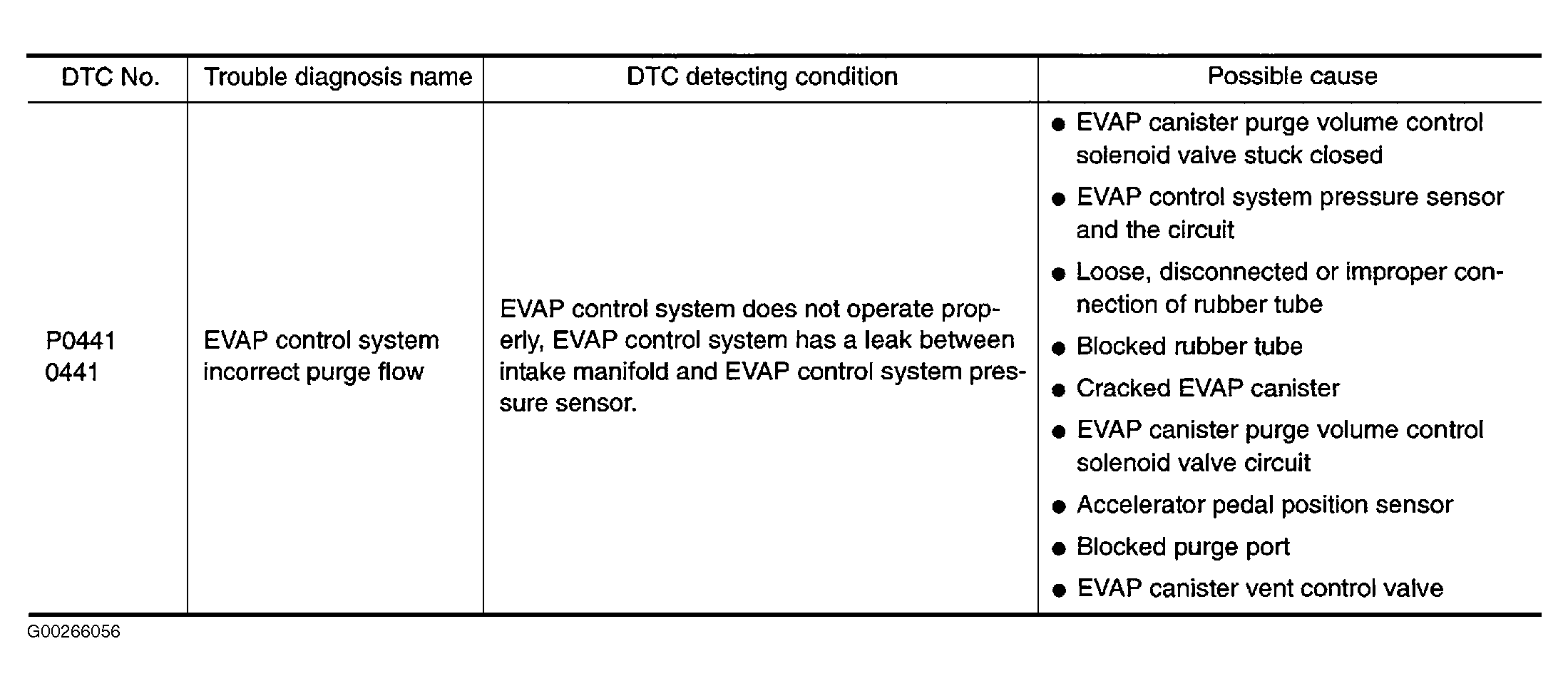

Fig 1: DTC P0441 On-Board Diagnosis Logic

Courtesy of NISSAN MOTOR CO., U.S.A.
