Home >> Infiniti >> 2003 >> FX35 AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P0182: Fuel Tank Temperature Sensor Circuit Low Input & DTC P0183: Fuel Tank Temperature Sensor Circuit High Input >> Component Inspection

Component Inspection

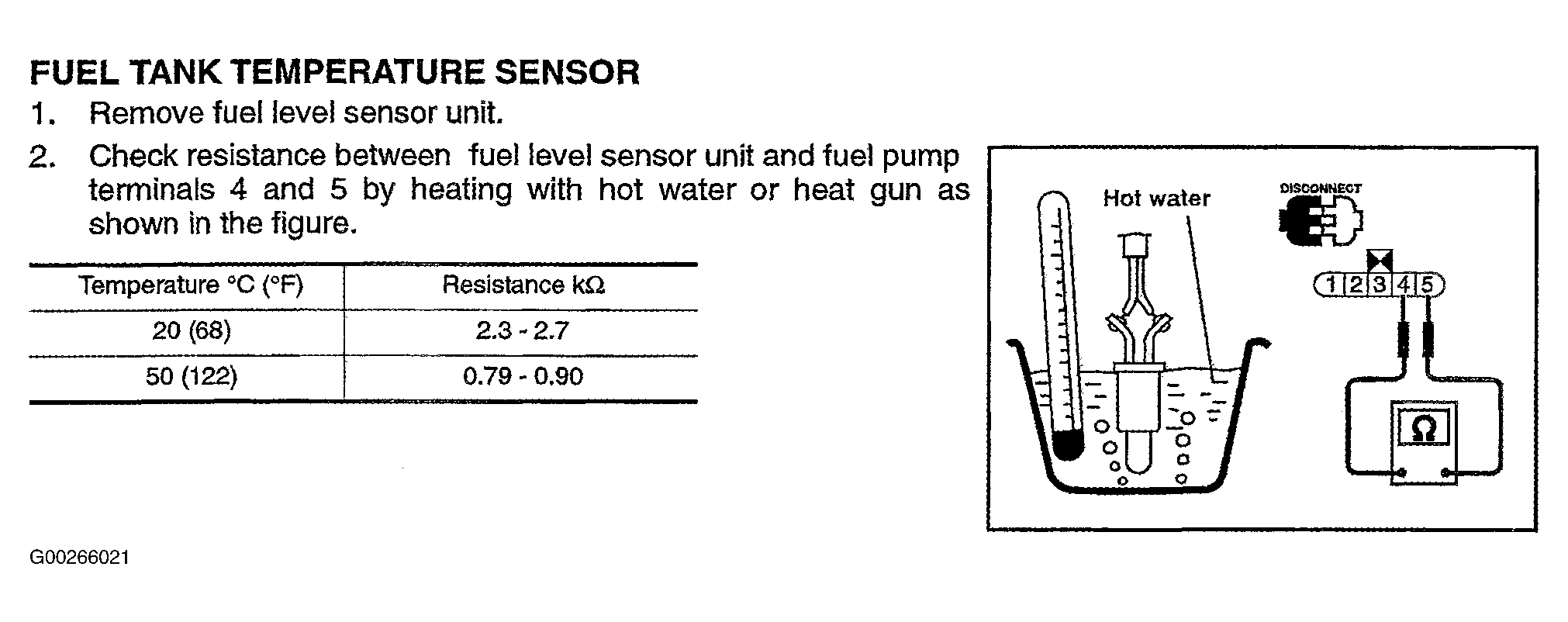

For Fuel Tank Temperature (FTT) sensor testing, see Figure.
