Component Inspection

For throttle position sensor testing, see Fig 1.

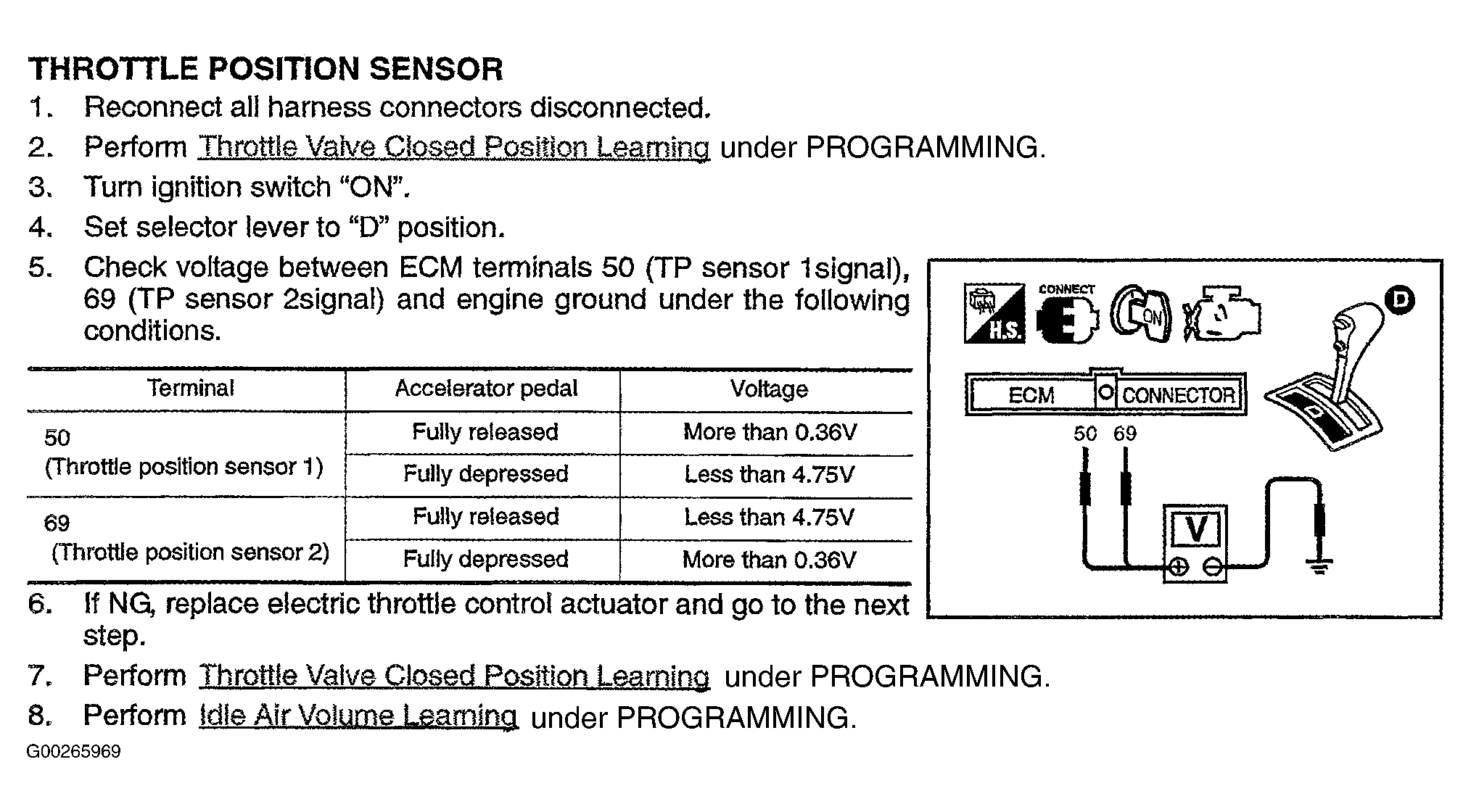

Fig 1: Testing Throttle Position Sensor

G00265969

Courtesy of NISSAN MOTOR CO., U.S.A.
