Component Inspection

For engine coolant temperature sensor testing, see Fig 1.

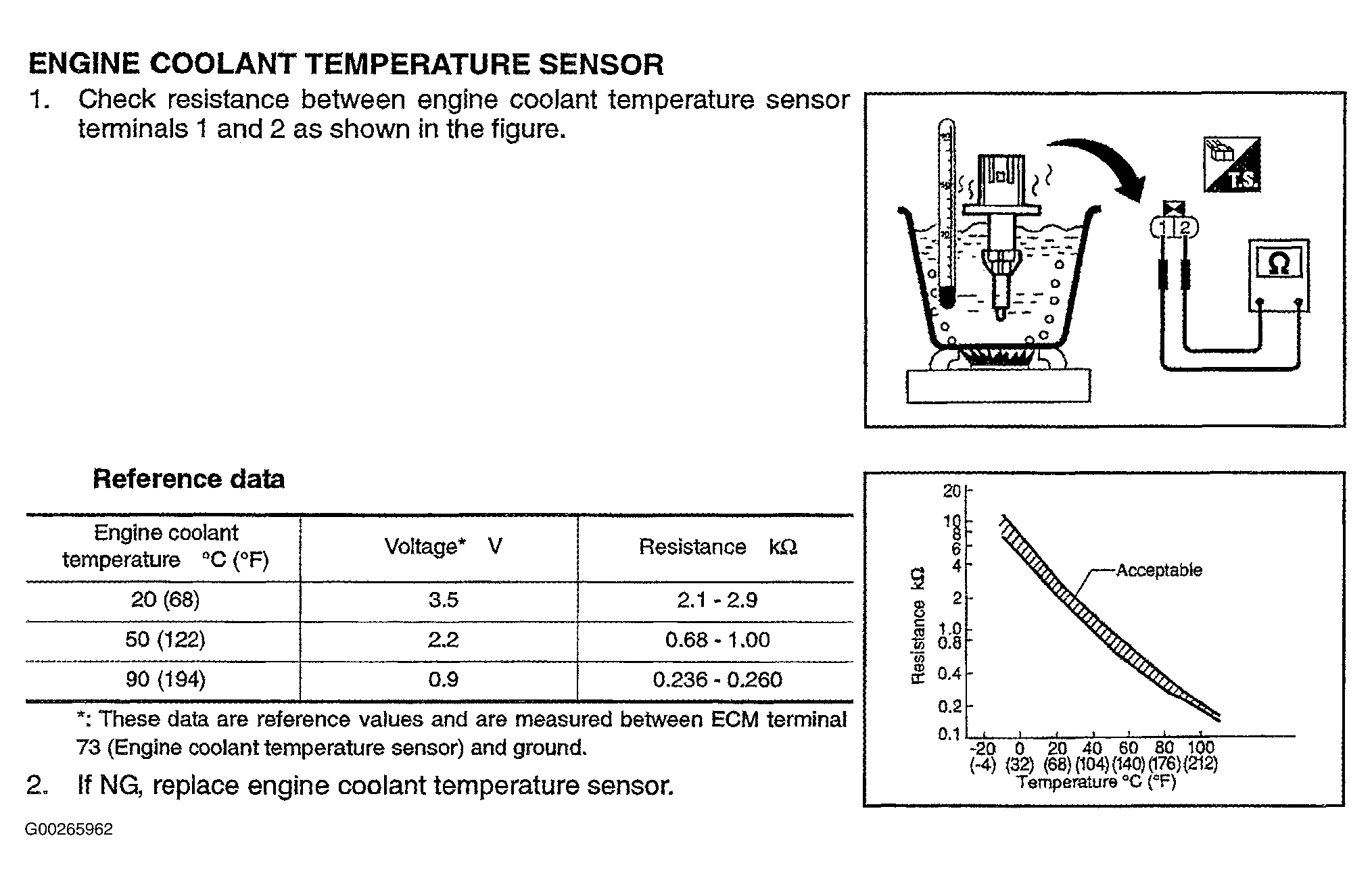

Fig 1: Testing Engine Coolant Temperature Sensor
G00265962Courtesy of NISSAN MOTOR CO., U.S.A.
