Data Monitor Mode Reference Values

For mass airflow sensor circuit specification data, see Fig 1.

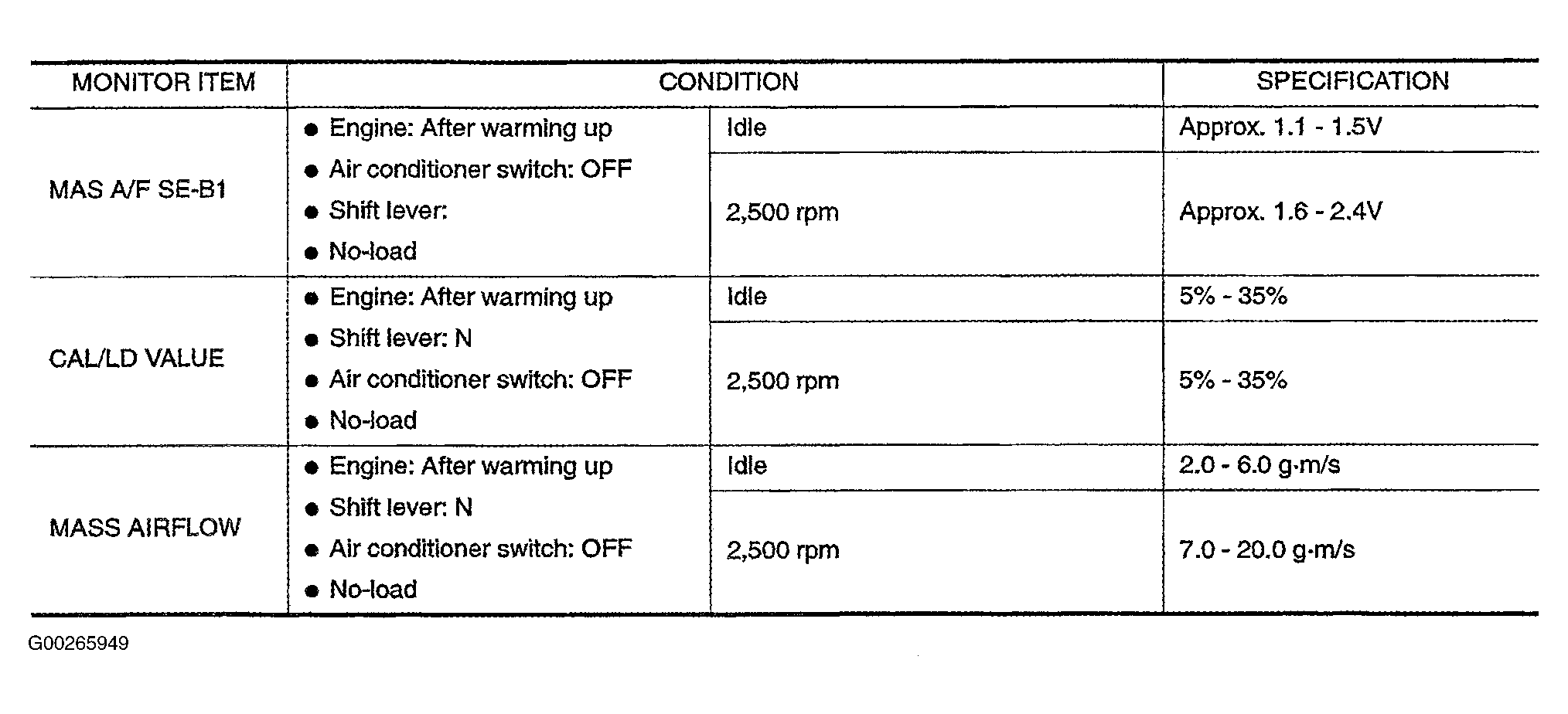

Fig 1: Mass Airflow Sensor Circuit Specification Data

G00265949

Courtesy of NISSAN MOTOR CO., U.S.A.
