Engine Controls - Self-Diagnostics
>>
Diagnostic Tests
>>
DTC P0011: Intake Valve Timing Control Performance & DTC P0021: Intake Valve Timing Control Performance
>>
Diagnostic Procedure
Diagnostic Procedure
For DTC P0011 and P0021 diagnostic procedure, see
Fig 1
.

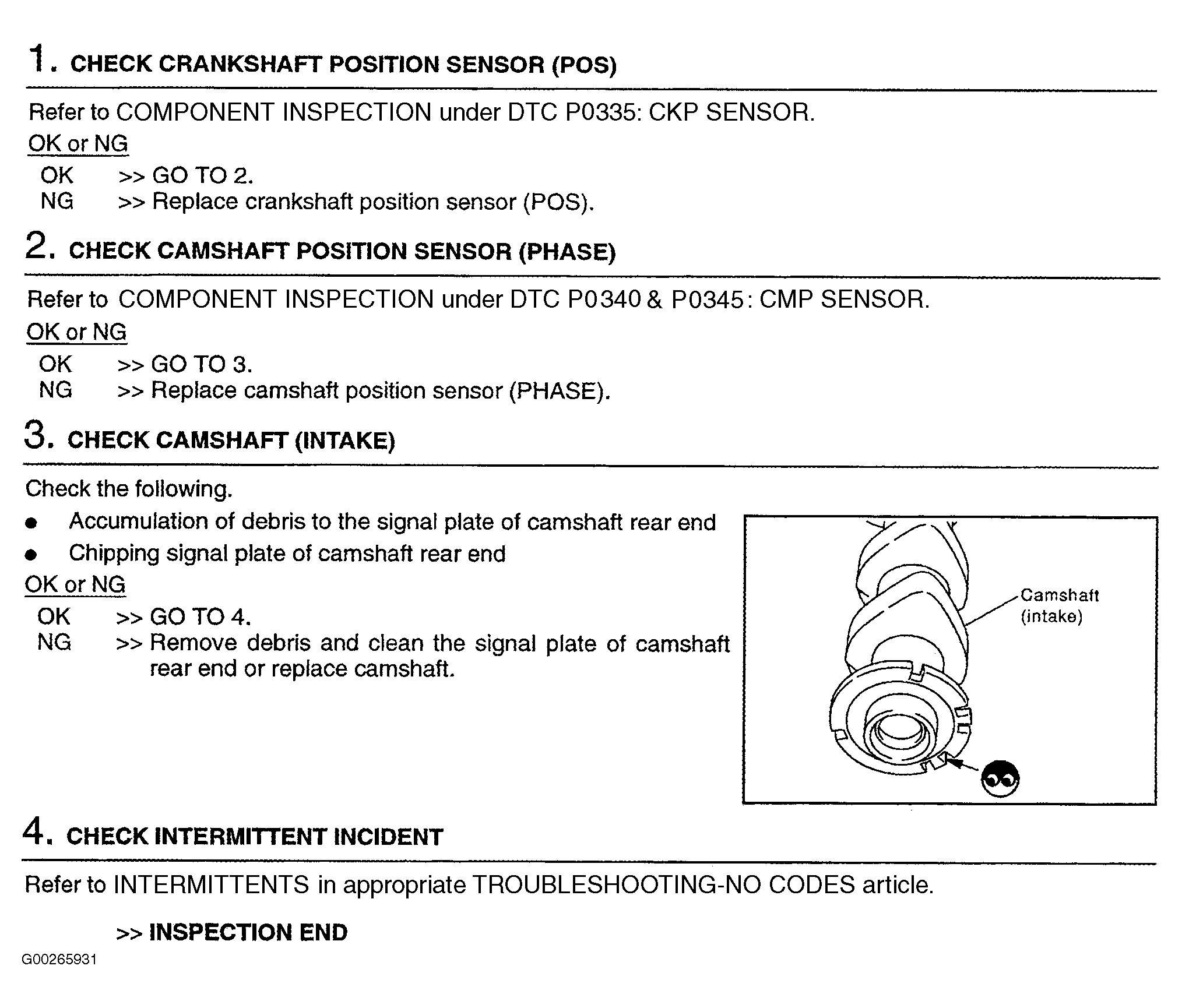

Fig 1: DTCs P0011 & P0021 Diagnostic Procedure
Courtesy of NISSAN MOTOR CO., U.S.A.
