Engine Oil Level

NOTE: Before starting engine, check engine oil level. If engine is already started, stop it and allow 10 minutes before checking.

Put vehicle horizontally.
Pull out oil level gauge and wipe it clean.
Insert oil level gauge and make sure engine oil level is within the range shown in the figure.
If it is out of range, adjust it.

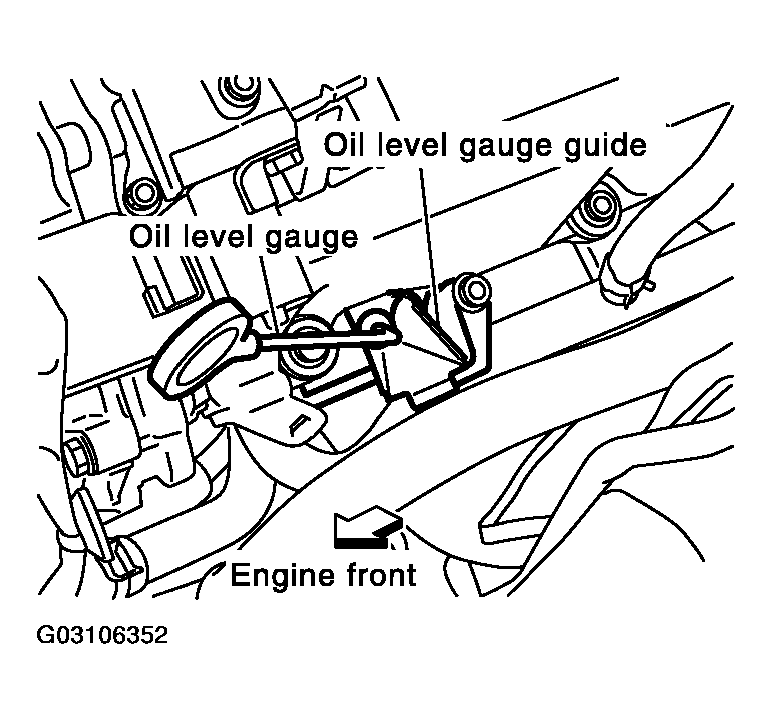

Fig 1: Identifying Oil Level Gauge
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: When checking engine oil level, insert oil level gauge with its tip aligned with oil level gauge guide on cylinder head. (In figure, air cleaner case and air duct are removed.)

Fig 2: Removing Oil Level Gauge

Courtesy of NISSAN MOTOR CO., U.S.A.
