Combination Meters
>>
Symptom Chart 1
Symptom Chart 1

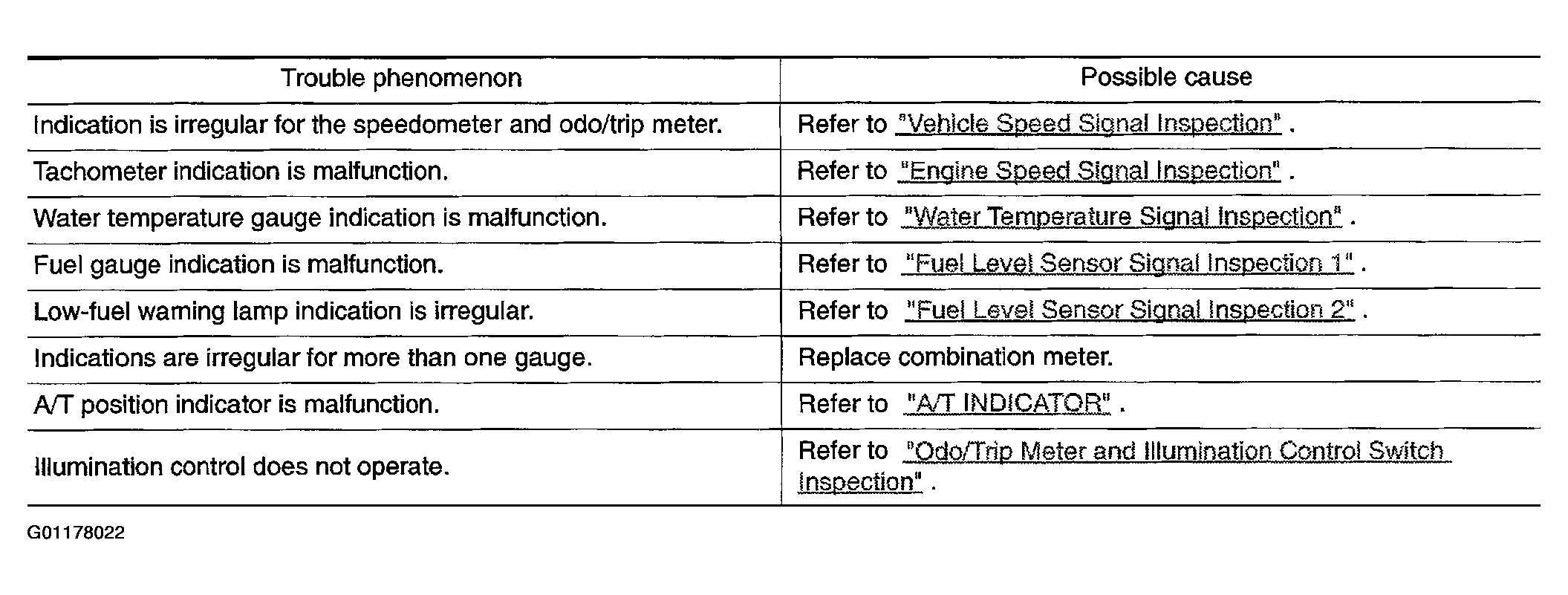

Fig 1: Identifying Symptom Chart 1
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
