Removal And Installation: Notes

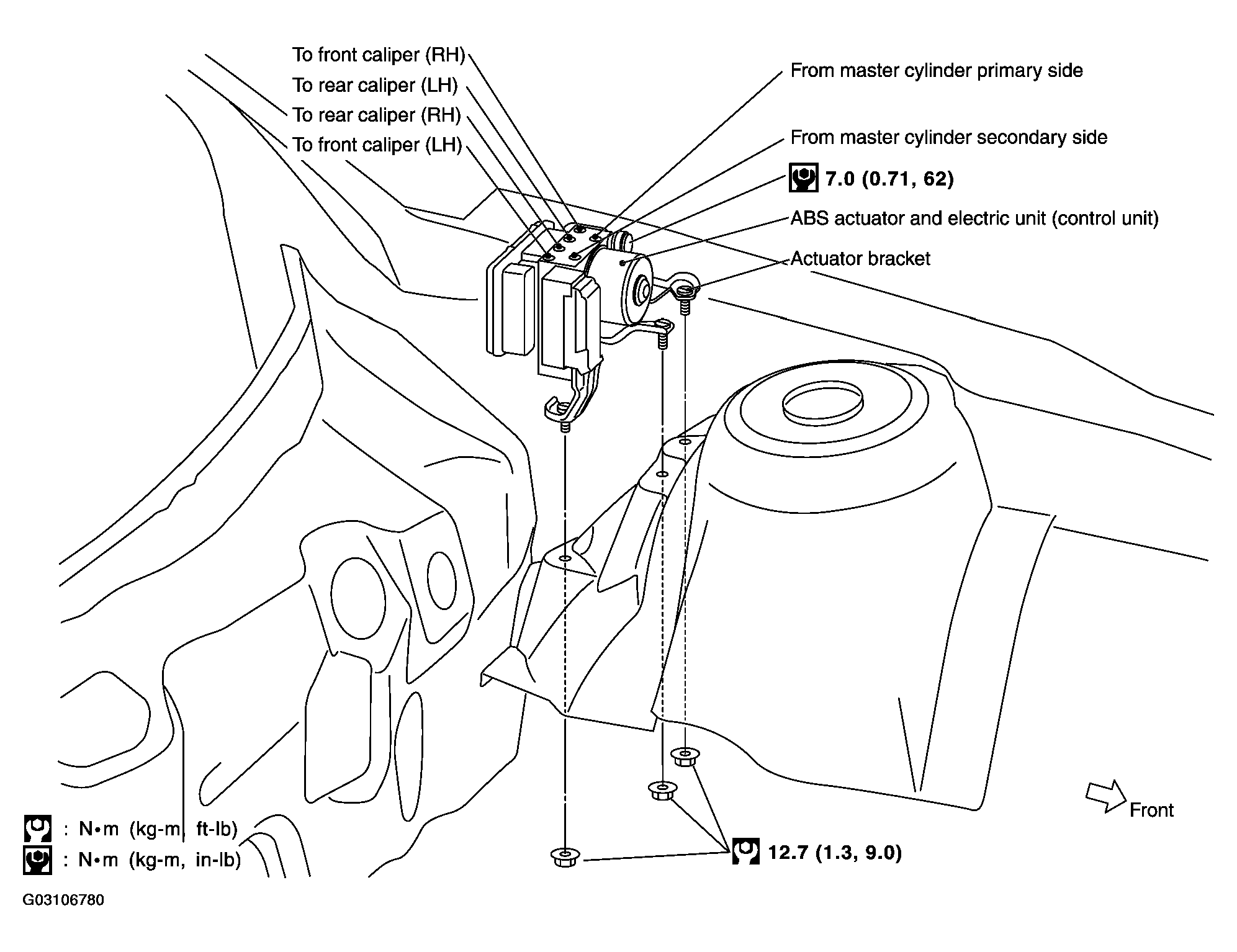

Fig 1: Removal And Installation Actuator And Electric Unit
G03106780Courtesy of NISSAN MOTOR CO., U.S.A.
