Removal and Installation of BCM: Removal

  1. Remove the dash side finisher (LH). Refer to BODY SIDE TRIM
  2. Disconnect BCM connector.
  3. Remove bracket mounting screws (3) to remove BCM and fuse block with bracket.

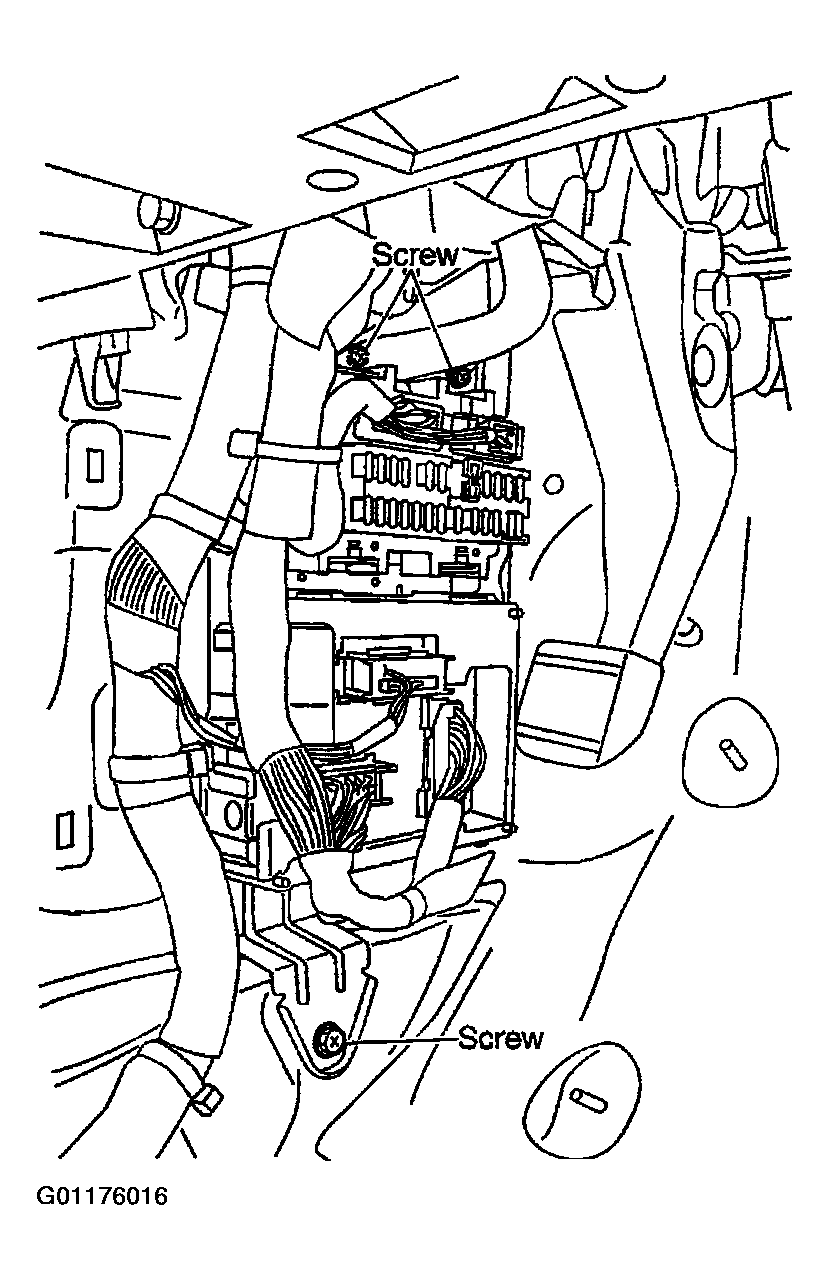

    Fig 1: Locating Bracket Mounting Screws
    G01176016Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Raise the pawl of fuse block and remove bracket from fuse block to remove BCM.

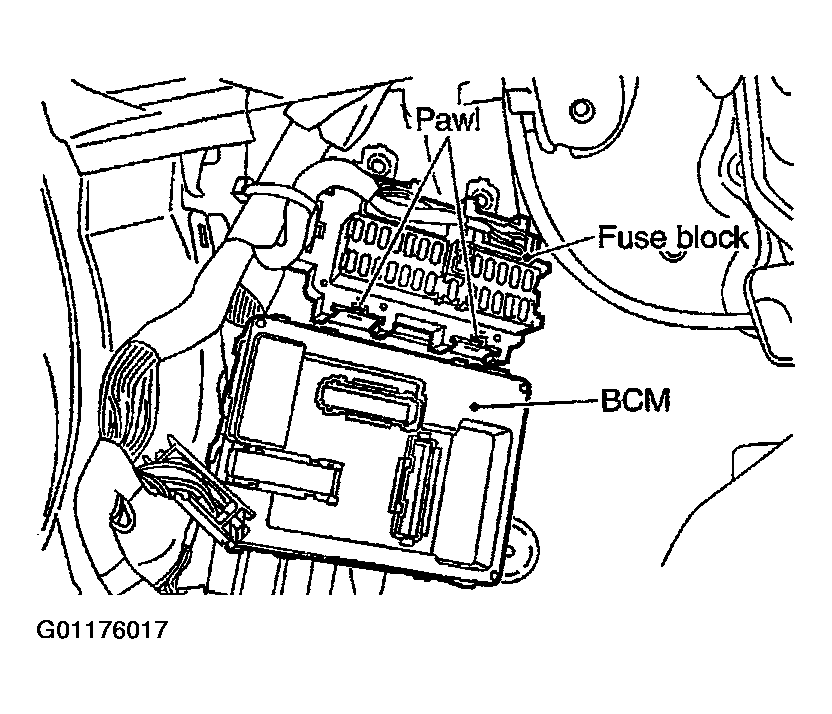

    Fig 2: Locating Pawl Of Fuse Block
    G01176017Courtesy of NISSAN MOTOR CO., U.S.A.
