Integrated Display System: Schematic

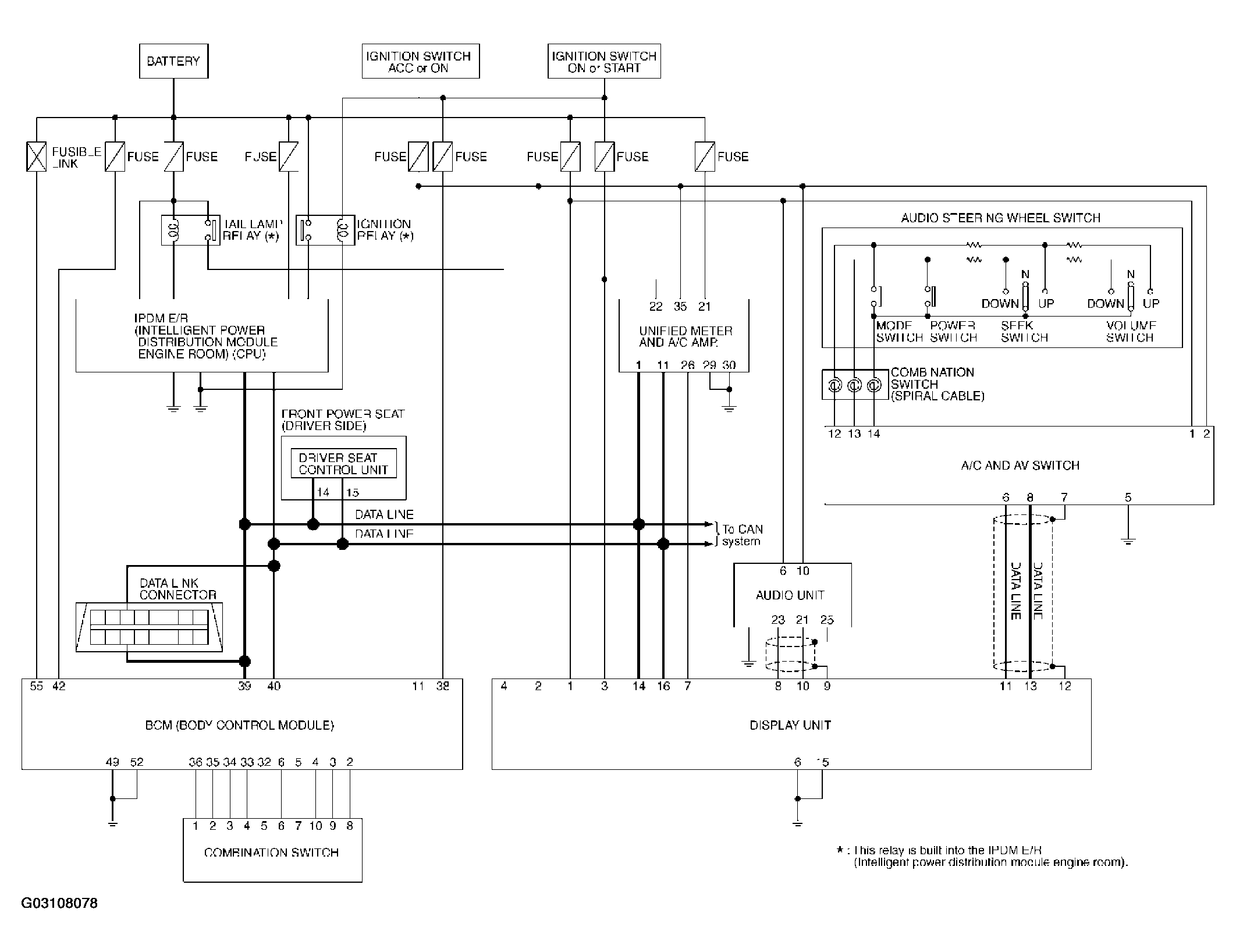

Fig 1: Schematic

G03108078

Courtesy of NISSAN MOTOR CO., U.S.A.

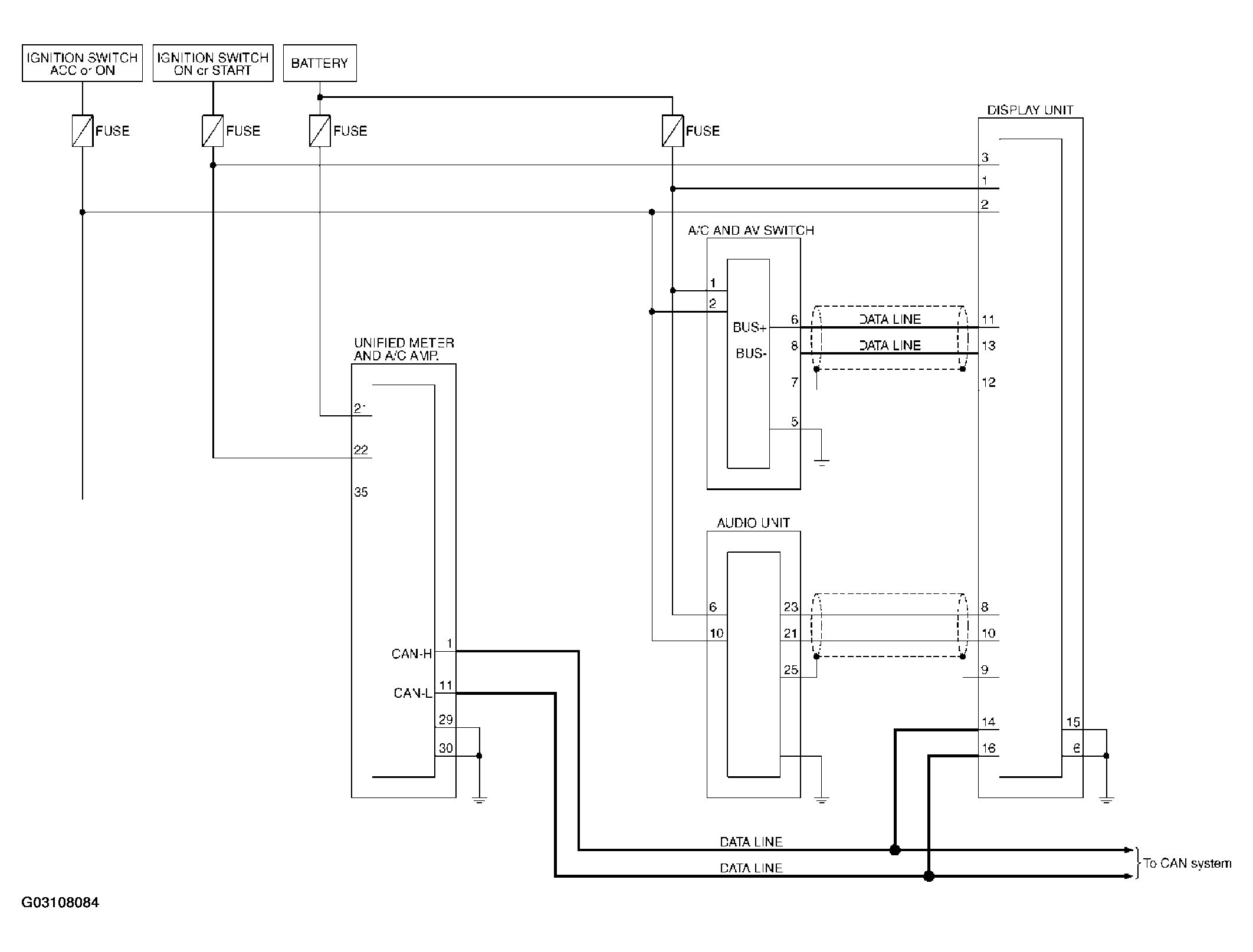

Fig 1: Schematic

G03108084

Courtesy of NISSAN MOTOR CO., U.S.A.
