Infiniti
>>
2003
>>
FX35 AWD
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry System
>>
Remote Keyless Entry System
>>
Wiring Diagram - KEYLESS-
Wiring Diagram - KEYLESS-

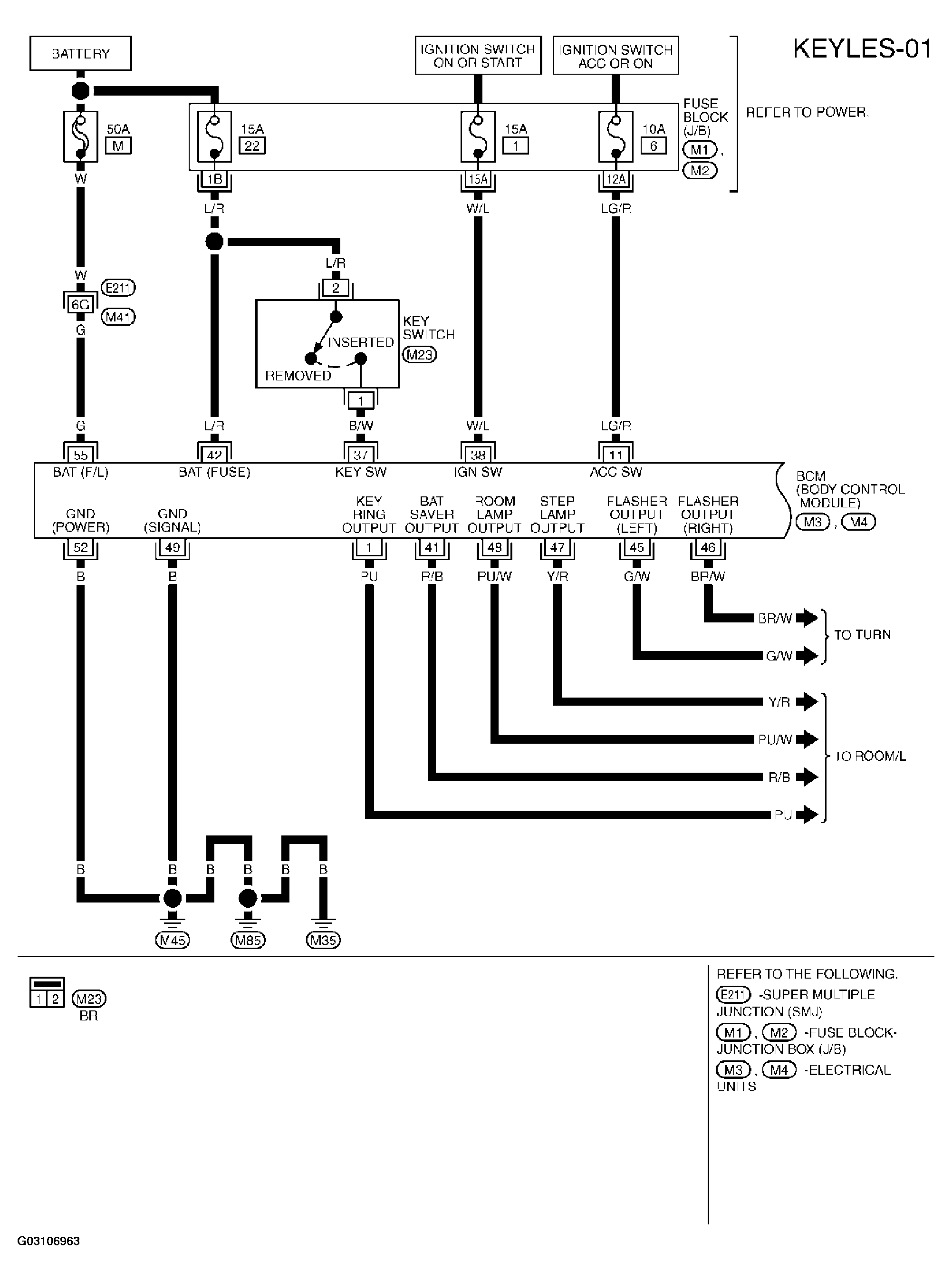

Fig 1: Remote Keyless Entry System Wiring Diagram And Identifying Connectors (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

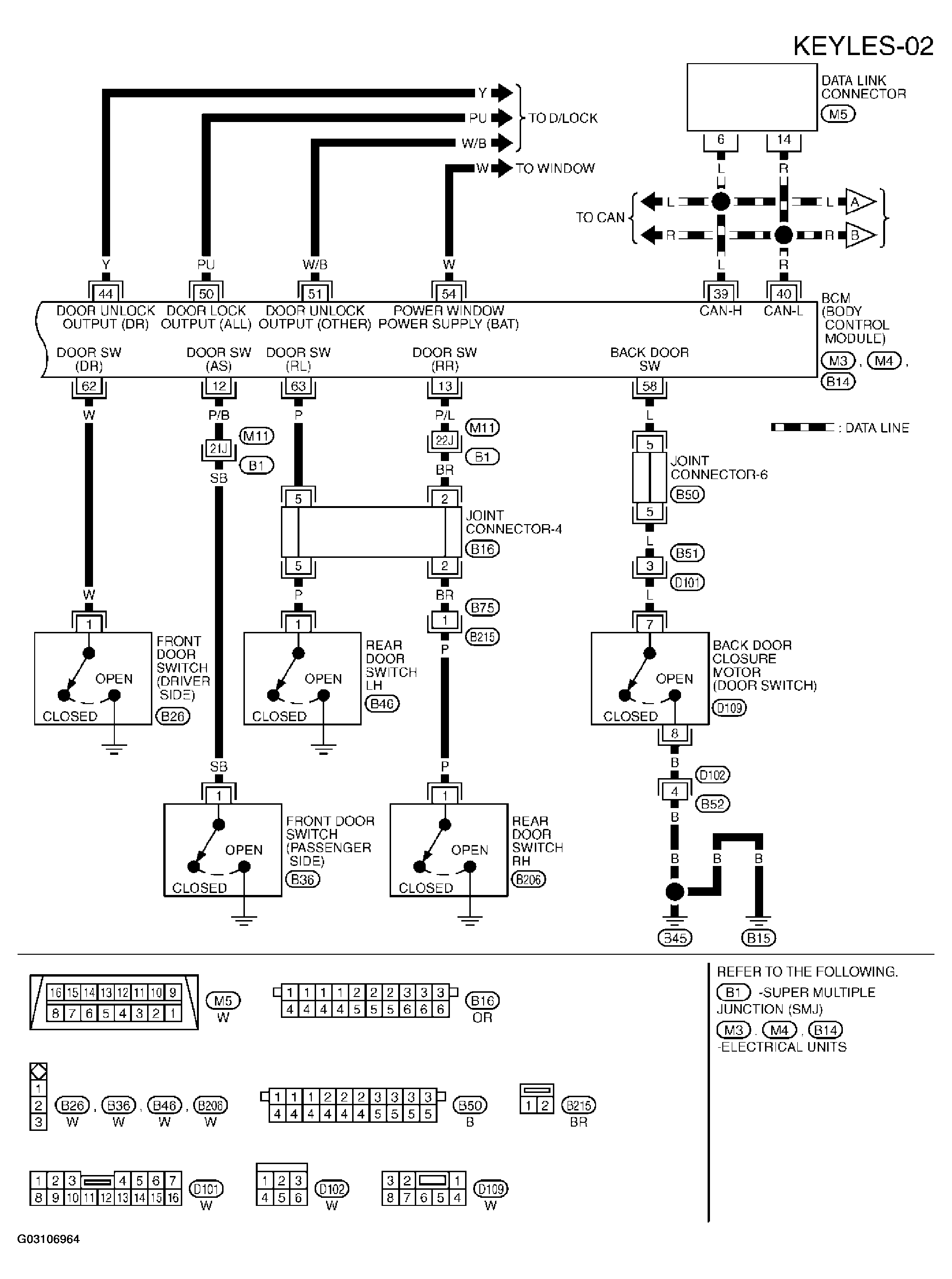

Fig 2: Remote Keyless Entry System Wiring Diagram And Identifying Connectors (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

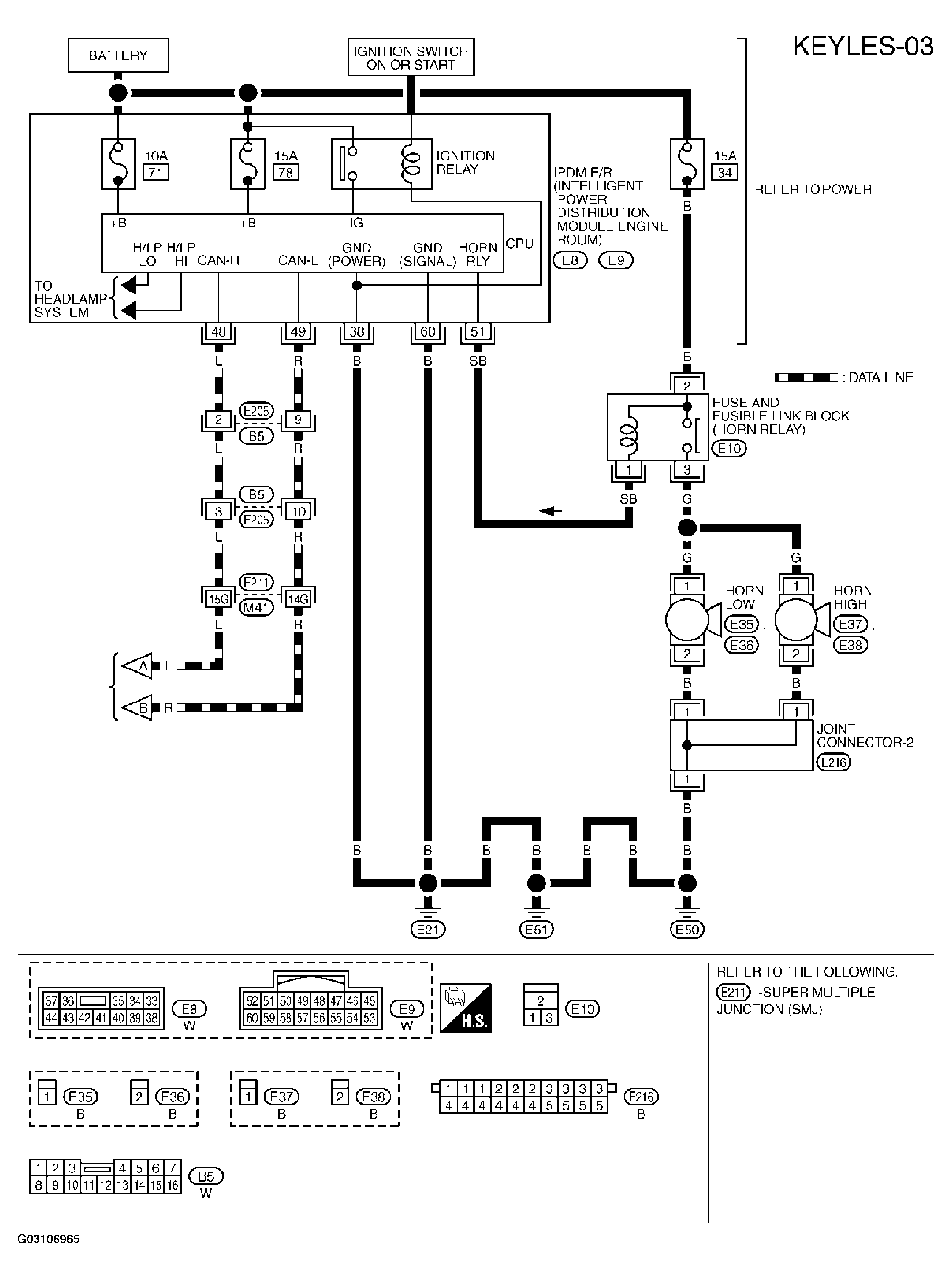

Fig 3: Remote Keyless Entry System Wiring Diagram And Identifying Connectors (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
