Check Outside Key Antenna
- OUTSIDE KEY ANTENNA POWER SUPPLY INSPECTION
Push each door request switch, and use an oscilloscope to check voltage waveform of harness between Intelligent Key unit connector M34 terminals 17 (back door), 19 (driver door), and 37 (passenger door) and ground.
OK or NG
- OK: GO TO 2.
- NG: GO TO 3 .
- OUTSIDE KEY ANTENNA OPERATION INSPECTION
- Disconnect each outside key antenna connector.
- Check the following.
- Check continuity between door mirror (outside key antenna) connector D2 (driver side), D32 (passenger side) terminals 6 and 7
- Check continuity between outside key antenna D116 (back door) terminals
Driver side, Passenger side
6-7: Continuity should exist.
Back door
1-2: Continuity should exist.
OK or NG
- OK: GO TO 3.
- NG: Replace outside key antenna.
- OUTSIDE KEY ANTENNA CIRCUIT INSPECTION
- Disconnect Intelligent Key unit connector.

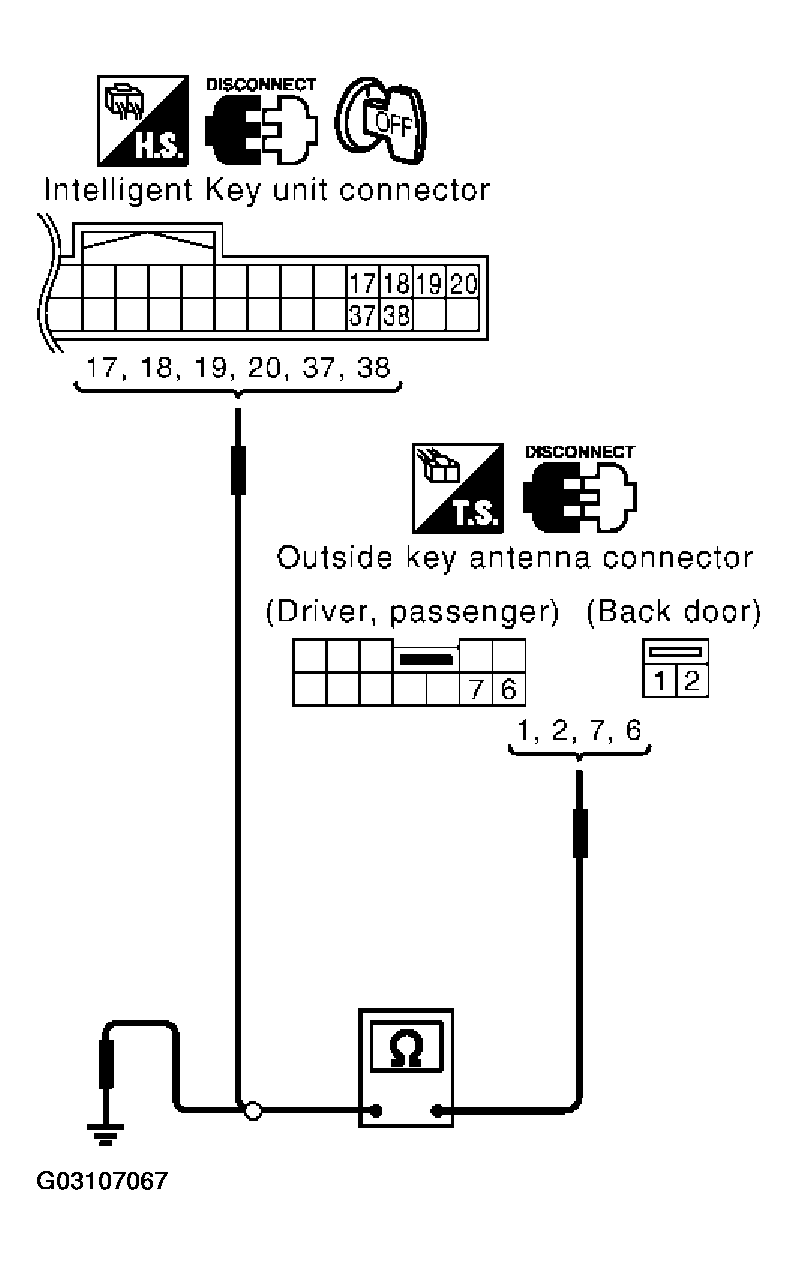

- Check continuity between each outside key antenna connector D2 (driver side), D32 (passenger side), D116 (back door) terminals 1,2,6,7 and Intelligent Key unit connector M34 terminals 17,18, 19, 20, 37, and 38.OUTSIDE KEY ANTENNA CONNECTOR CONTINUITY SPECIFICATIONS
Back door 1 (L/B) -17 (OR/L): Continuity should exist. 2 (W/B) -18 (PU/R): Continuity should exist. Driver side 7 (BR/W) -19 (SB): Continuity should exist. 6 (R/Y) - 20 (R/G): Continuity should exist. Passenger side 7 (G/Y) - 37 (G): Continuity should exist. 6 (L/Y) - 38 (PU/W): Continuity should exist. - Check continuity between each out side key antenna connector terminals 1, 2, 6, 7 and ground.OUTSIDE KEY ANTENNA CONNECTOR CONTINUITY SPECIFICATIONS
Back door 1 (L/B) - Ground: Continuity should not exist. 2 (W/B) Ground: Continuity should not exist. Driver side 7(BR/W) - Ground: Continuity should not exist. 6 (R/Y) - Ground: Continuity should not exist. Passenger side 7(G/Y)- Ground: Continuity should not exist. 6 (L/Y) - Ground: Continuity should not exist.
OK or NG
- NG: Replace Intelligent Key unit.
- NG: Replace harness between outside key antenna and Intelligent Key unit.
