Remote Controller Is Not Work

1. Turn ignition switch ACC.
2. Push "POWER" switch of DVD player and operate DVD player switch.

   Dose the DVD player switches work?

1. YES: Replace remote controller.
2. NO: GO TO 2

Check the inspection items below to diagnose the malfunction.

• Check that remote controller is facing to the sensor.
• Check that sensor does not have any seals or dirt that is interrupting signal.
• Check that the remote controller battery has run down.

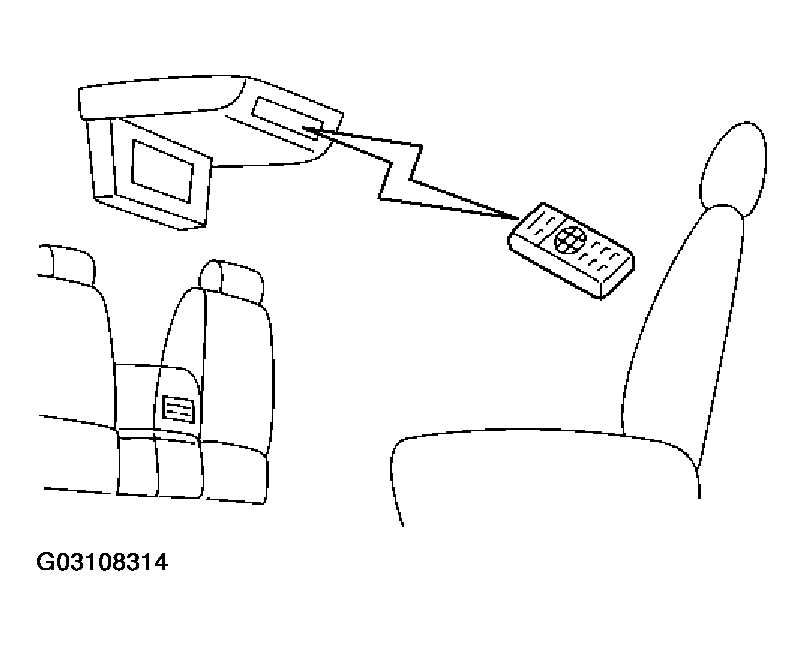

  Fig 1: Checking Remote Controller And Sensor

  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG

1. OK: GO TO 3
2. NG: GO TO NEXT STEP.
   • When operating, face remote controller to the sensor.
   • Remove seal or dirt that is interrupting signal.
   • If the battery has run down, replace it with new one.

1. Turn ignition switch OFF.
2. Disconnect DVD player connector and DVD display connector.
3. Check continuity between DVD player harness connector B19 terminal 30 (BR) and DVD display harness connector B192 terminal 14 (BR).

   30-14: Continuity should exist.

4. Check continuity between DVD player harness connector B19 terminal 30 (BR) and ground.

   30 - Ground: Continuity should not exist.

   OK or NG

1. OK: GO TO 4
2. NG: Repair harness or connector.

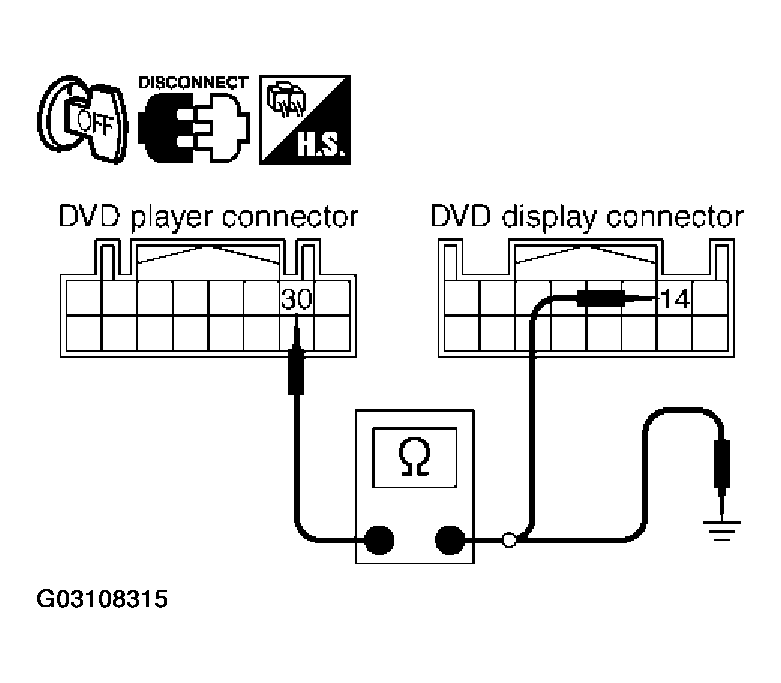

   Fig 2: Checking Continuity Between DVD Player Harness Connector And DVD Display Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.

1. Connect DVD display connector.
2. Turn ignition switch ACC.
3. Check voltage between DVD player harness connector B19 terminal 30 (BR) and ground.

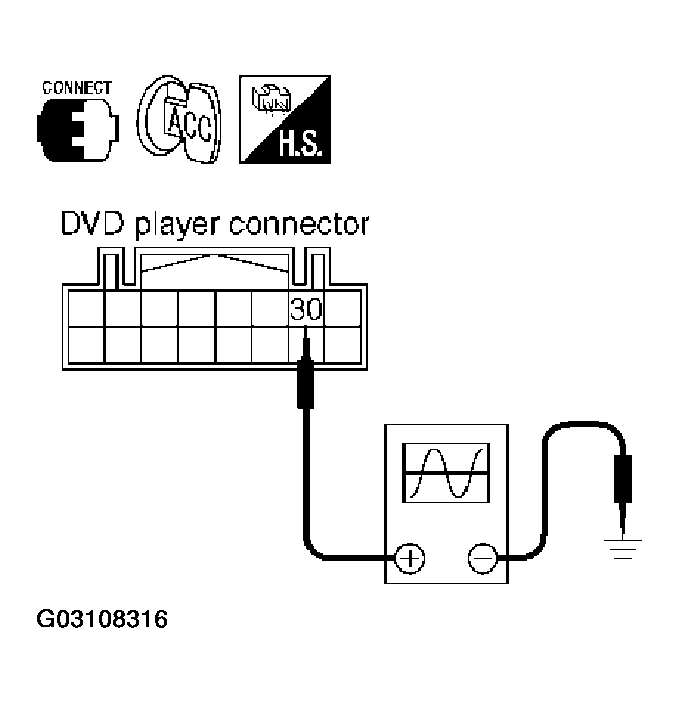

   Fig 3: Checking Voltage Between DVD Player Harness Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   30-Ground: Refer to  Terminals and Reference Value for DVD Player   .

   OK or NG

1. OK: Replace DVD player.
2. NG: Replace DVD display.
