Steering Transfer Gear: Inspection

Do not disassemble steering transfer gear assembly.

• Check that steering transfer gear assembly operates smoothly. Also check for grease leakage, deformation and damage. Replace steering transfer gear assembly if necessary.
• Check rotating torque at input shaft in 360° and in both directions.
  1. Rotating torque:
     1. 0.25 - 0.69 N.m (2.5 - 7.0 kg-cm, 2.2 - 6.1 in-lb)

  If rotating torque is out of specification, replace steering transfer gear assembly.

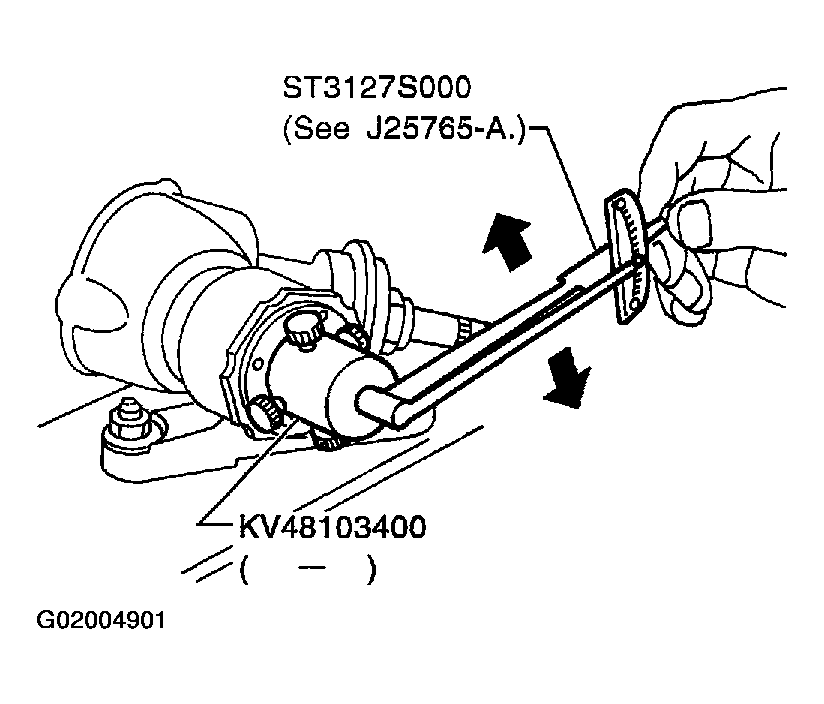

  Fig 1: Checking Rotating Torque At Input Shaft

  Courtesy of NISSAN MOTOR CO., U.S.A.
