Inspection/Thermal Transmitter

WARNING: This page is about a different car, the 2002 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

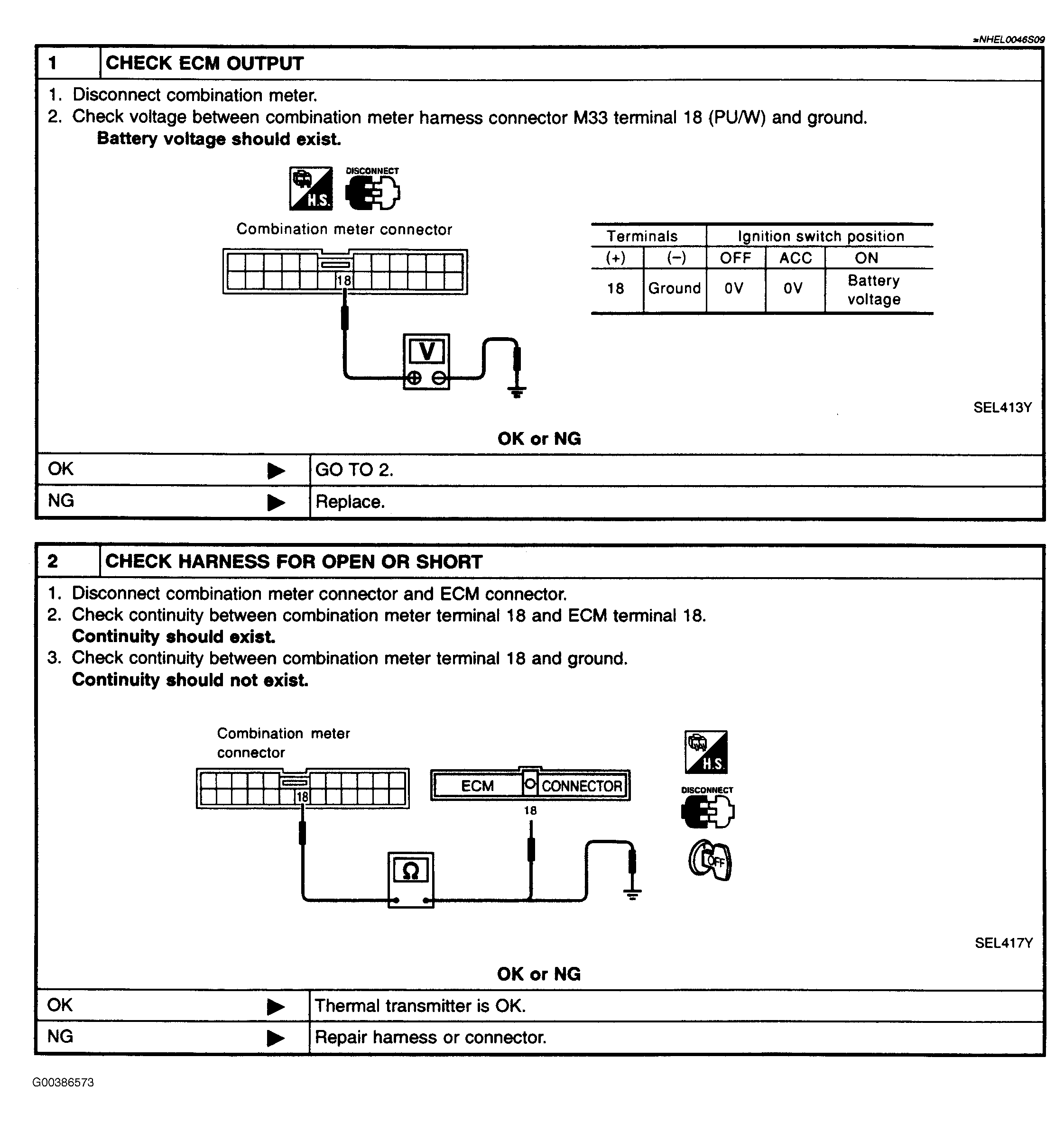

Fig 1: Inspecting Thermal Transmitter (Step 1)

Courtesy of NISSAN MOTOR CO., U.S.A.

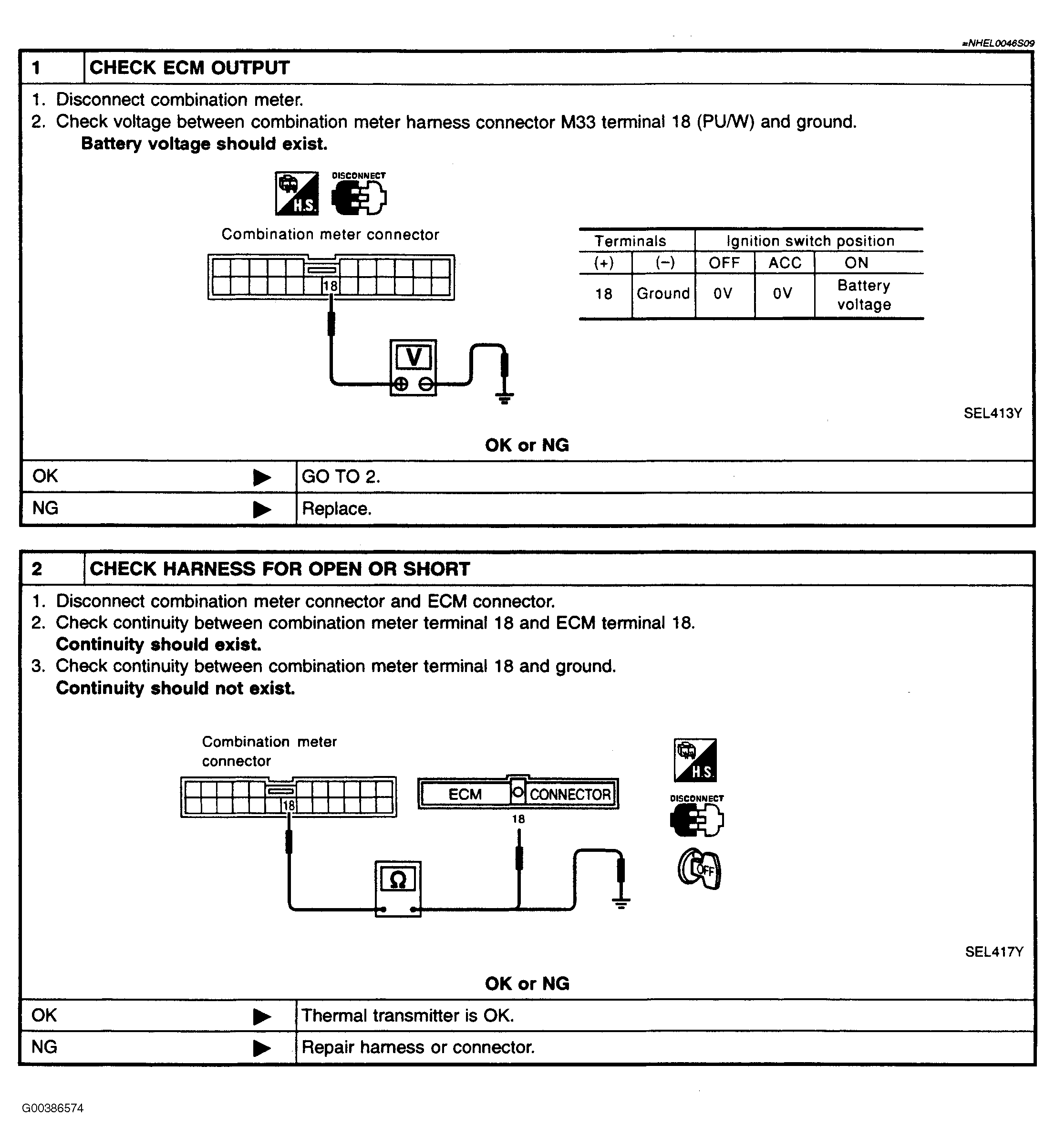

Fig 2: Inspecting Thermal Transmitter (Step 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

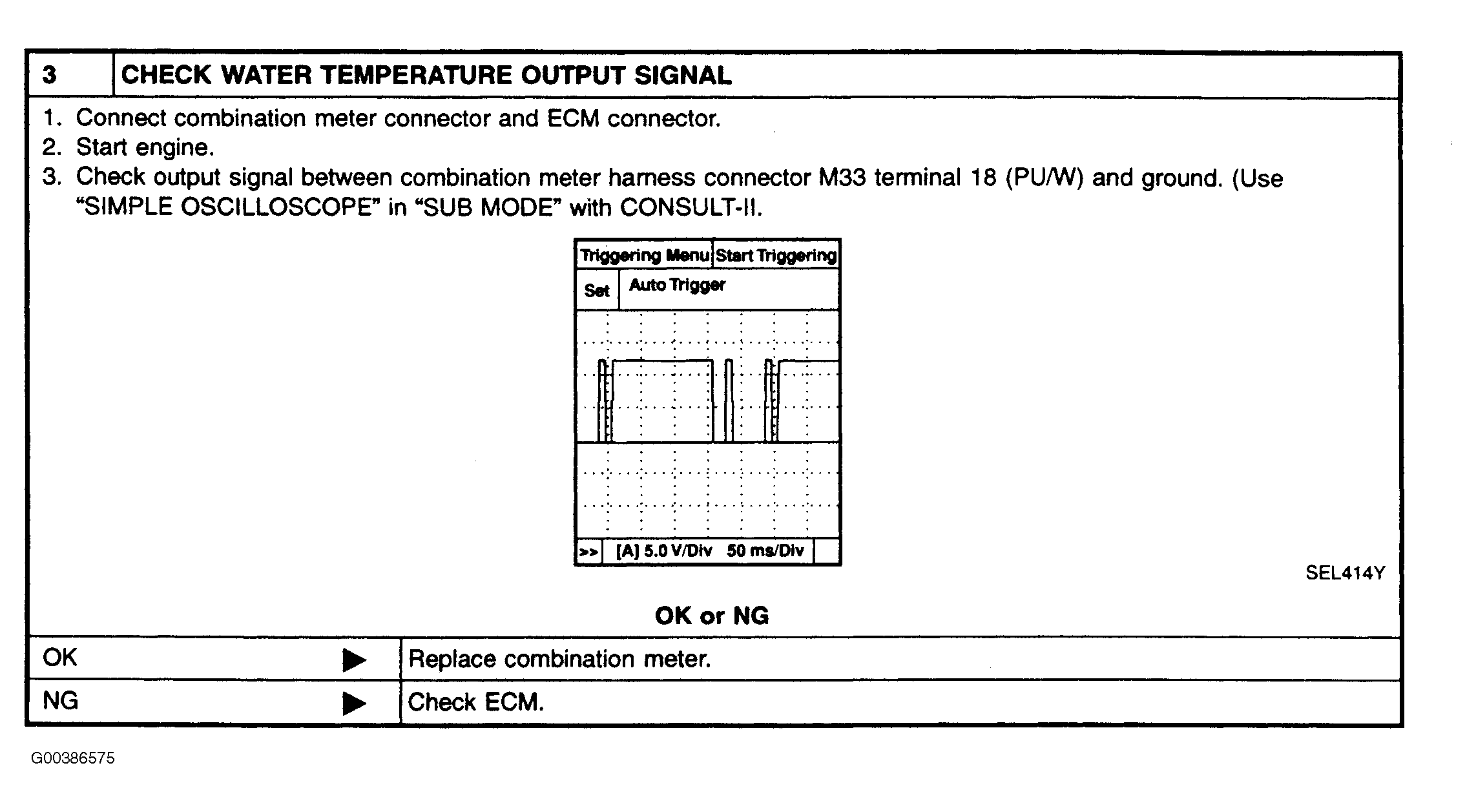

Fig 3: Inspecting Thermal Transmitter (Step 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
