Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

SYMPTOM: Sunload sensor circuit is open or shorted. (25 or -25 is indicated on the display as a result of conducting SELF-DIAGNOSIS STEP 2.)

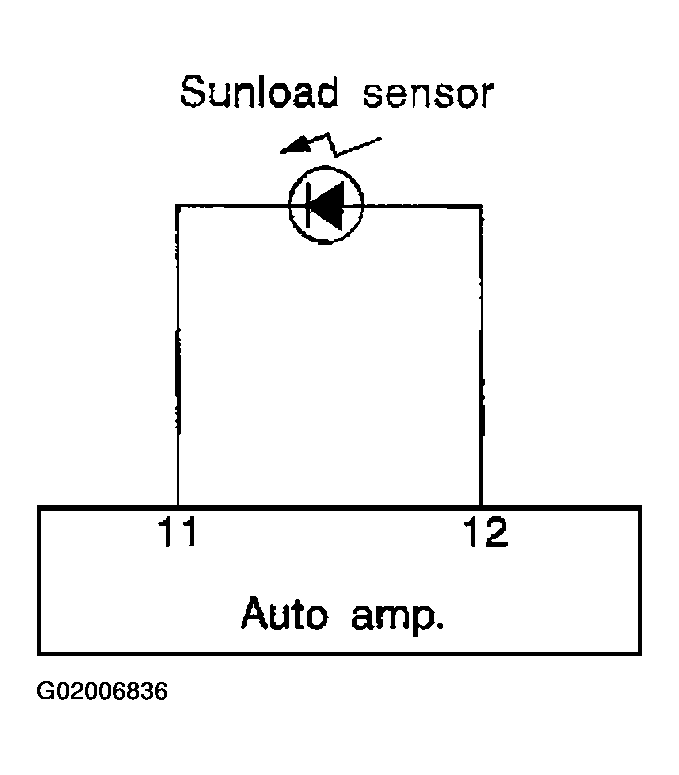

Fig 1: Identifying Sunload Sensor Circuit
G02006836Courtesy of NISSAN MOTOR CO., U.S.A.
  1. CHECK SUNLOAD SENSOR CIRCUIT BETWEEN SUNLOAD SENSOR AND BODY GROUND

    Disconnect sunload sensor harness connector.

    Do approx. 5 volts exist between sunload sensor harness terminal No. 1 and body ground?

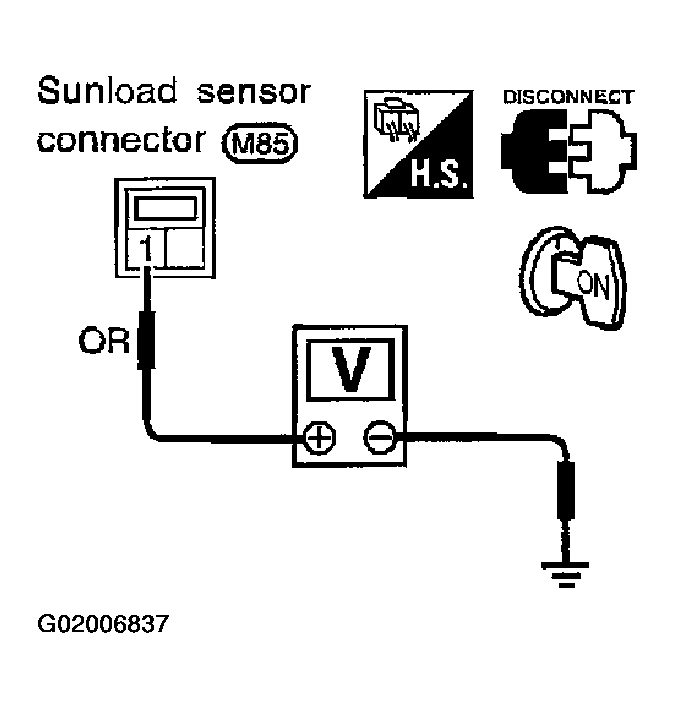

    Fig 2: Checking Sunload Sensor Circuit Between Sunload Sensor And Body Ground
    G02006837Courtesy of NISSAN MOTOR CO., U.S.A.

    Yes or No

    1. Yes : GO TO 2.
    2. No : GO TO  4.
  2. CHECK SUNLOAD SENSOR CIRCUIT BETWEEN SUNLOAD SENSOR AND AUTO AMP. (LCU)
    1. Disconnect auto amp. (LCU) harness connector.
    2. Check circuit continuity between sunload sensor harness terminal No. 2 and auto amp. (LCU) harness terminal No. 11.

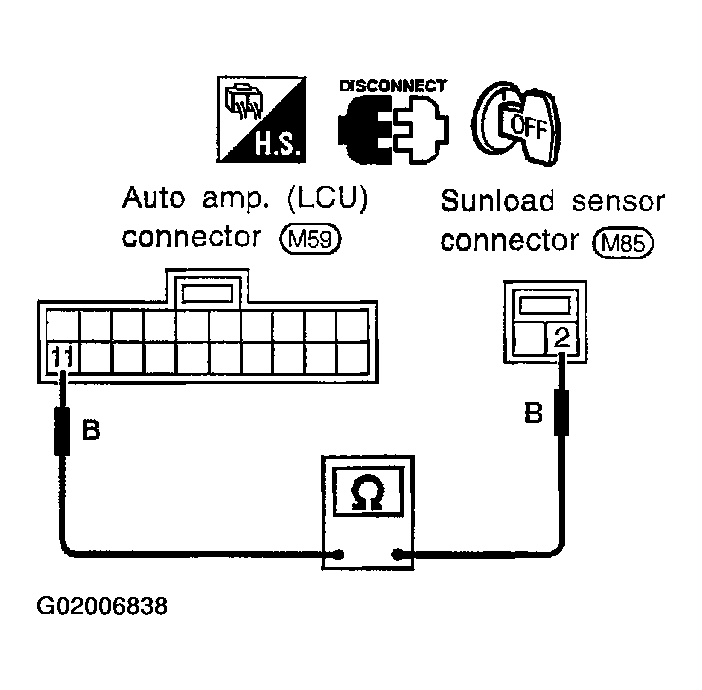

      Fig 3: Checking Sunload Sensor Circuit Between Sunload Sensor And Auto Amp. (LCU)
      G02006838Courtesy of NISSAN MOTOR CO., U.S.A.

      Continuity should exist.

    If OK, check harness for short.

    OK or NG

    1. OK : GO TO 3.
    2. NG : Repair harness or connector.
  3. CHECK SUNLOAD SENSOR

    Refer to , "SUNLOAD SENSOR ".

    OK or NG

    1. OK
      1. Replace auto amp. (LCU).
      2. Go to , "FUNCTION CONFIRMATION PROCEDURE ", "Self-diagnosis", and perform SELF-DIAGNOSIS STEP 2.

        Confirm that code No. 20 is displayed.

    2. NG
      1. Replace sunload sensor.
      2. Go to , "FUNCTION CONFIRMATION PROCEDURE ", "Self-diagnosis", and perform SELF-DIAGNOSIS STEP 2.

        Confirm that code No. 20 is displayed.

  4. CHECK SUNLOAD SENSOR CIRCUIT BETWEEN SUNLOAD SENSOR AND AUTO AMP. (LCU)
    1. Disconnect auto amp. (LCU) harness connector.
    2. Check circuit continuity between sunload sensor harness terminal No. 1 and auto amp. (LCU) harness terminal No. 12.

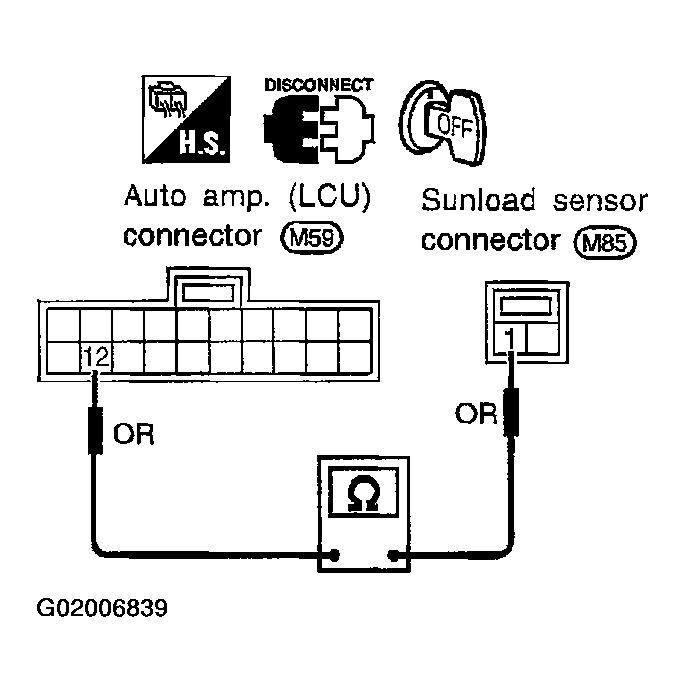

      Fig 4: Checking Sunload Sensor Circuit Between Sunload Sensor And Auto Amp
      G02006839Courtesy of NISSAN MOTOR CO., U.S.A.

      Continuity should exist.

    If OK, check harness for short.

    OK or NG

    1. OK
      1. Replace auto amp.
      2. Go to , "FUNCTION CONFIRMATION PROCEDURE ", "Self-diagnosis", and perform SELF-DIAGNOSIS STEP 2.

        Confirm that code No. 20 is displayed.

    2. NG : Repair harness or connector.
