Component Description

WARNING: This page is about a different car, the 2002 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

The ambient sensor is attached in front of the right side condenser. It detects ambient temperature and converts it into a resistance value which is then input into the auto amplifier.

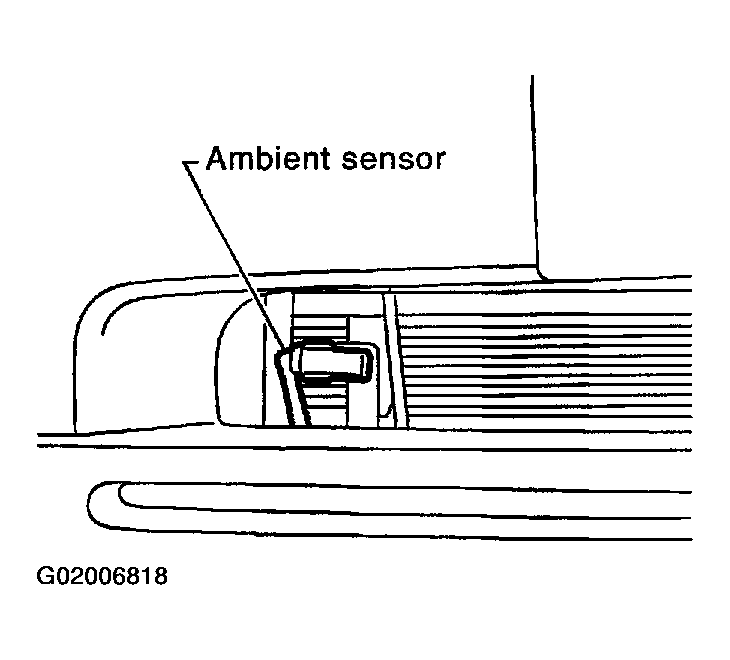

Fig 1: Locating Ambient Sensor
G02006818Courtesy of NISSAN MOTOR CO., U.S.A.
