Engine Controls Self-Diagnostics - Pathfinder & QX4
>>
Connector Identification
>>
Engine Control Harness
Engine Control Harness

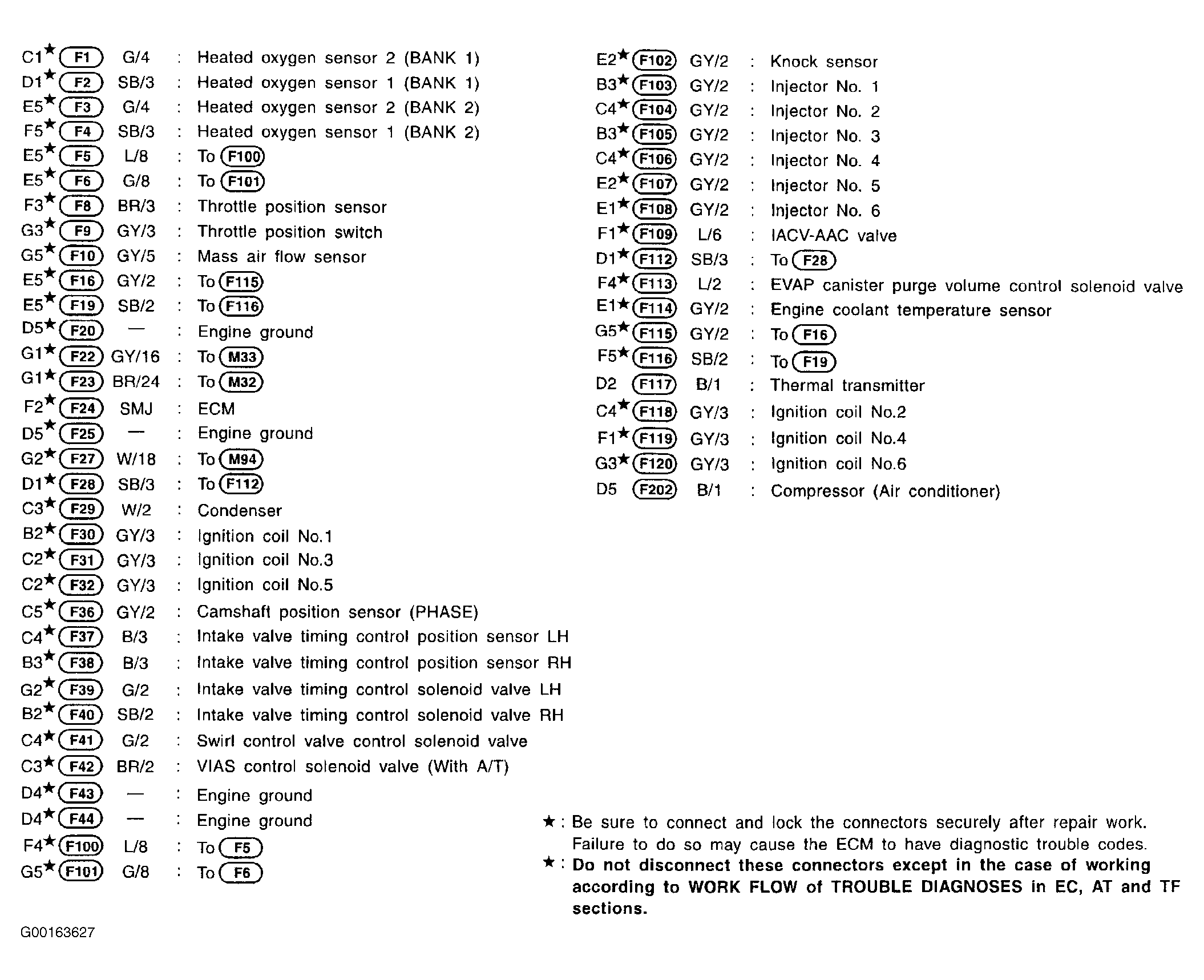

Fig 1: Identifying Engine Control Harness Routing (Pathfinder - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

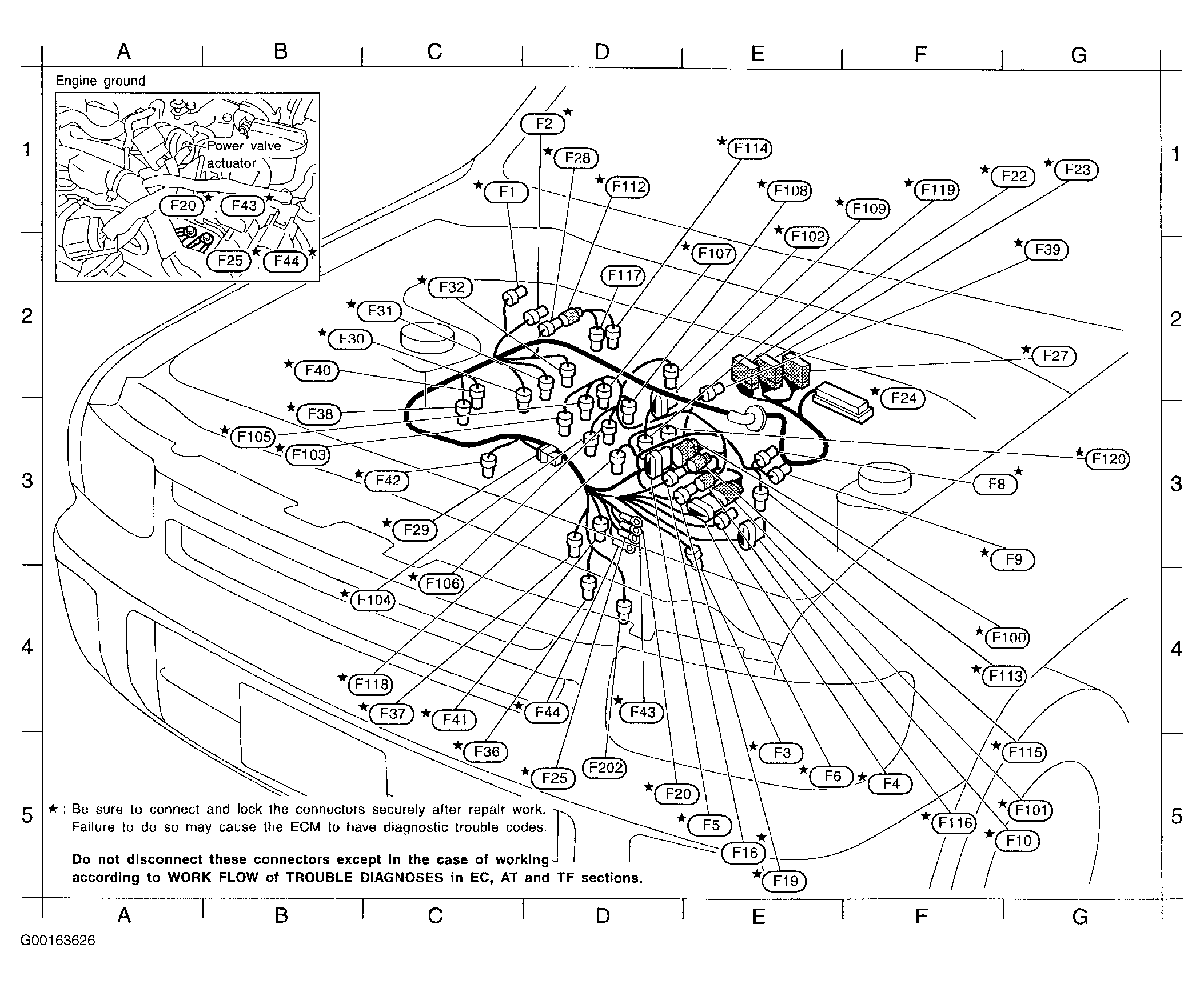

Fig 2: Identifying Engine Control Harness Routing (Pathfinder - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Engine Control Harness Routing (QX4 - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Engine Control Harness Routing (QX4 - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Identifying Engine & Transmission Harness Routing
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
