Component Locations
COMPONENT LOCATIONS
| Component | Location | ||
|---|---|---|---|

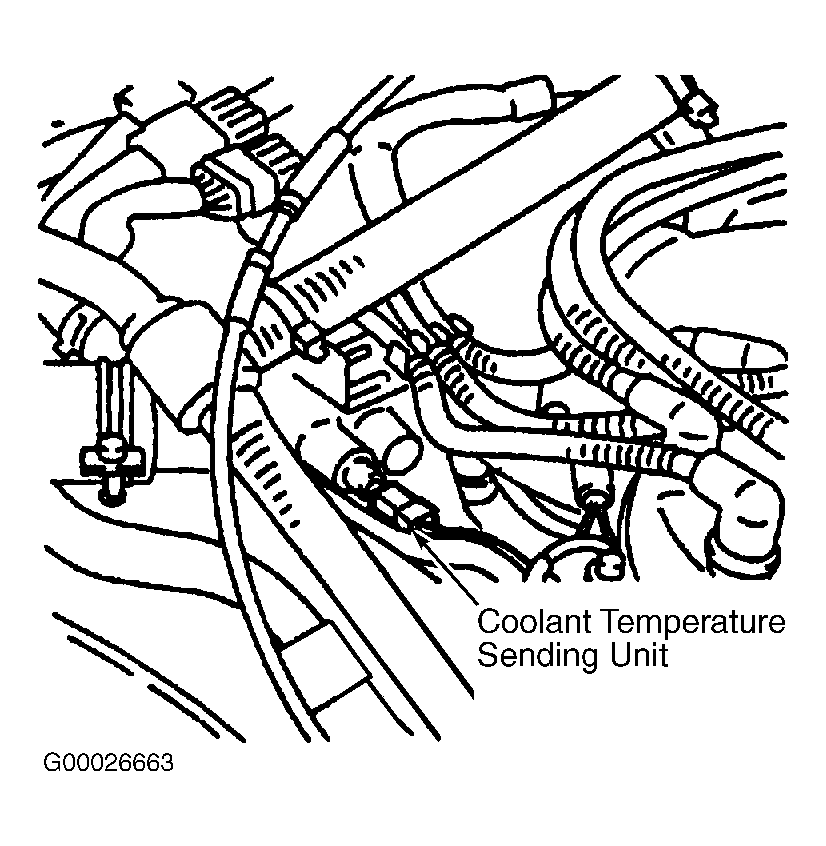

| Coolant Temperature Sending Unit | (1) Near Front Of Engine | ||
| Fuel Gauge Sending Unit | In Fuel Tank | ||
| Hazard Switch | Center Of Instrument Panel | ||
| Combination Meter Diodes | On Back Of Combination Meter | ||
| Oil Pressure Switch | Near Oil Filter | ||
| Trip Odometer Reset Switch | Bottom Center Of Combination Meter | ||
| Vehicle Speed Sensor (VSS) | On Transmission | ||
|
|||
