Hood Switch Check

For hood switch inspection procedures, see Fig 1Fig 2 .

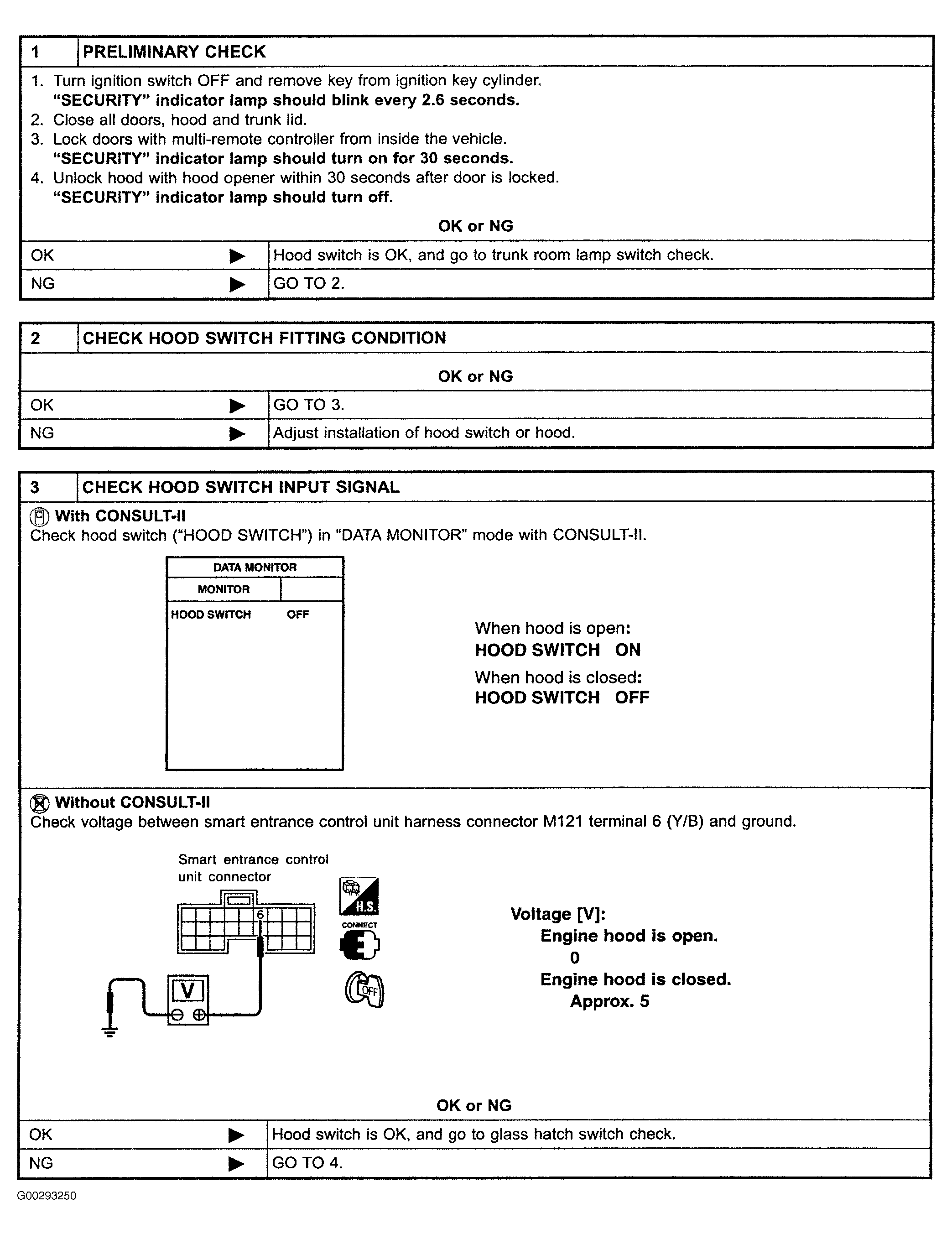

Fig 1: Hood Switch Check Procedures (Steps 1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.

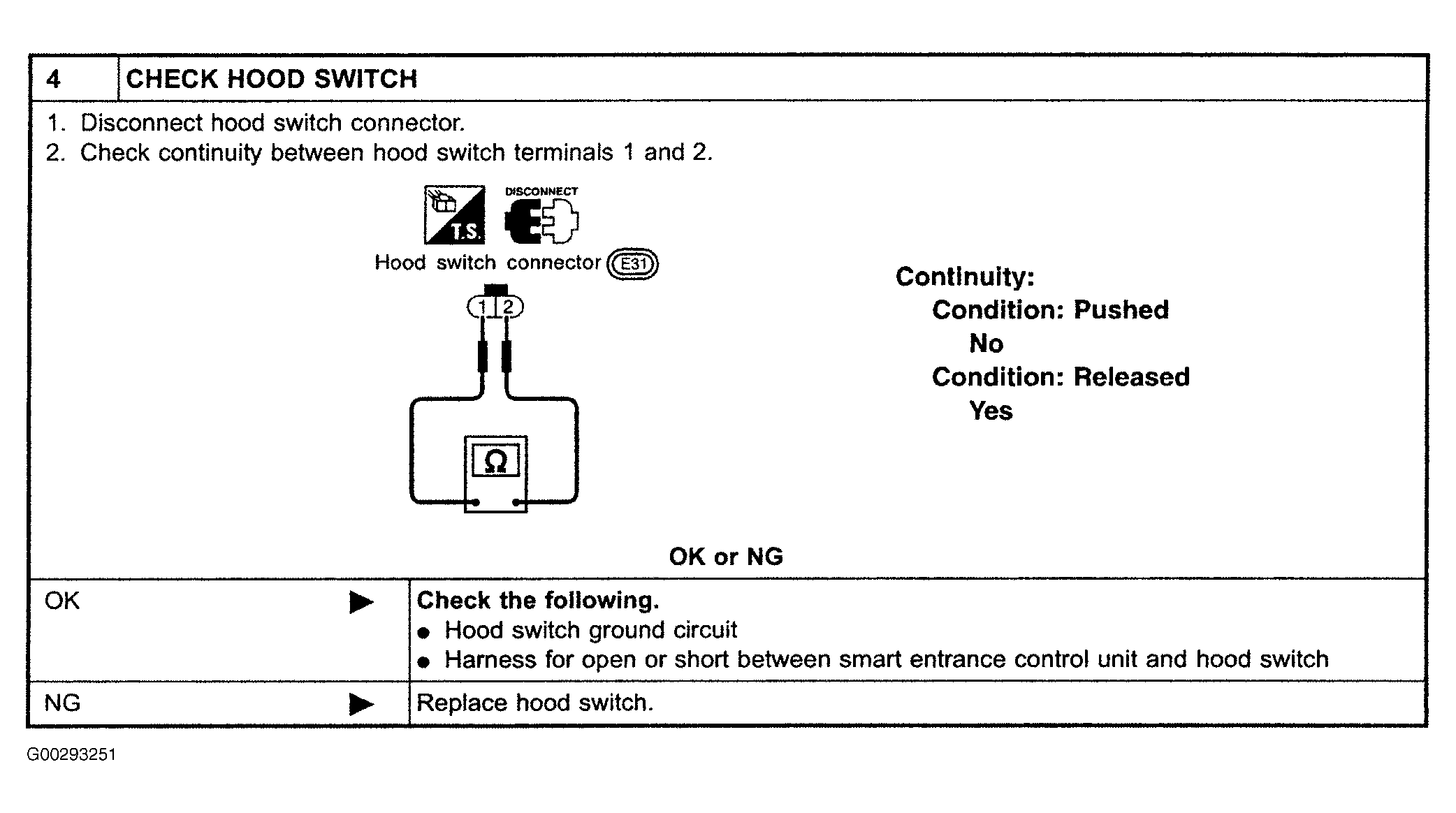

Fig 2: Hood Switch Check Procedure (Step 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
