Release Switch

Disconnect booster solenoid/release switch connector and check resistance between terminals.

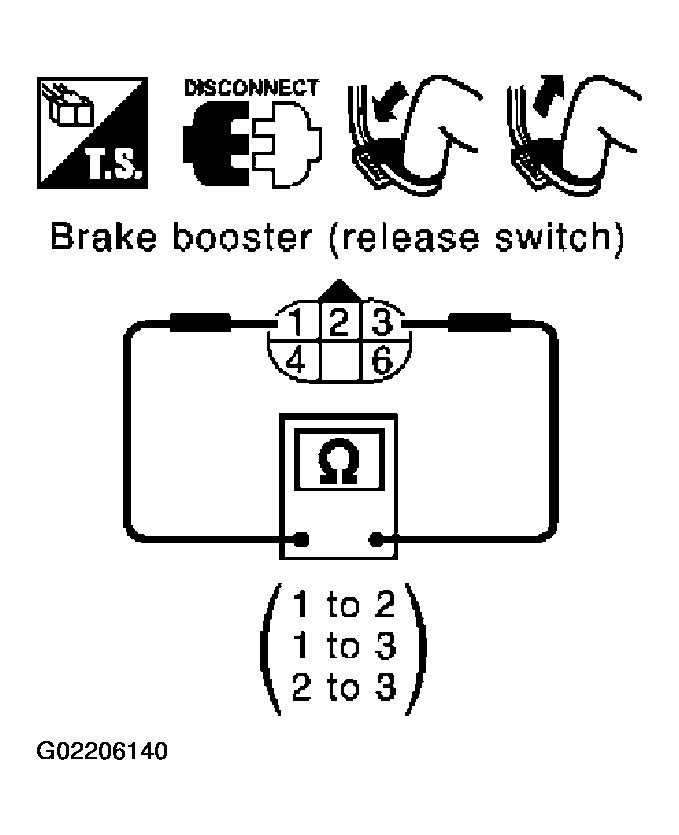

Fig 1: Checking Release Switch

Courtesy of NISSAN MOTOR CO., U.S.A.

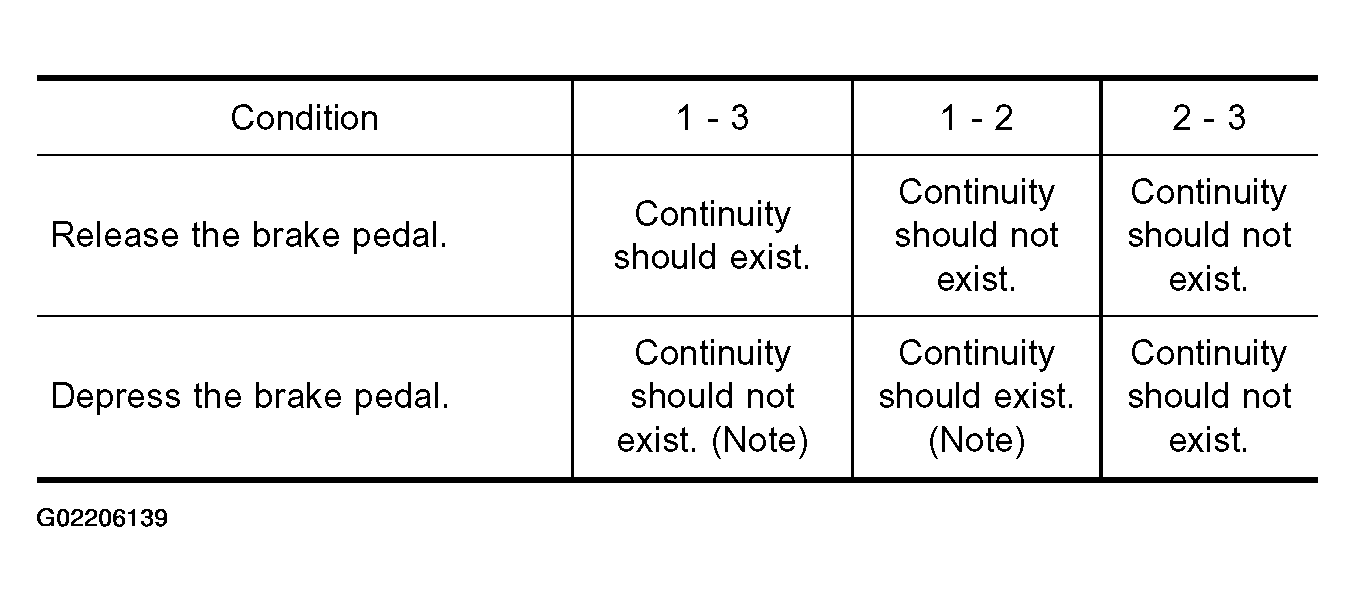

Fig 2: Continuity Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: However, if pedal is depressed insufficiently, resistance value may remain unchanged.
