Park/Neutral Position Switch
Park/Neutral Position Switch

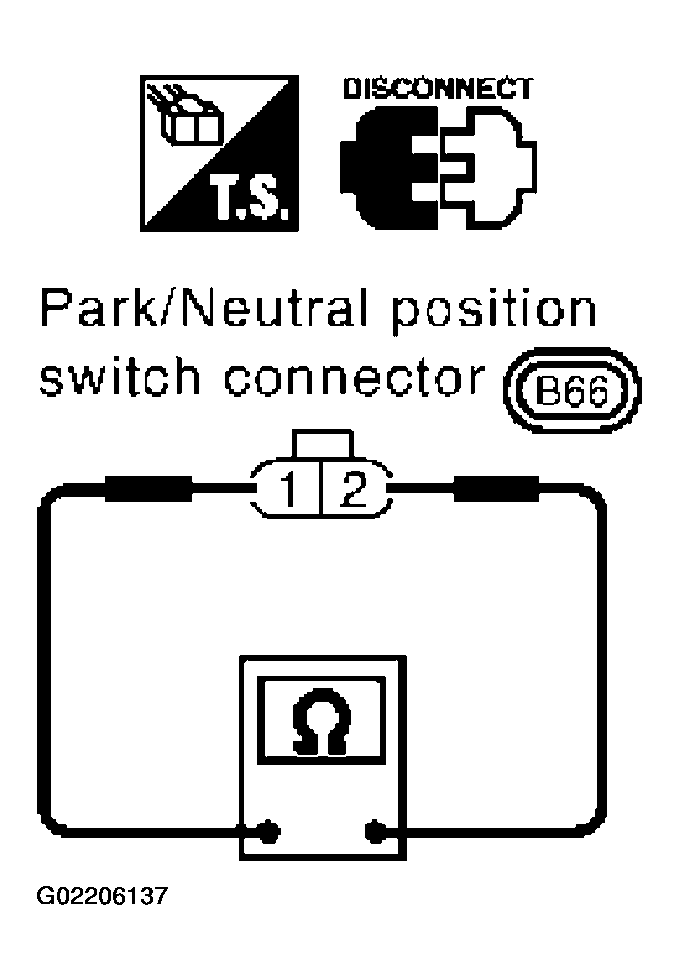

Fig 1: Checking Park/Neutral Position Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

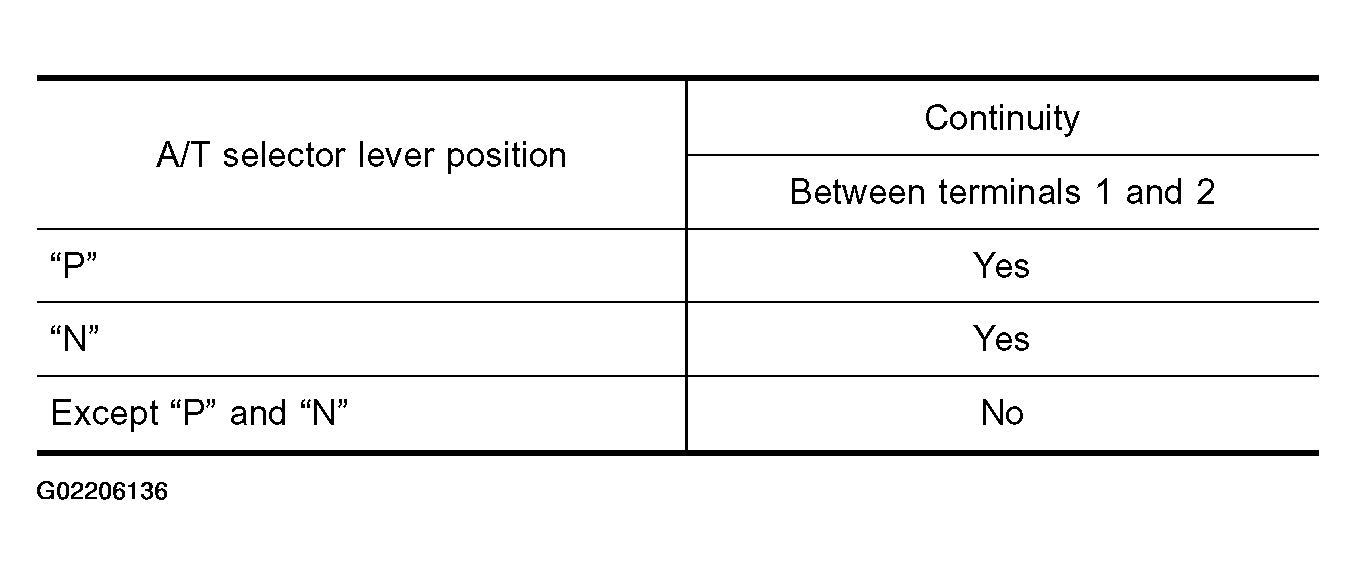

Fig 2: Continuity Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
