How To Perform

Switch the navigation system mode to self-diagnosis by pushing both "MAP" and "D/N" switches at the same time for more than 5 seconds.

Fig 1: Identifying MAP And D/N Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "Confirmation/ adjustment".

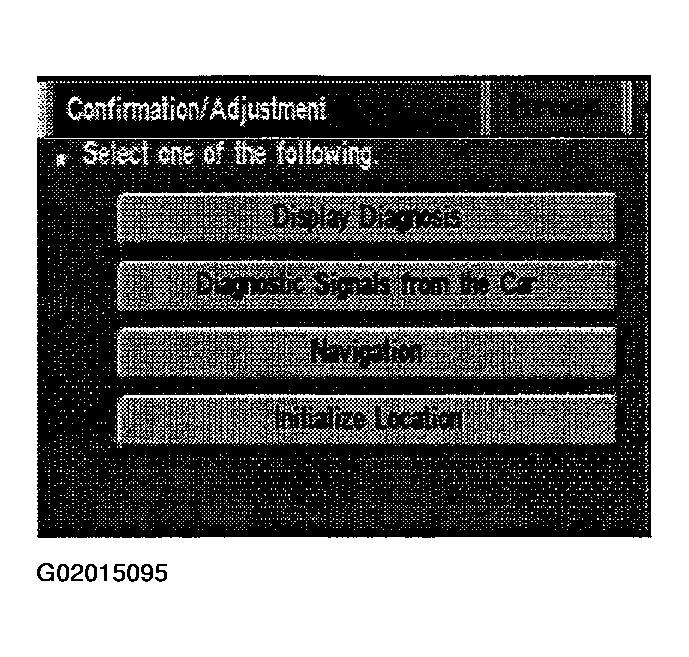

Fig 2: Identifying Confirmation/ Adjustment Display On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "Initialize Location". Then the previous screen is displayed.

Fig 3: Identifying Initialize Location Display On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Push "Previous" switch.

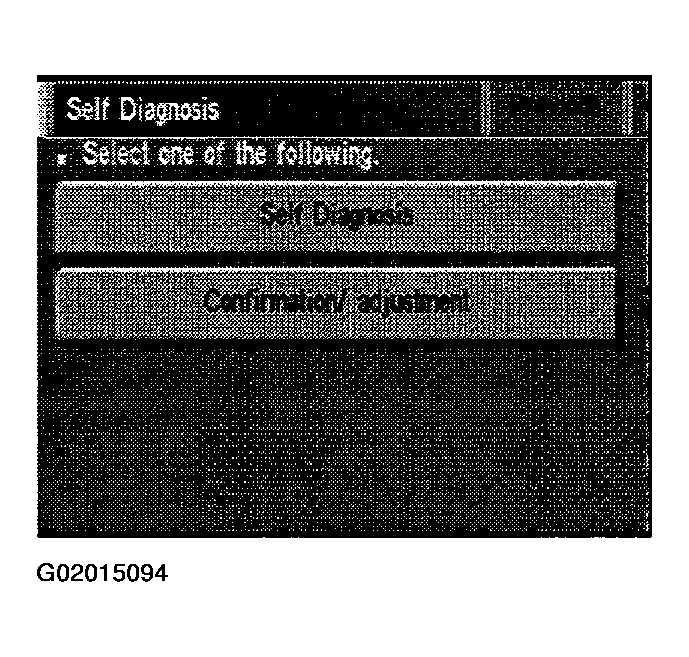

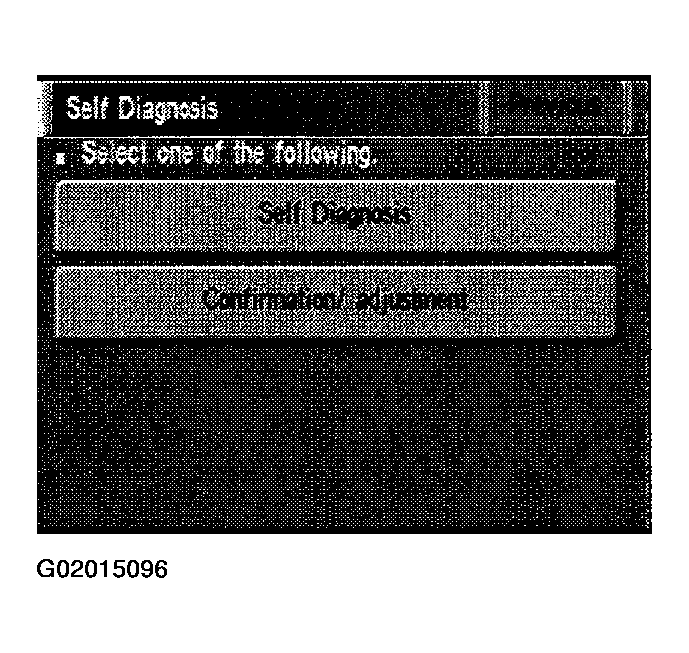

Fig 4: Displaying Self Diagnosis Mode On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Push the "MAP" switch.
Touch "Setting".

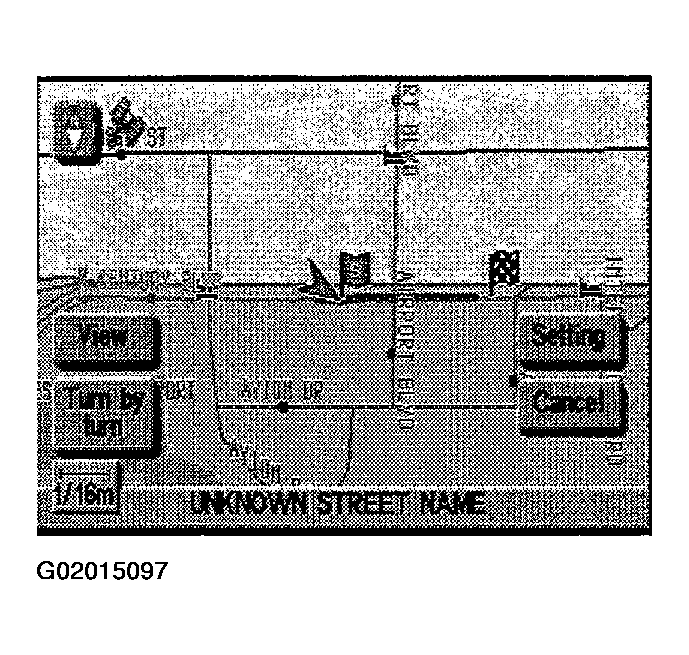

Fig 5: Identifying Unknown Street Name Display On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "System Setting".

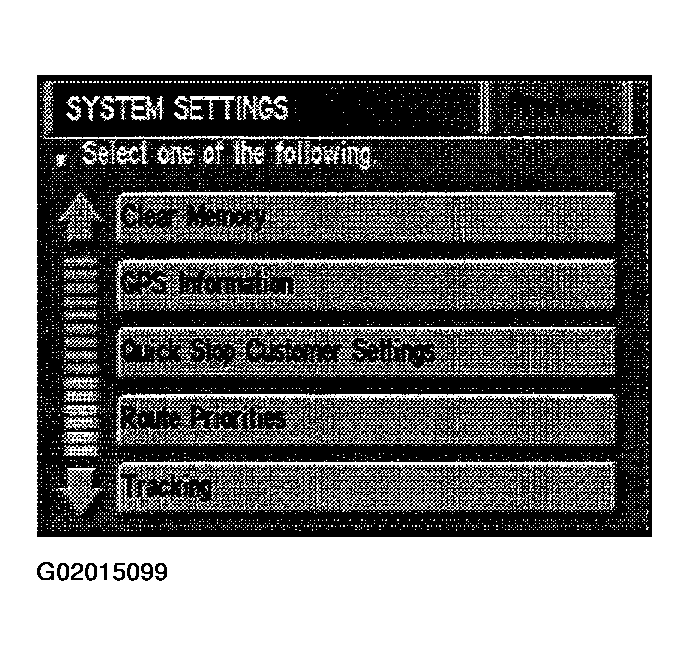

Fig 6: Identifying System Setting Display On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "GPS Information".

Fig 7: Identifying GPS Information Display On Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
More than one GPS satellite icon turns green. (It may take 1 to 15 minutes.)
NOTE: Drive the vehicle for a while* in order to change the receiving condition of the radio wave from the GPS satellite if the GPS icon does not turn green.
*The driving distance which is necessary depends on the receiving condition of the radio wave from the GPS satellite.

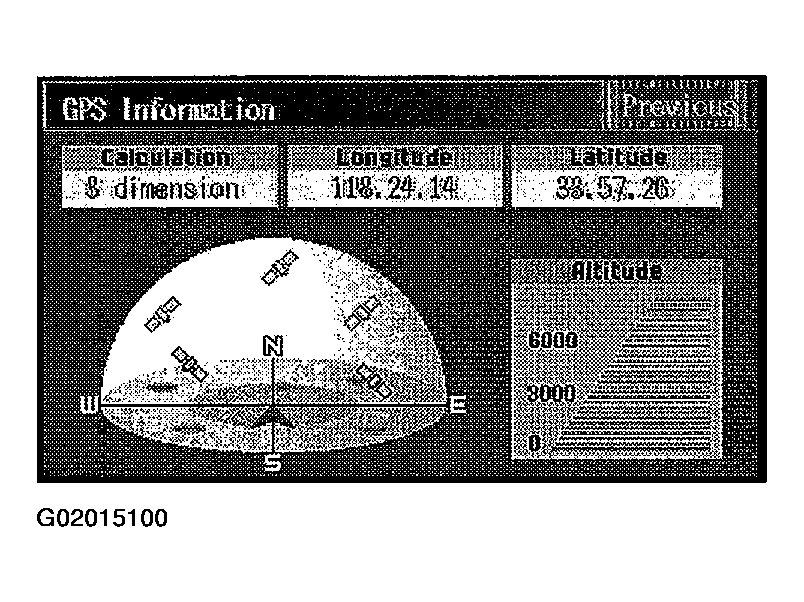

Fig 8: Displaying GPS Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Push "MAP" switch and check the following.
- Confirm that the GPS icon on the map turns green.
- Then the position marker should show the current location.
- Position marker rotates corresponding to the movement of the vehicle.
Initialization is completed.

Fig 9: Identifying MAP Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
