Home >> Infiniti >> 2002 >> QX4 4WD >> Repair and Diagnosis >> Transmission >> Transfer Case - ATX14A >> SERVIVE Data And Specifications(SDA) >> Control Valve >> Valve

Control Valve: Valve

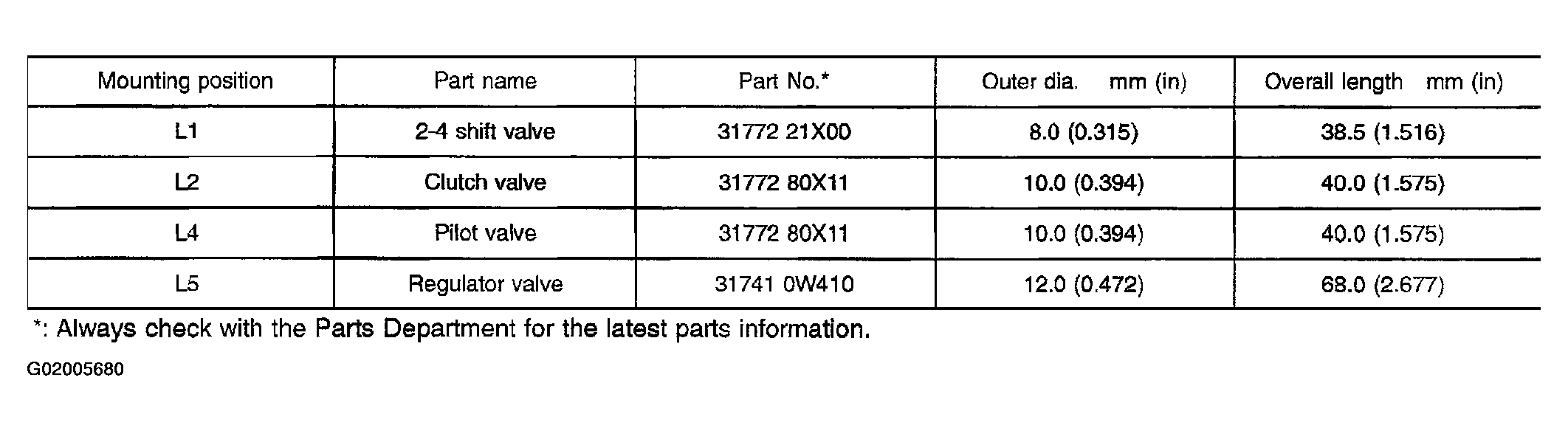

Fig 1: Valve Specifications

G02005680

Courtesy of NISSAN MOTOR CO., U.S.A.
