Infiniti
>>
2002
>>
QX4 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case - ATX14A
>>
SERVIVE Data And Specifications(SDA)
>>
Control Valve
>>
Spring
Control Valve: Spring

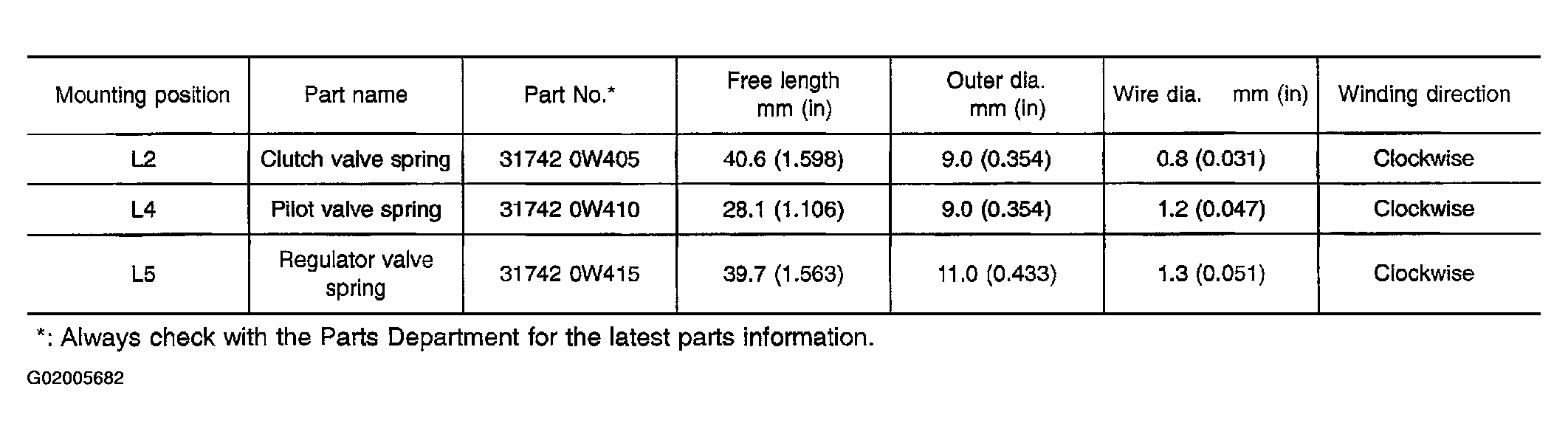

Fig 1: Spring Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Spring Specifications (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
