LEMON Manuals
: Even more car manuals for everyone
Home
>>
Infiniti
>>
2002
>>
QX4 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case - ATX14A
>>
Overhaul
>>
Transfer Components
Transfer Components

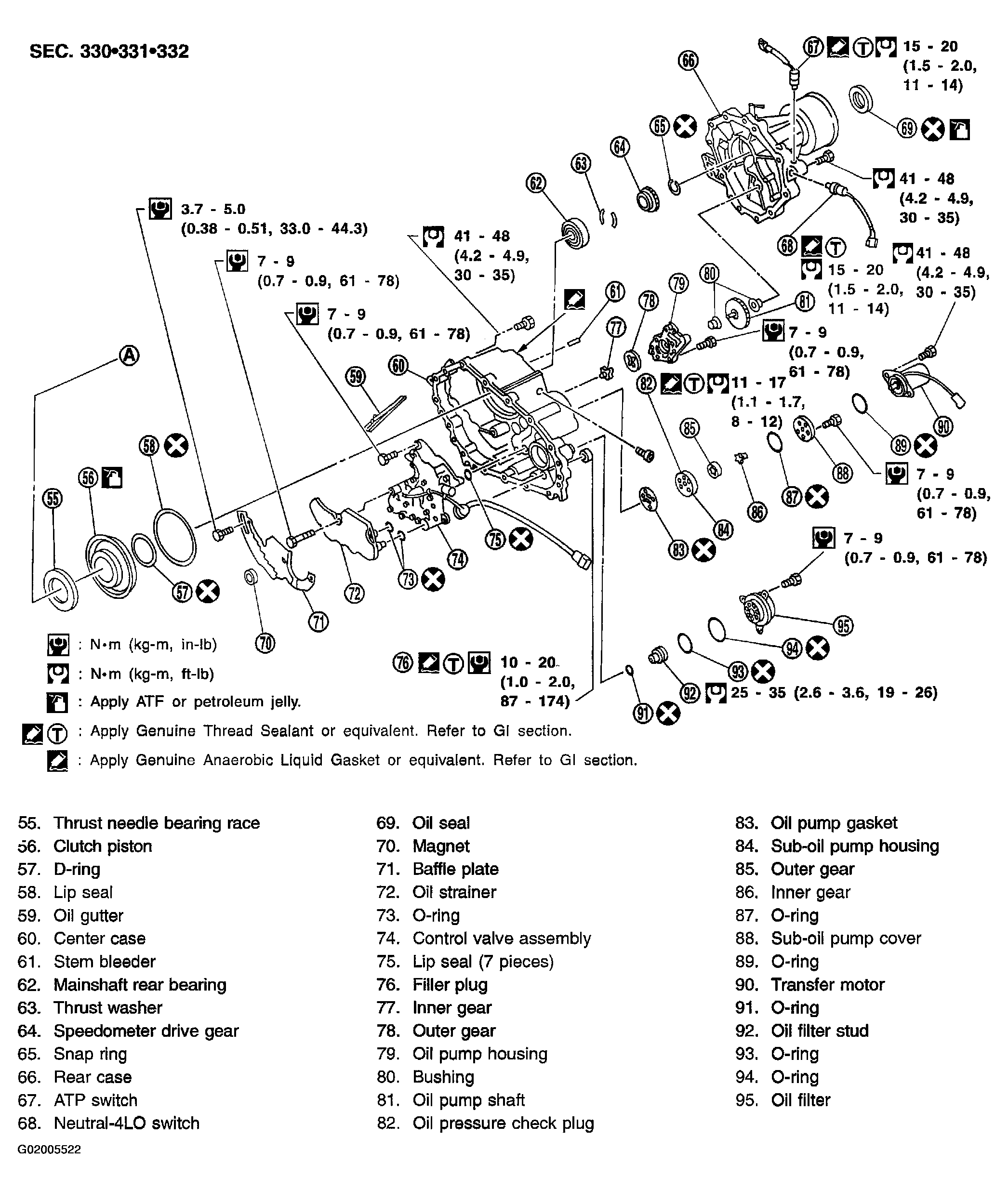

Fig 1: Transfer Replacement Components With Torque Specifications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

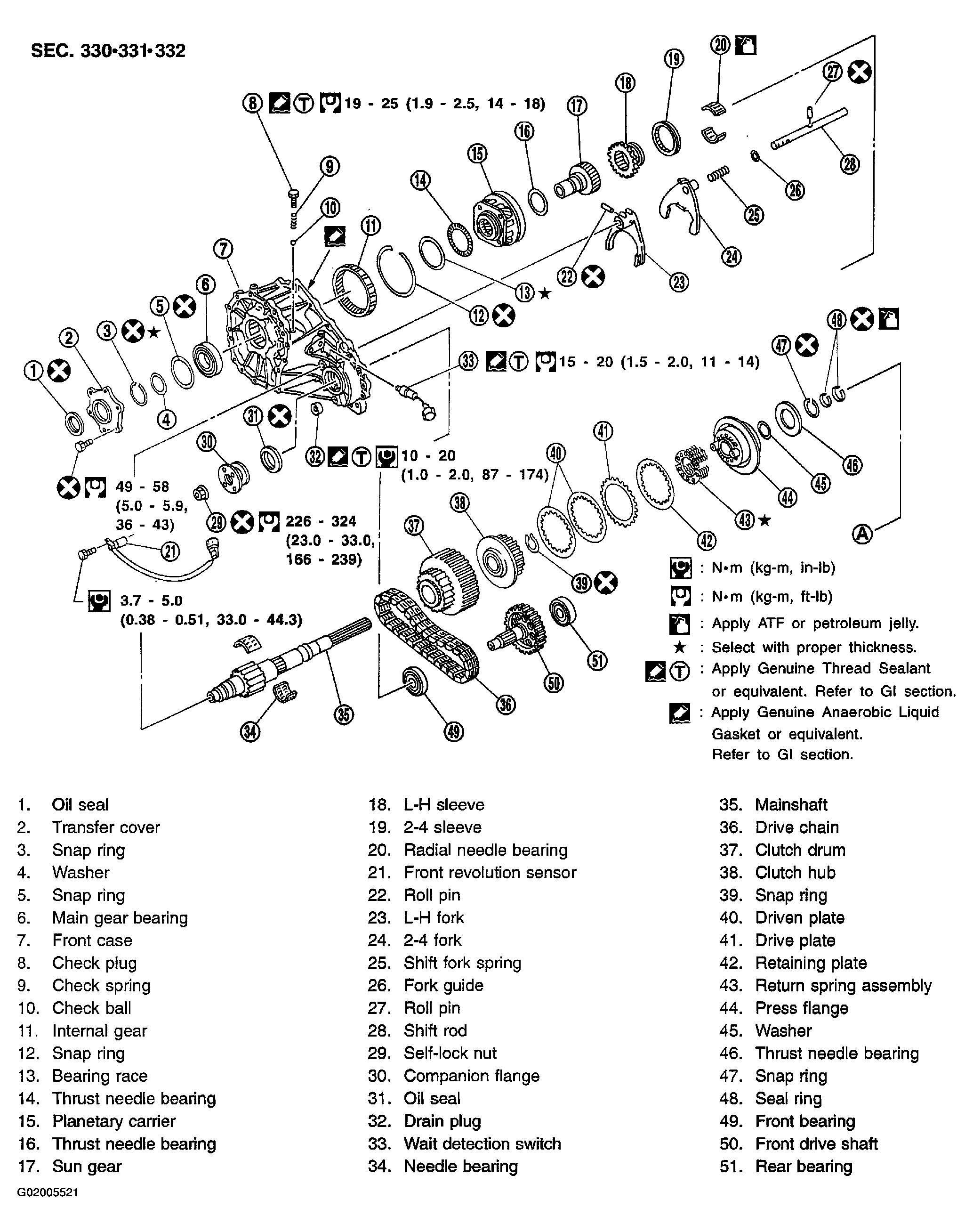

Fig 2: Transfer Replacement Components With Torque Specifications (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
