Infiniti
>>
2002
>>
QX4 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case - ATX14A
>>
All-Mode 4WD System
>>
Control System
>>
Hydraulic Control Circuits
Hydraulic Control Circuits

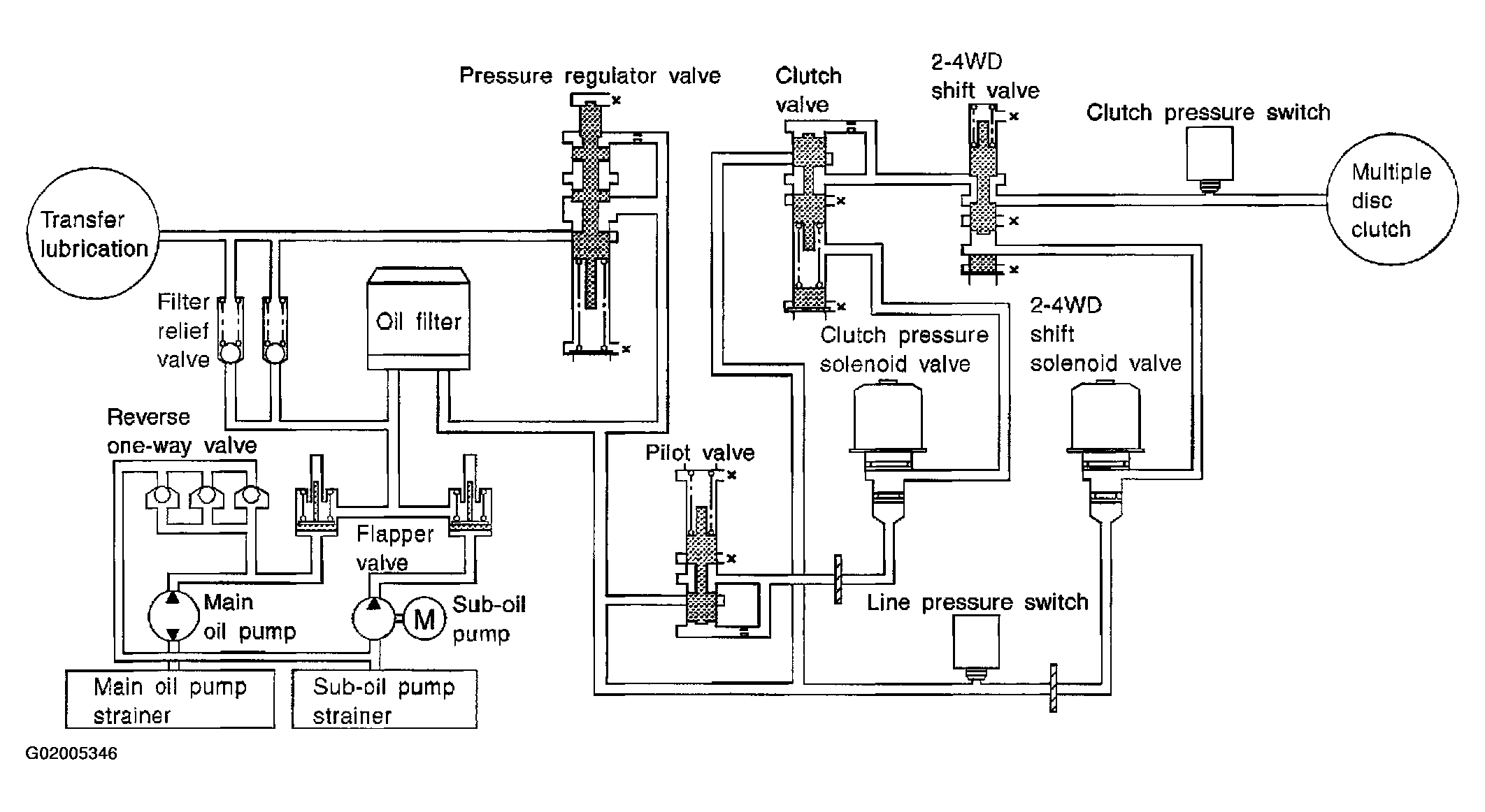

Fig 1: All-Mode 4WD System Hydraulic Control Circuits
Courtesy of NISSAN MOTOR CO., U.S.A.
