Steering Transfer Gear: Installation

  1. Set wheels in the straight-ahead position.
  2. Install transfer gear assembly.
  3. Install column lower joint while aligning groove with protrusions on the steering gear rear cover cap.
  4. Tighten bolt while aligning groove on steering gear. Before tightening bolt, ensure it is inserted correctly.

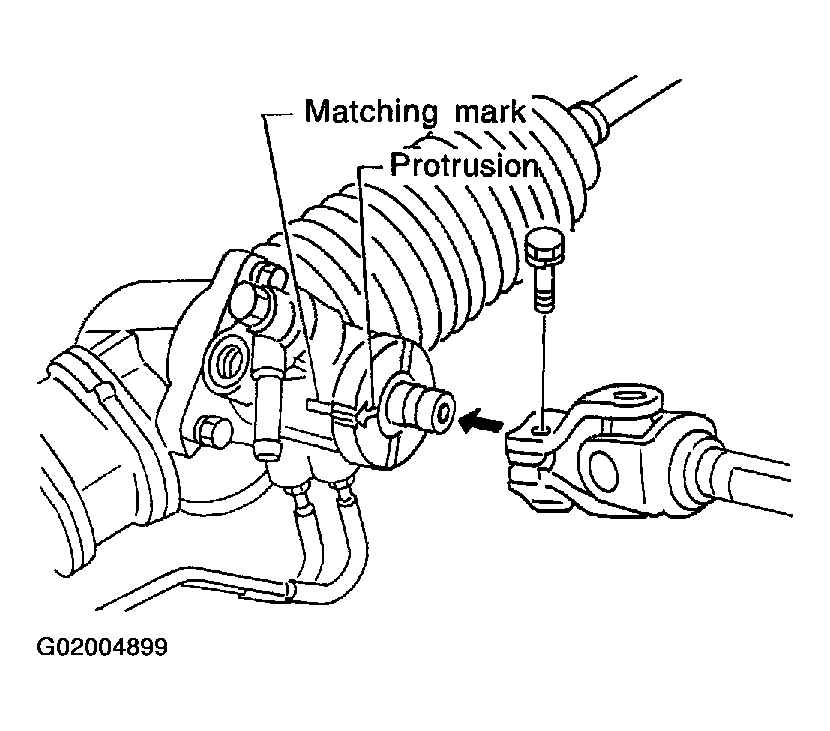

    Fig 1: Aligning Groove With Protrusions On Steering Gear Rear Cover Cap
    G02004899Courtesy of NISSAN MOTOR CO., U.S.A.
  5. When attaching steering column upper and lower joint to transfer gear, it must be positioned as shown in figure at left.

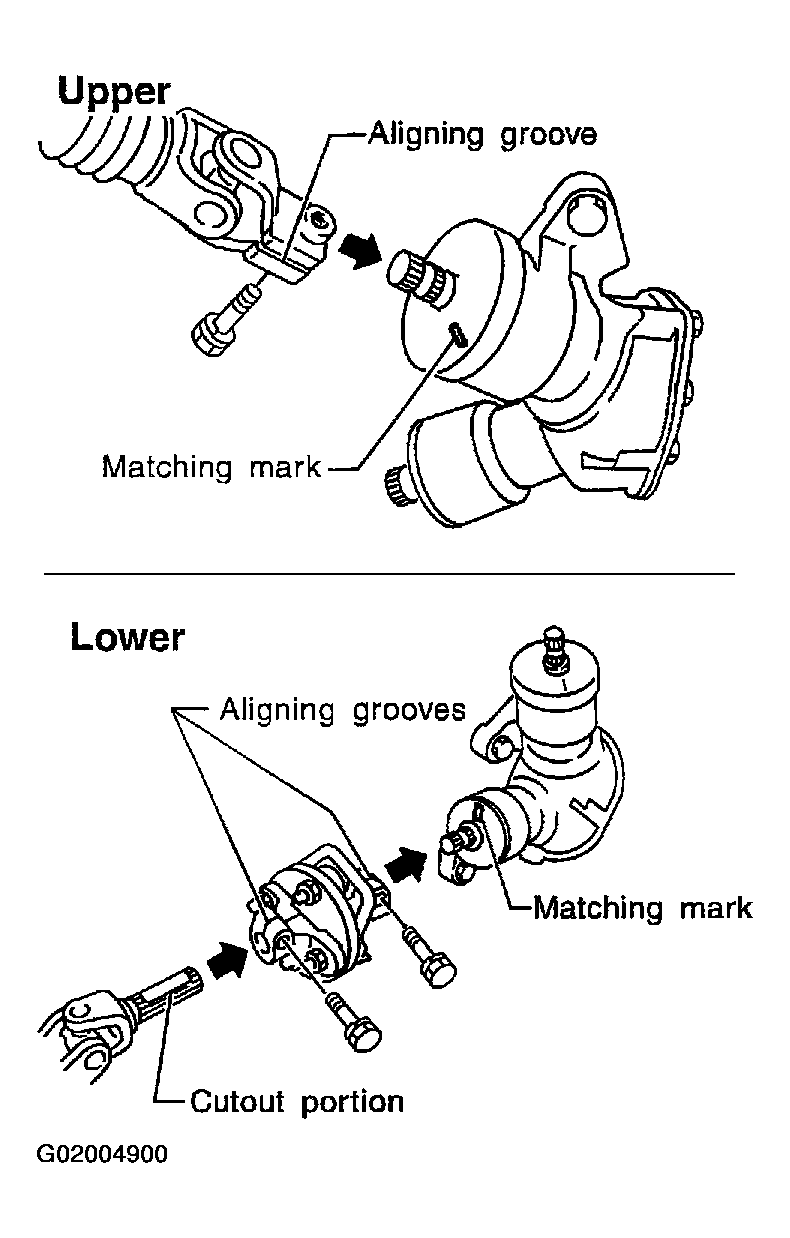

    Fig 2: Attaching Steering Column Upper And Lower Joint To Transfer Gear
    G02004900Courtesy of NISSAN MOTOR CO., U.S.A.
