Home >> Infiniti >> 2002 >> QX4 4WD >> Repair and Diagnosis >> Steering >> Steering Column >> Steering System >> Power Steering Gear And Linkage >> Components

Power Steering Gear And Linkage: Components

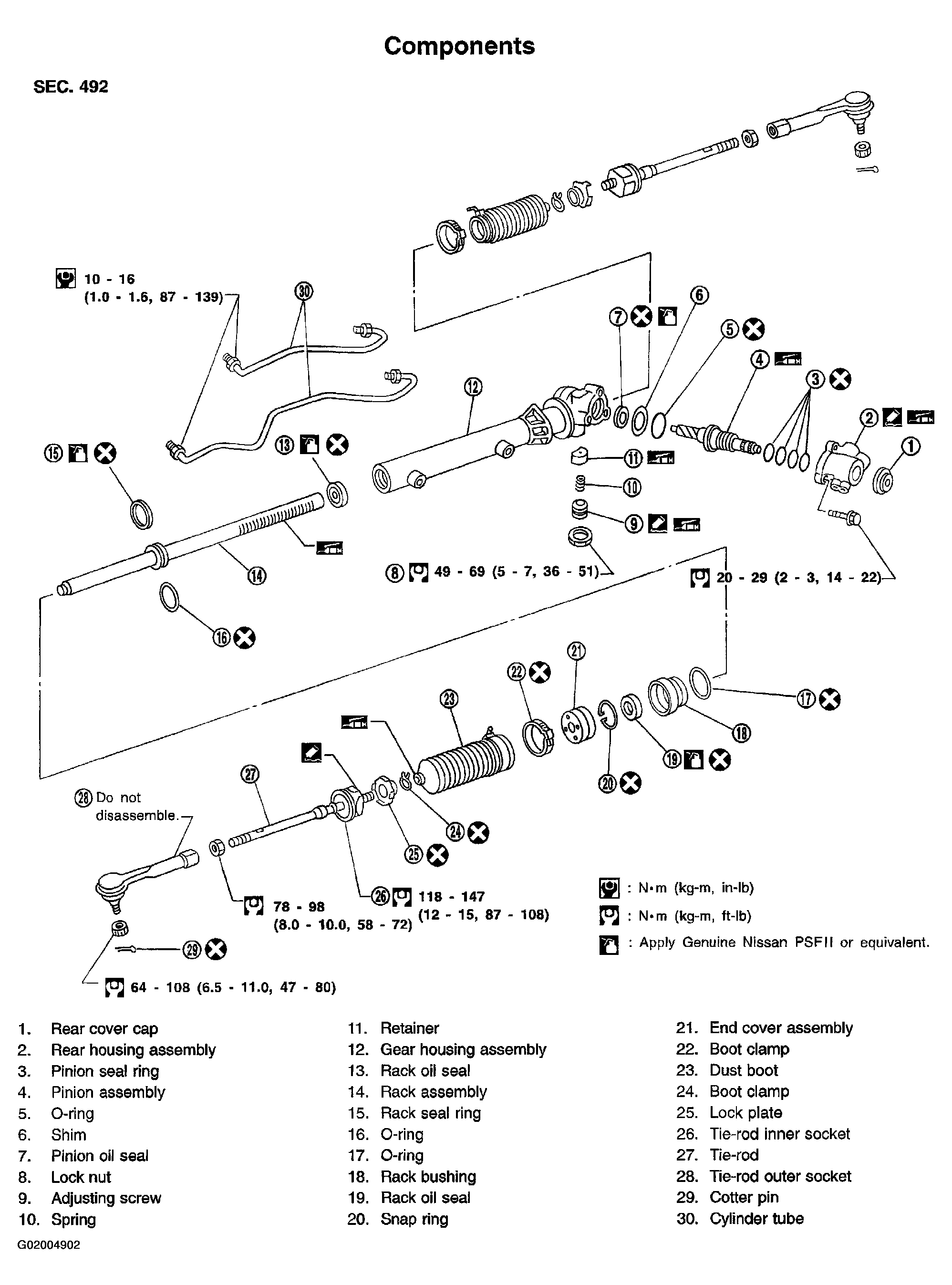

Fig 1: Exploded View Of Power Steering Gear And Linkage Components

G02004902

Courtesy of NISSAN MOTOR CO., U.S.A.
