Front Wheel Turning Angle

  1. Rotate steering wheel all the way right and left; measure turning angle.
    1. Turning angle of full turns:
      1. Refer to  WHEEL ALIGNMENT  .

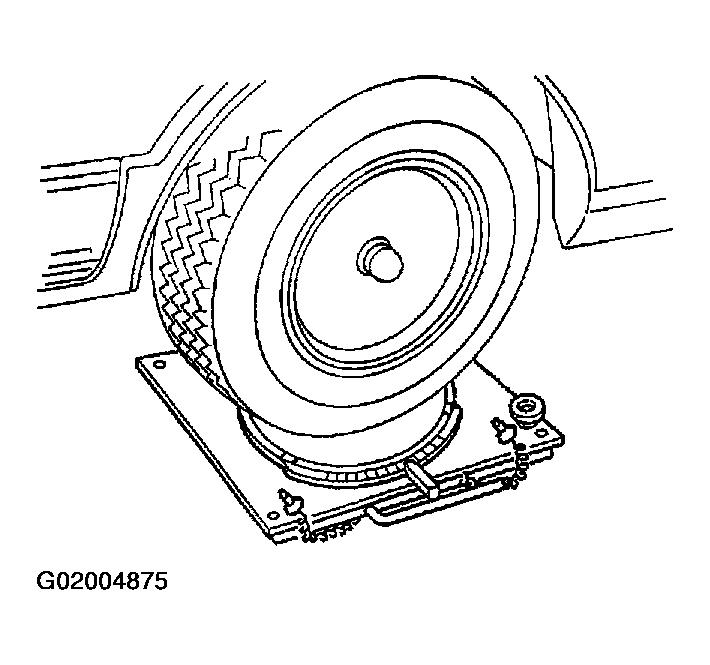

      Fig 1: Measuring Turning Angle
      G02004875Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If it is not within specification, check rack stroke.
    1. Rack stroke "S":
      1. Refer to SDS (  STEERING GEAR AND LINKAGE  ).
      Fig 2: Checking Rack Stroke
      G02004876Courtesy of NISSAN MOTOR CO., U.S.A.
