Data Monitor Mode
Data Monitor Mode

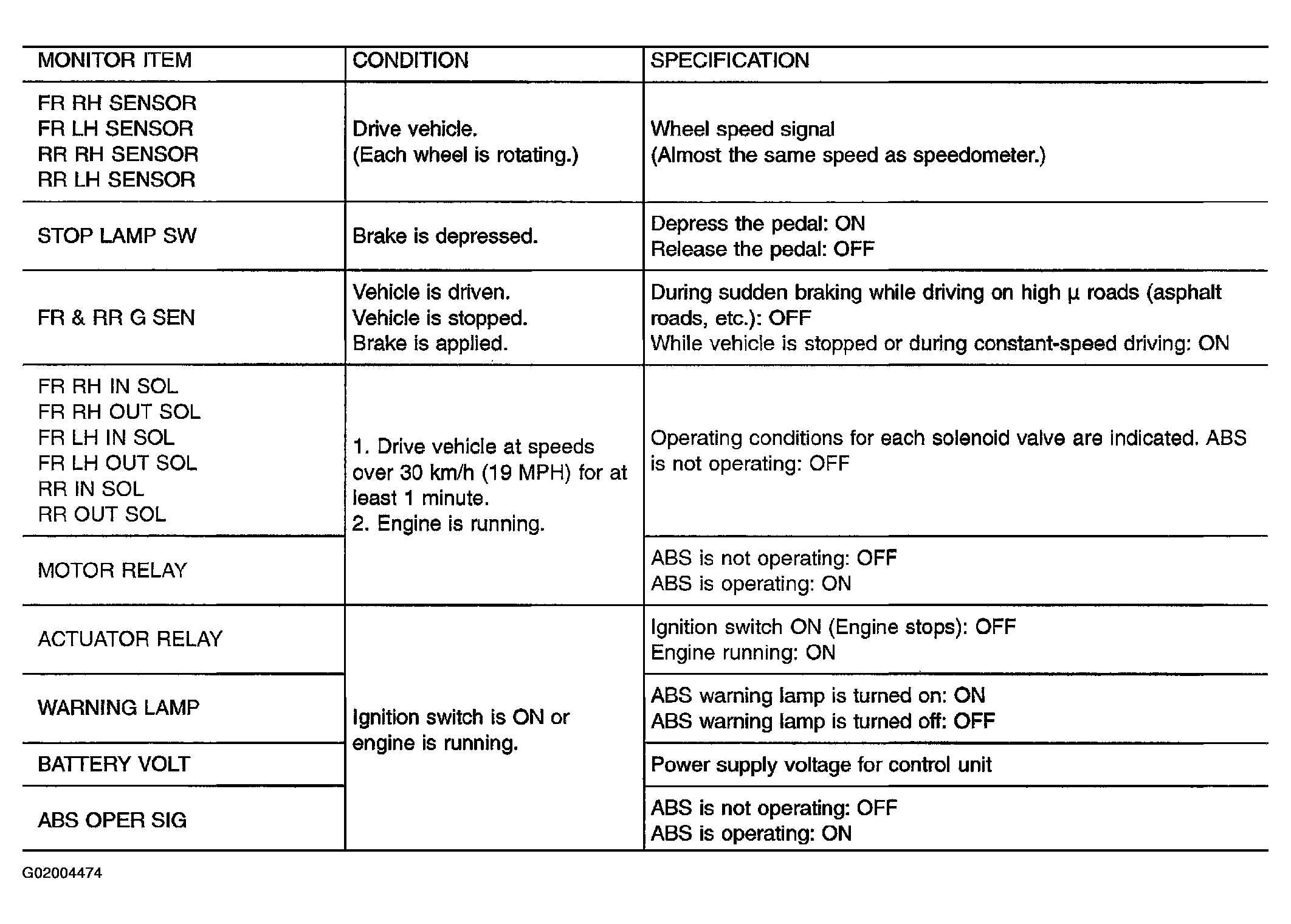

Fig 1: Data Monitor Mode Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
