Front Disc Brake: Removal

WARNING: Clean brake pads with a vacuum dust collector to minimize the hazard of airborne particles or other materials.

CAUTION: Suspend caliper assembly with wire so as not to stretch brake hose.

Remove torque member fixing bolts and connecting bolt.

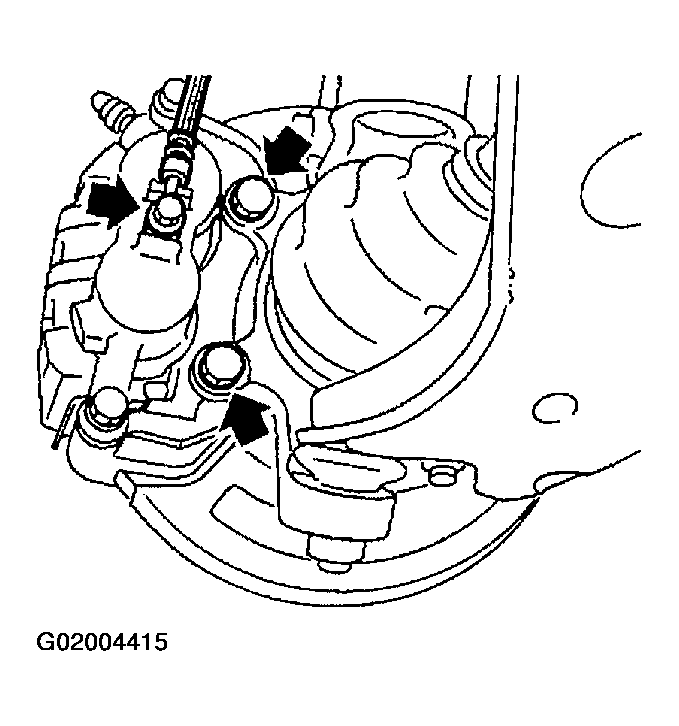

Fig 1: Removing Torque Member Fixing Bolts And Connecting Bolt

Courtesy of NISSAN MOTOR CO., U.S.A.

It is not necessary to remove connecting bolt except for disassembly or replacement of caliper assembly. In this case, suspend caliper assembly with wire so as not to stretch brake hose.
