With CONSULT-II

For keyfob programming procedures using CONSULT-II, see Fig 1 -Fig 2 .

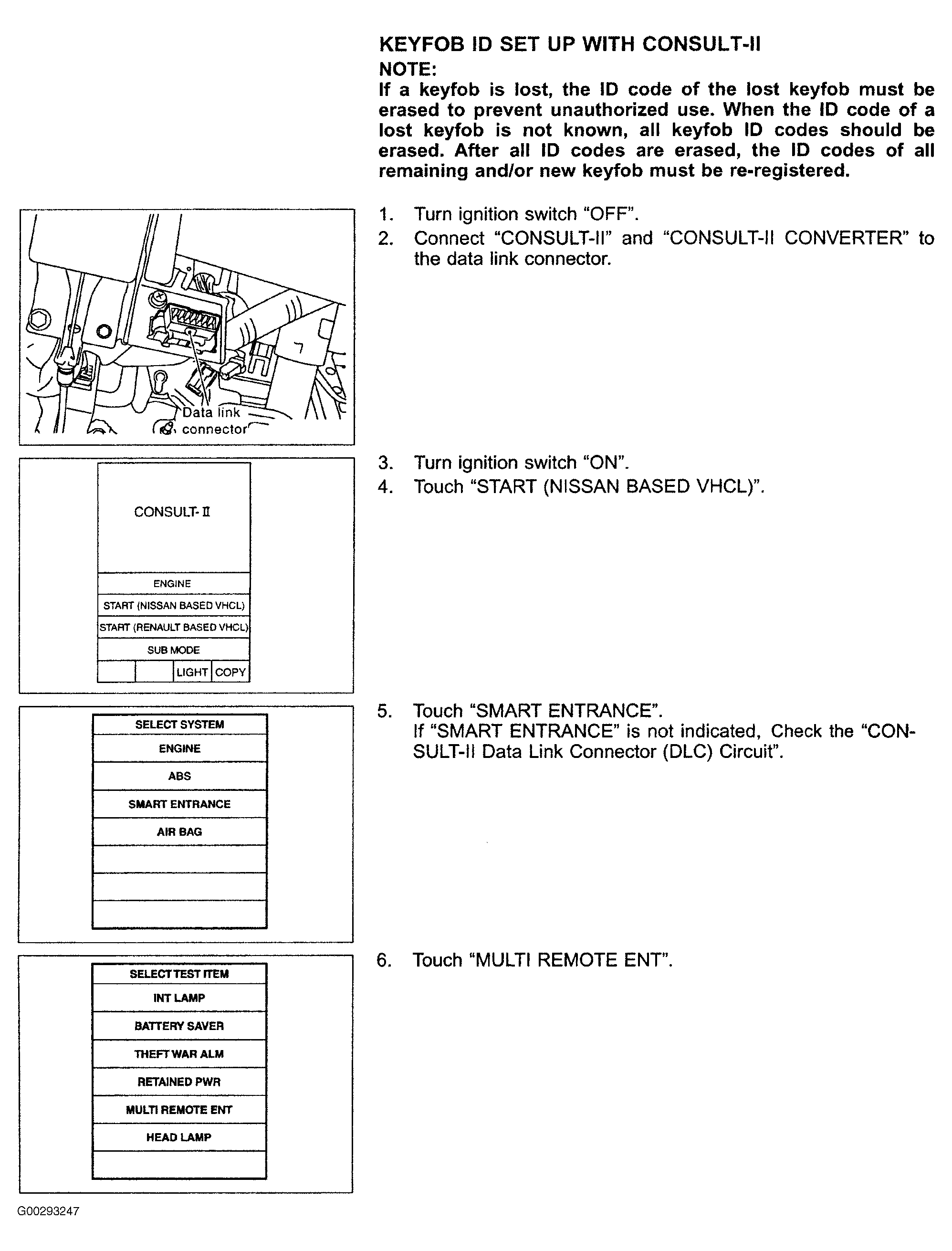

Fig 1: Keyfob Programming Procedures Using CONSULT-II (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

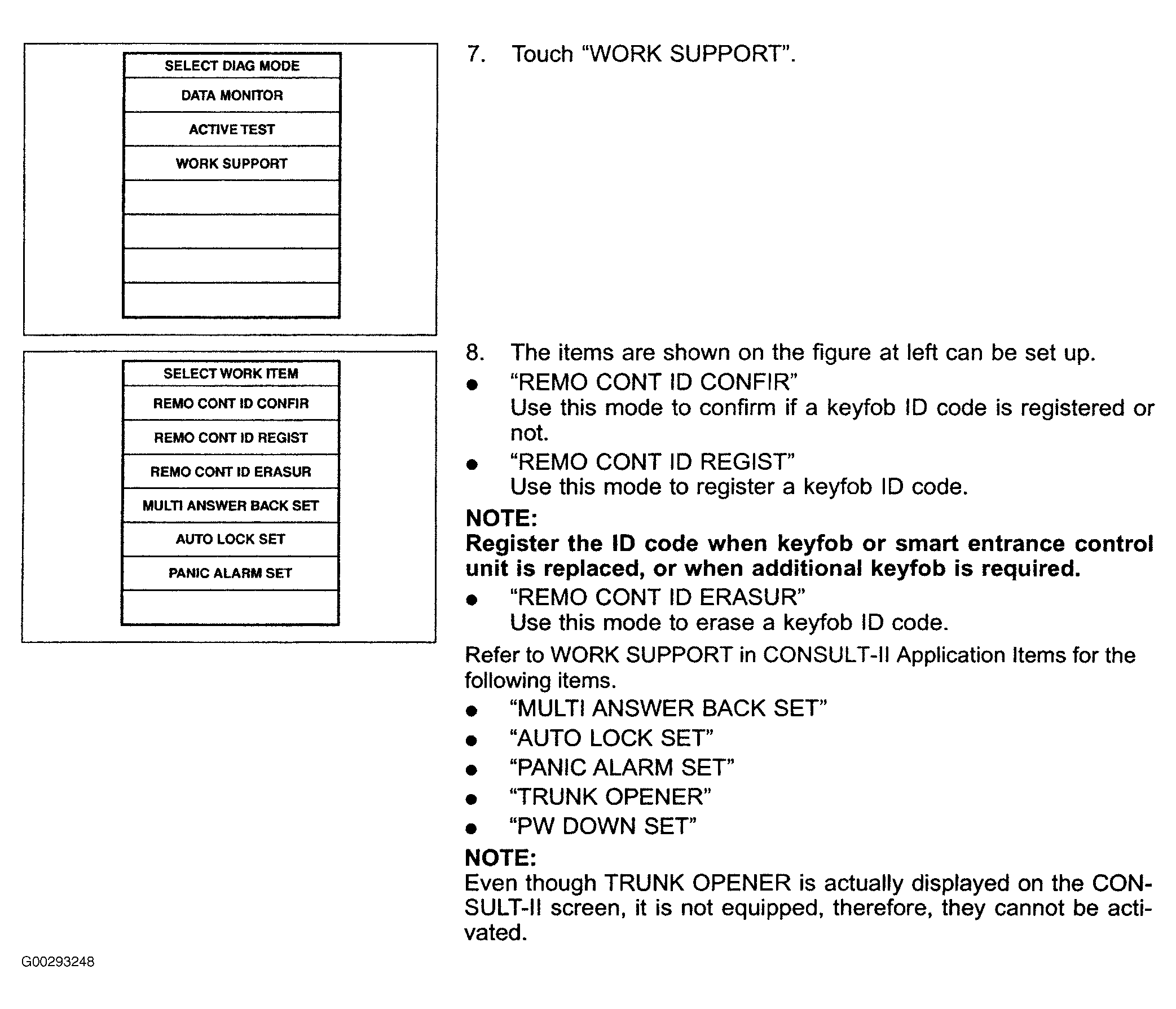

Fig 2: Keyfob Programming Procedures Using CONSULT-II (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
