Home >> Infiniti >> 2002 >> Q45 >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Removal & Installation >> Transmission Assembly >> Removal and Installation >> Notes

Removal and Installation: Notes

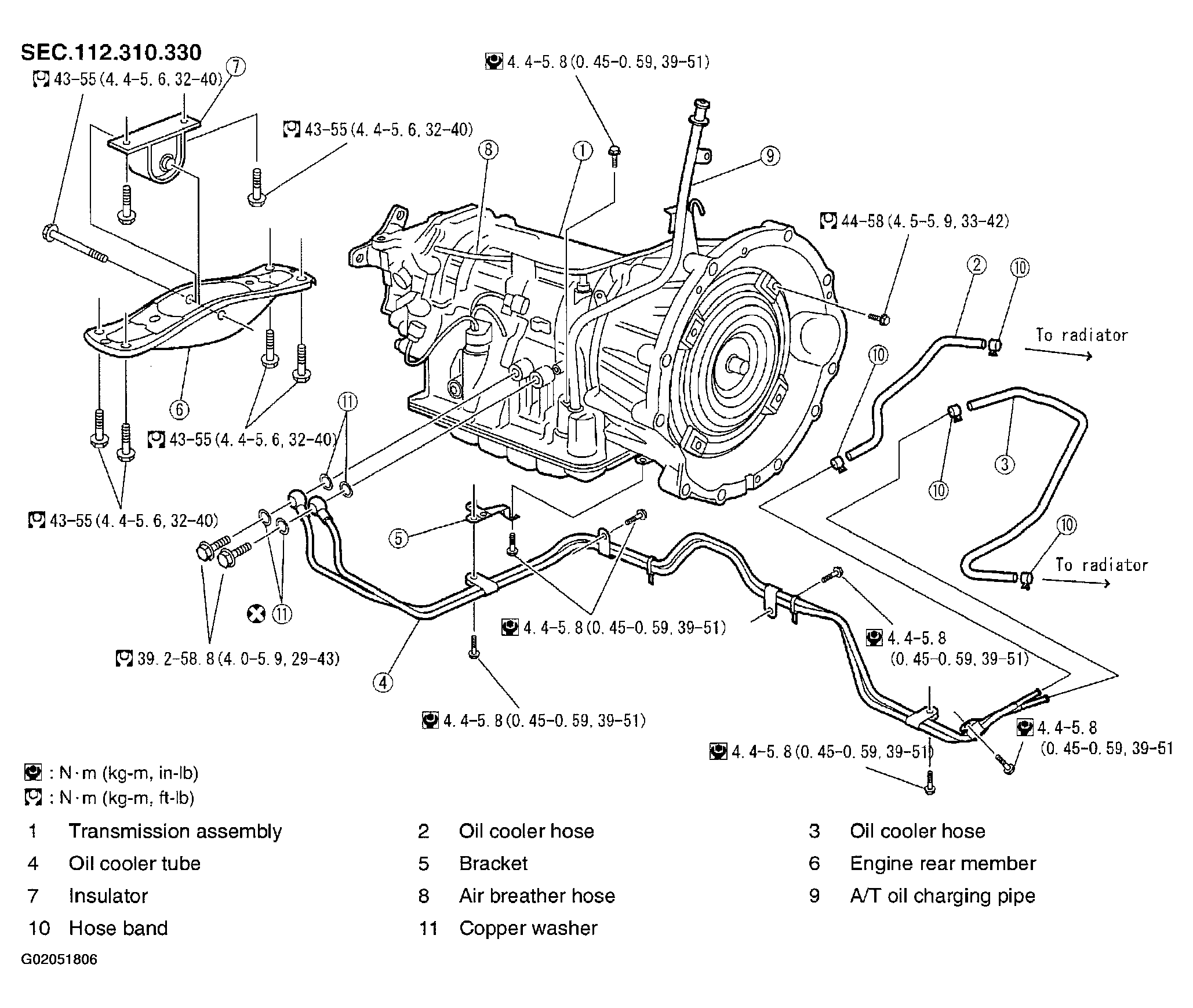

Fig 1: Identifying Transmission & Components

G02051806

Courtesy of NISSAN MOTOR CO., U.S.A.
