CONSULT-II Reference Value in Data Monitor Mode

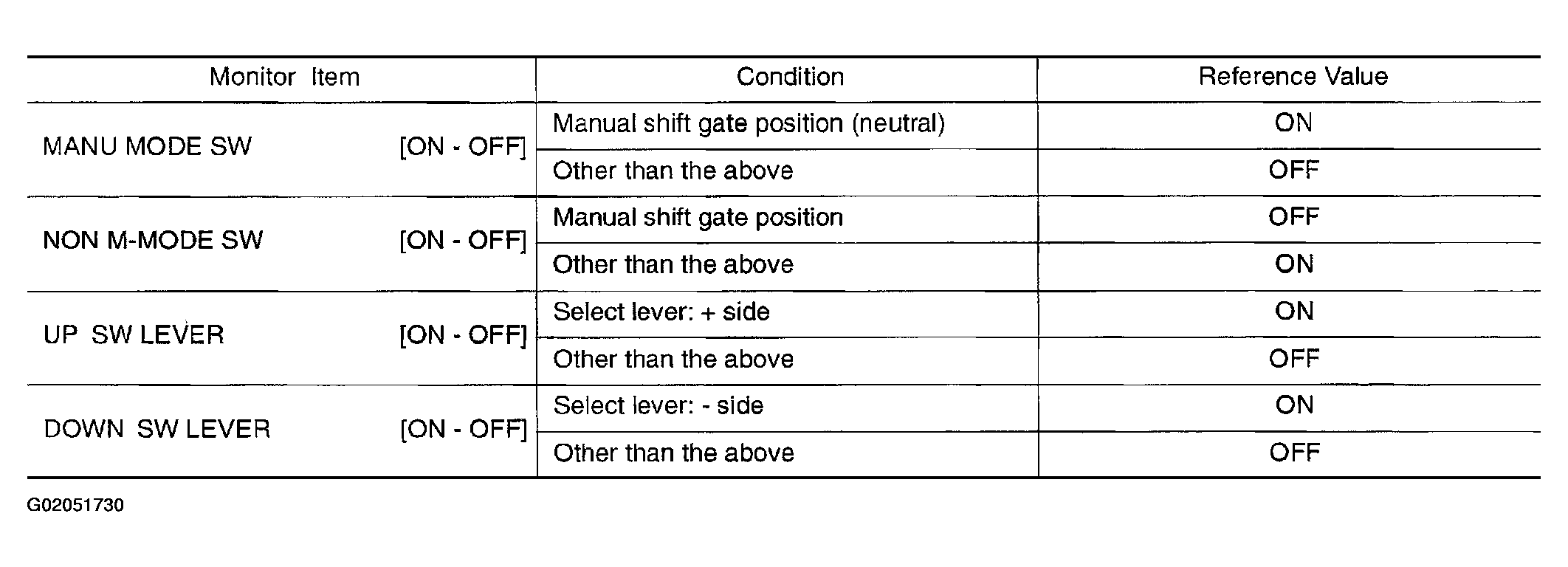

Fig 1: Monitor Item Condition Reference Value Table
G02051730Courtesy of NISSAN MOTOR CO., U.S.A.
