3. Check Electronic Key Insert Signal 2

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Connect steering lock control unit connector.
Check voltage between steering lock control unit connector M69 terminal 2 (PU/W) and ground.

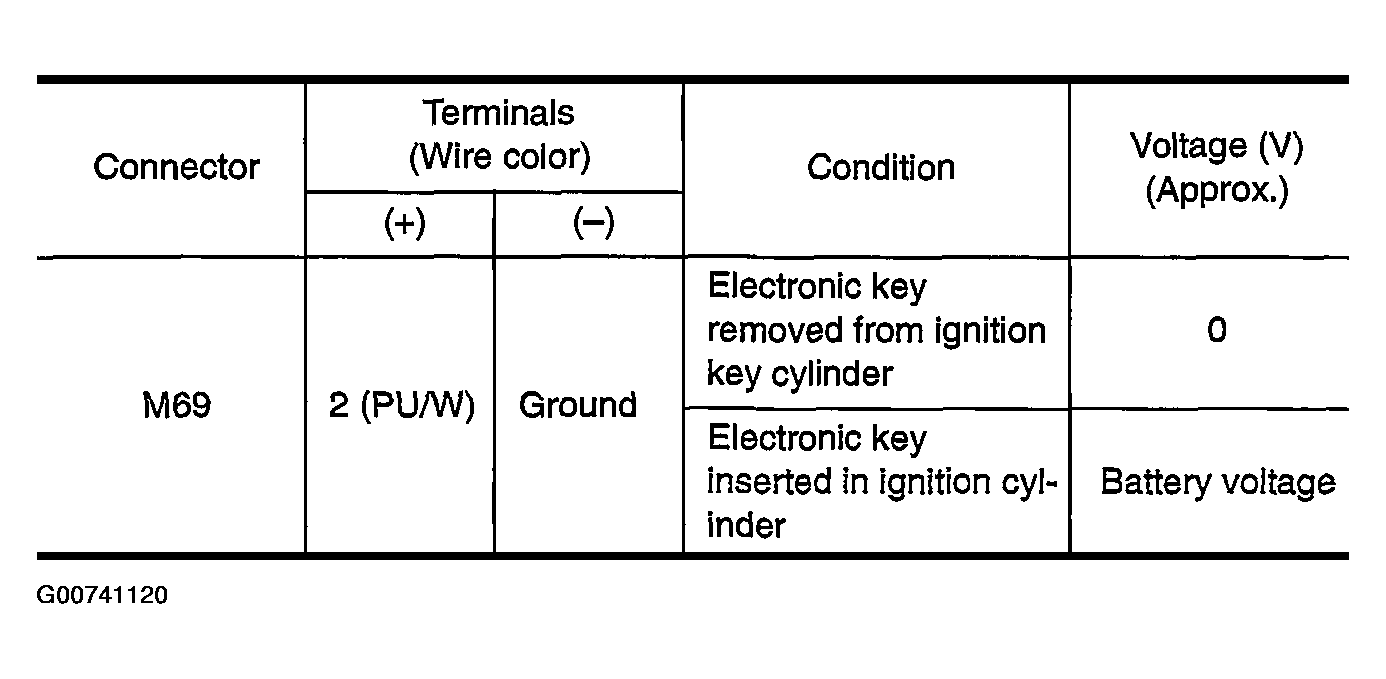

Fig 1: Checking Electronic Key Insert Signal 2 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

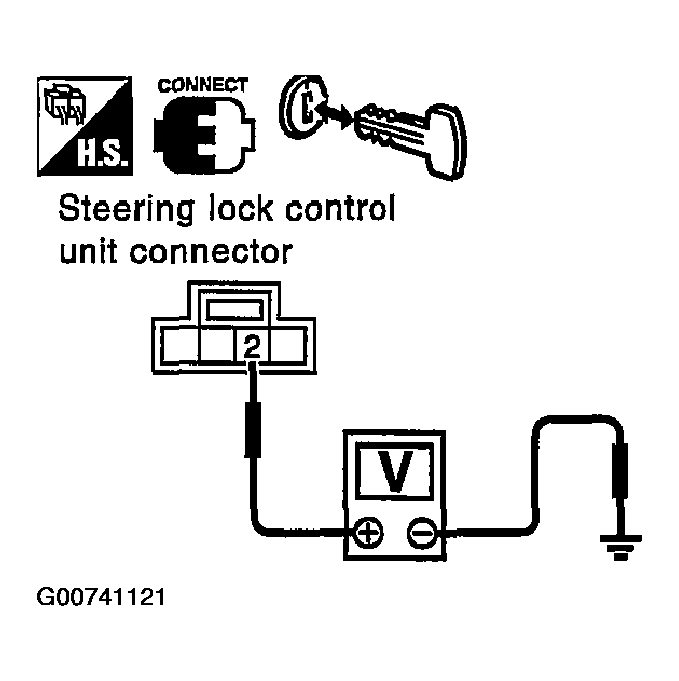

Fig 2: Checking Electronic Key Insert Signal 2 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 4.
NG : Check harness for open or short between key switch and steering lock control unit.
