1. Check Electronic Key Insert Signal

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between NATS IMMU connector M32 terminal 2 (PU/W) and ground.

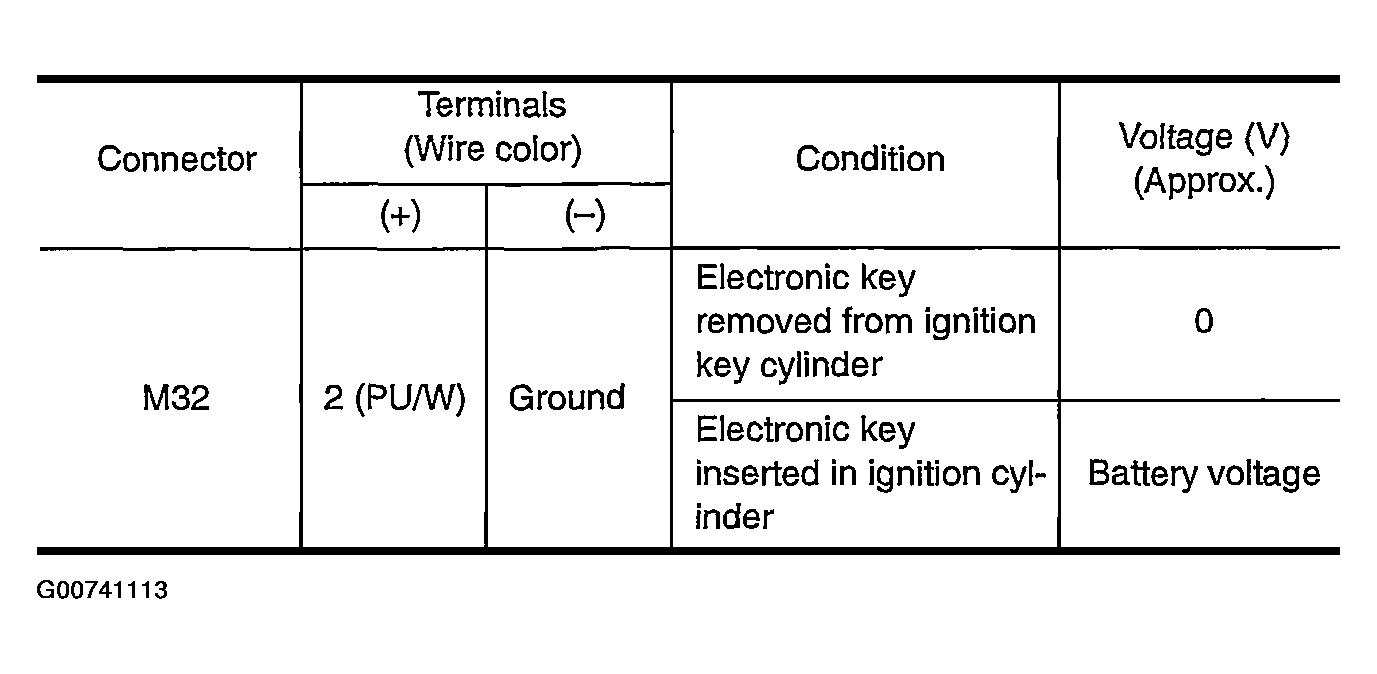

Fig 1: Checking Electronic Key Insert Signal (1 Of 2)
G00741113Courtesy of NISSAN MOTOR CO., U.S.A.

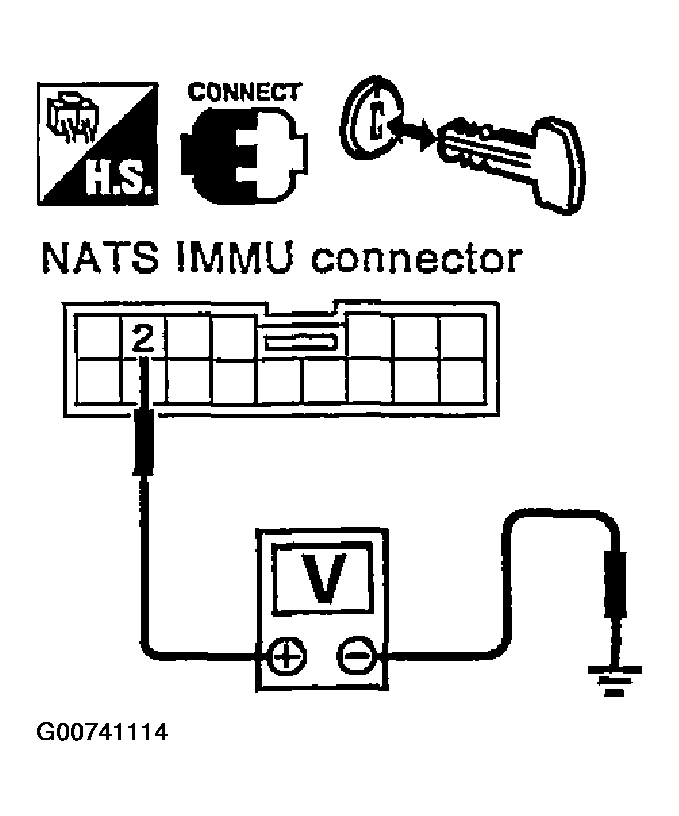

Fig 2: Checking Electronic Key Insert Signal (2 Of 2)
G00741114Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK : Replace NATS IMMU.
  2. NG : GO TO 2.
