Removal And Installation: Notes

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.

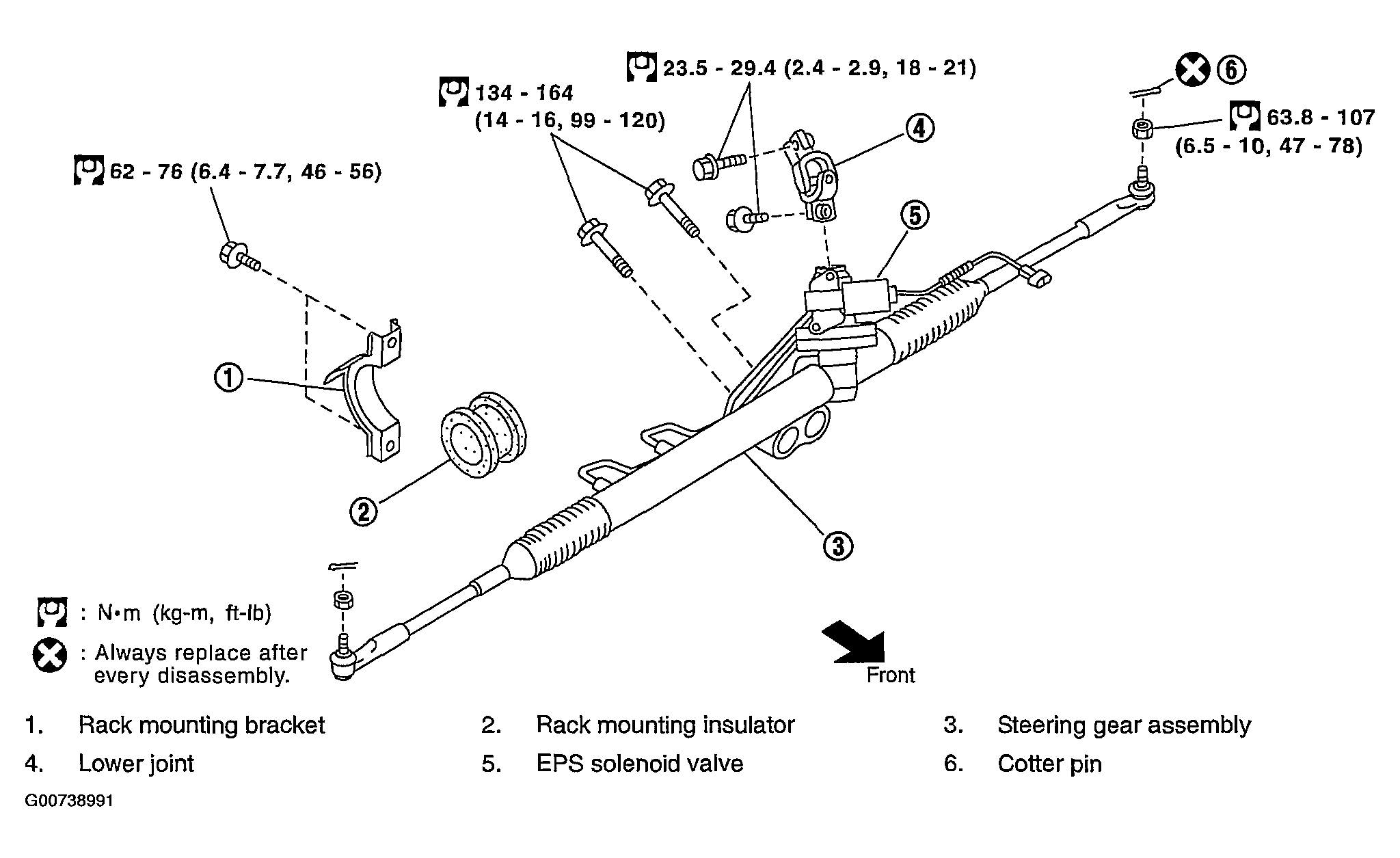

Fig 1: Displaying Power Steering Gear & Linkage Components
G00738991Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Spiral cable may snap due to steering operation if steering column is separated from steering gear assembly. Therefore fix steering wheel with a string to avoid turns.
