2. Vehicle Speed Signal Check 1

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect AV control unit connector.
  2. Turn ignition switch ON.
  3. Check voltage between AV control unit harness connector M77 terminal 33 (OR/L) and ground.

    Approx. 3.5V or more

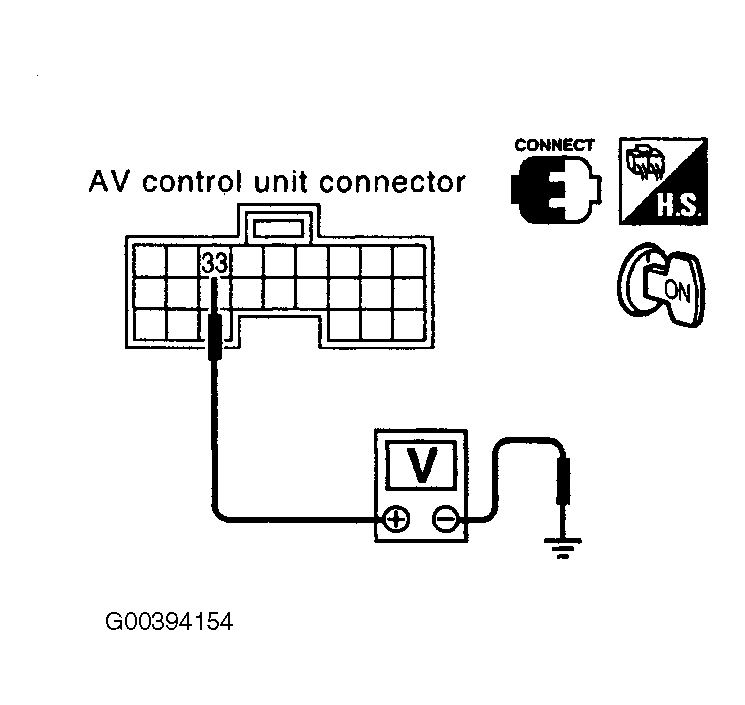

Fig 1: Vehicle Speed Signal Check 1
G00394154Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 3  .
  2. NG: Replace AV control unit.
