Removal And Installation Of Display: Removal

WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to INSTRUMENT PANEL ASSEMBLY .

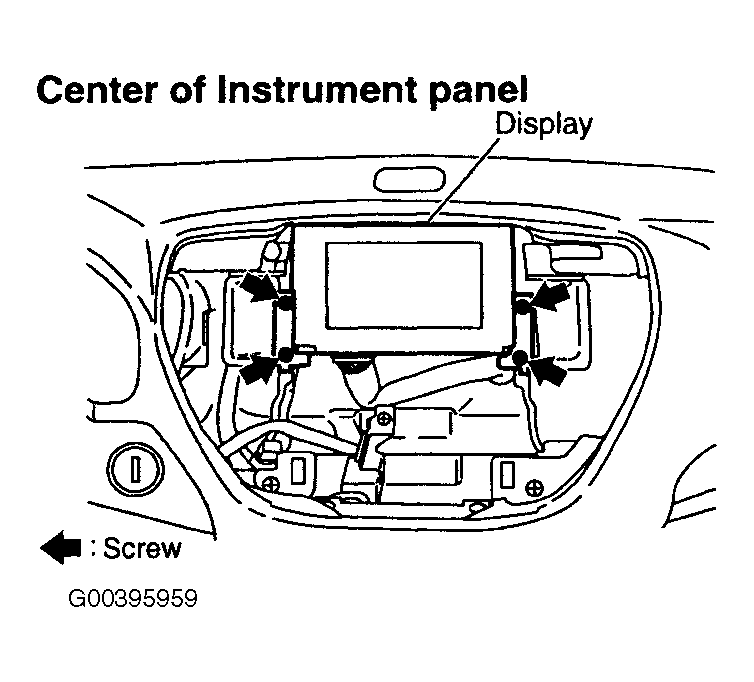

    2. Fig 1: Removing & Installing Display
    G00395959Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the screws (4), and remove the display.
