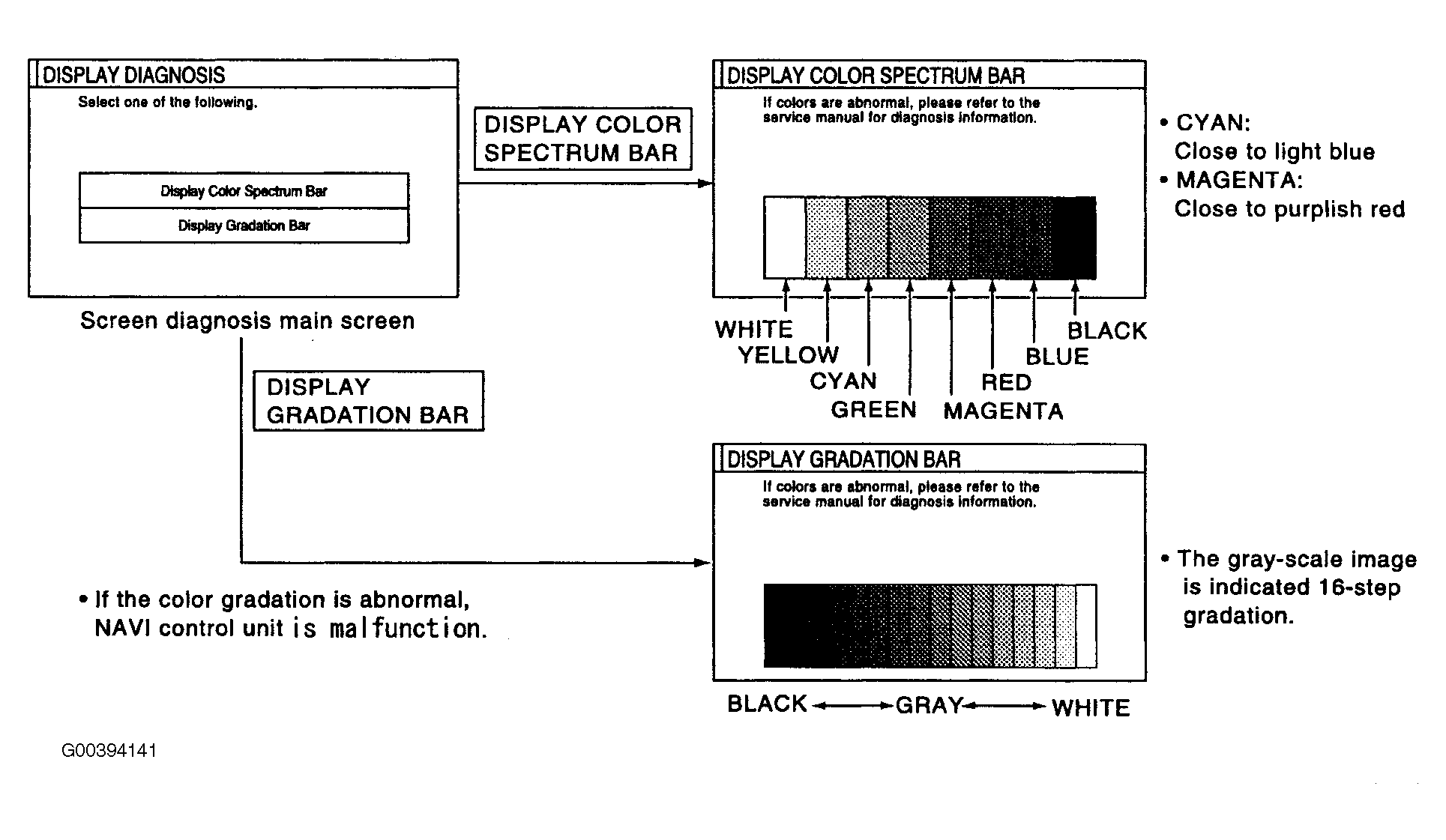

Display Diagnosis
WARNING: This page is about a different car, the 2004 Infiniti Q45. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
When DISPLAY COLOR SPECTRUM BAR screen is completed after "PREV" switch is pressed, the screen color changes once. This is normal.
- When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
R (red) signal error: Screen looks bluish
G (green) signal error: Screen looks yellowish
B (blue) signal error: Screen looks reddish
- When the color of the screen looks unusual, refer to COLOR OF RGB IMAGE IS NOT PROPER .
